RS PRO, 24V Output, 99.6W Output, 4.15A Output, Constant Voltage

View all LED Drivers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
874-3865
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Output Voltage

24V

Maximum Output Power

99.6W

Output Current

4.15A

Input Voltage

180 → 250 V ac

Operation

Constant Voltage

Dimming Operation

Triac

AC or DC Input Voltage

ac

IP Rating

IP66

Output

24 V dc @ 4.15 A

Current Rating

546 mA @ 220 V ac

Series

ELED-100-V

Voltage Rating

100 → 265V ac

Number of Outputs

2

Configuration

Enclosed

Primary Type

AC-DC

Standards Met

CE Certification, Compliance to EN55015, Compliance to EN61000-4-2EN61000-4-3, EN61000-3-2, EN61000-4-11, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61347-2-13, EN61547

COO (Country of Origin):
CN

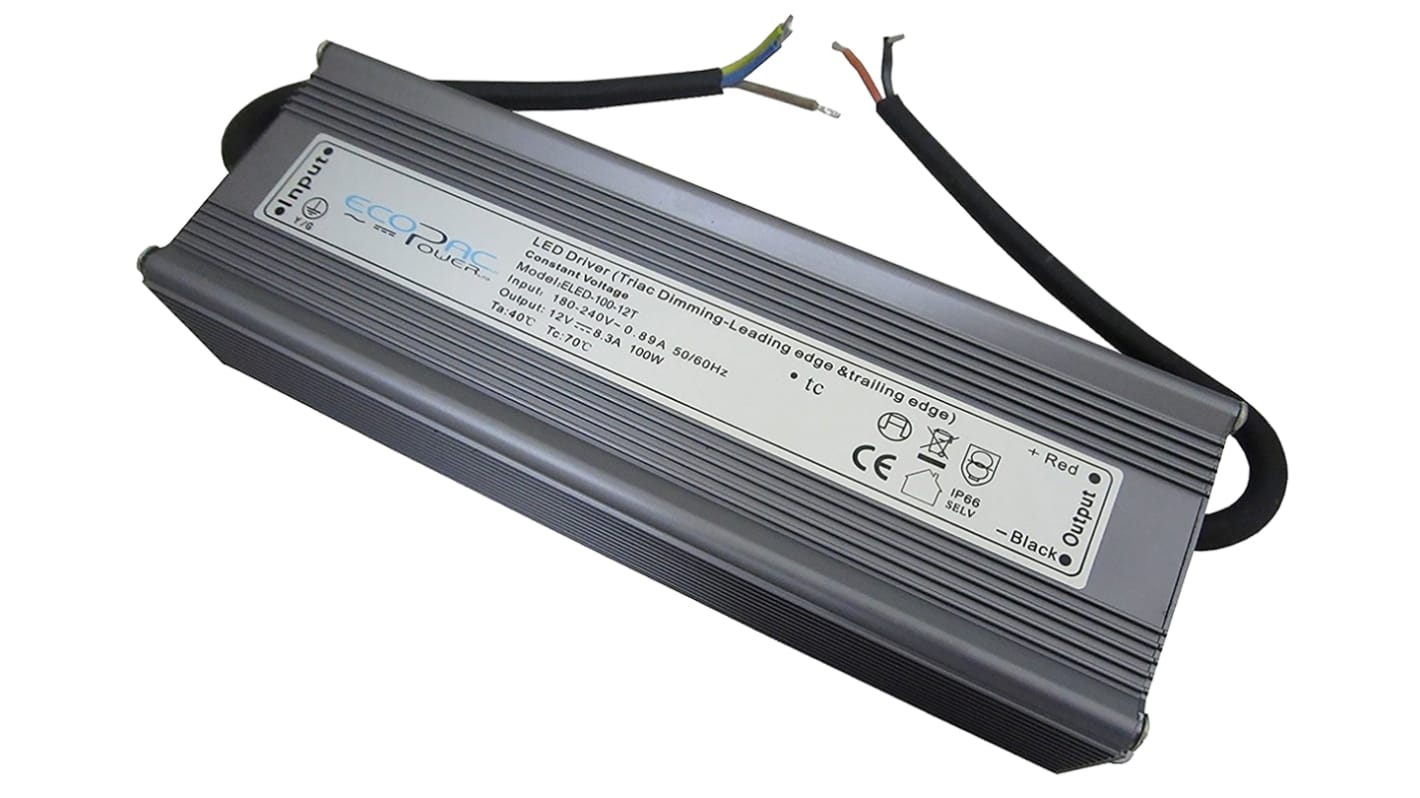

100W Constant Voltage Triac Dimmable LED Power Supply - ELED-100-T Series


The ELED-100-T is a series of AC-DC Triac dimmable, constant Voltage LED drivers. The ELED-100-T LED power supply is IP66 rated, it comes in a metal case and features a triac dimming function using leading edge dimmers. These LED drivers feature universal AC input of 180 to 250Vac and provide 4 different output constant voltage options. The ELED-100-T has up to 87% high efficiency, is cooled by free air convection and comes with short circuit, overload and over current protection. This constant Voltage, triac dimmable LED driver features built-in PFC function and complies with CE marking

Constant voltage design
Universal AC input 180-250Vac
IP66 rating for indoor or outdoor installations
Short circuit, Overload and Over current protection
Cooling by free air convection
Triac (mains) dimming using leading edge dimmer
Full dimming range from 5-100% load
Up to 87% efficiency

Standards

EN61347-1, EN61347-2-13
