RS PRO, 6V Output, 4W Output, 700mA Output, Constant Current
- RS Stock No.:
- 816-0166
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 816-0166
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Output Voltage | 6V | |
| Maximum Output Power | 4W | |
| Output Current | 700mA | |
| Input Voltage | 100 → 240 V ac | |
| Operation | Constant Current | |
| AC or DC Input Voltage | ac | |
| IP Rating | IP66 | |
| Voltage Rating | 100 → 240V ac | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Output Voltage 6V | ||
Maximum Output Power 4W | ||
Output Current 700mA | ||
Input Voltage 100 → 240 V ac | ||
Operation Constant Current | ||
AC or DC Input Voltage ac | ||
IP Rating IP66 | ||
Voltage Rating 100 → 240V ac | ||
- COO (Country of Origin):
- CN

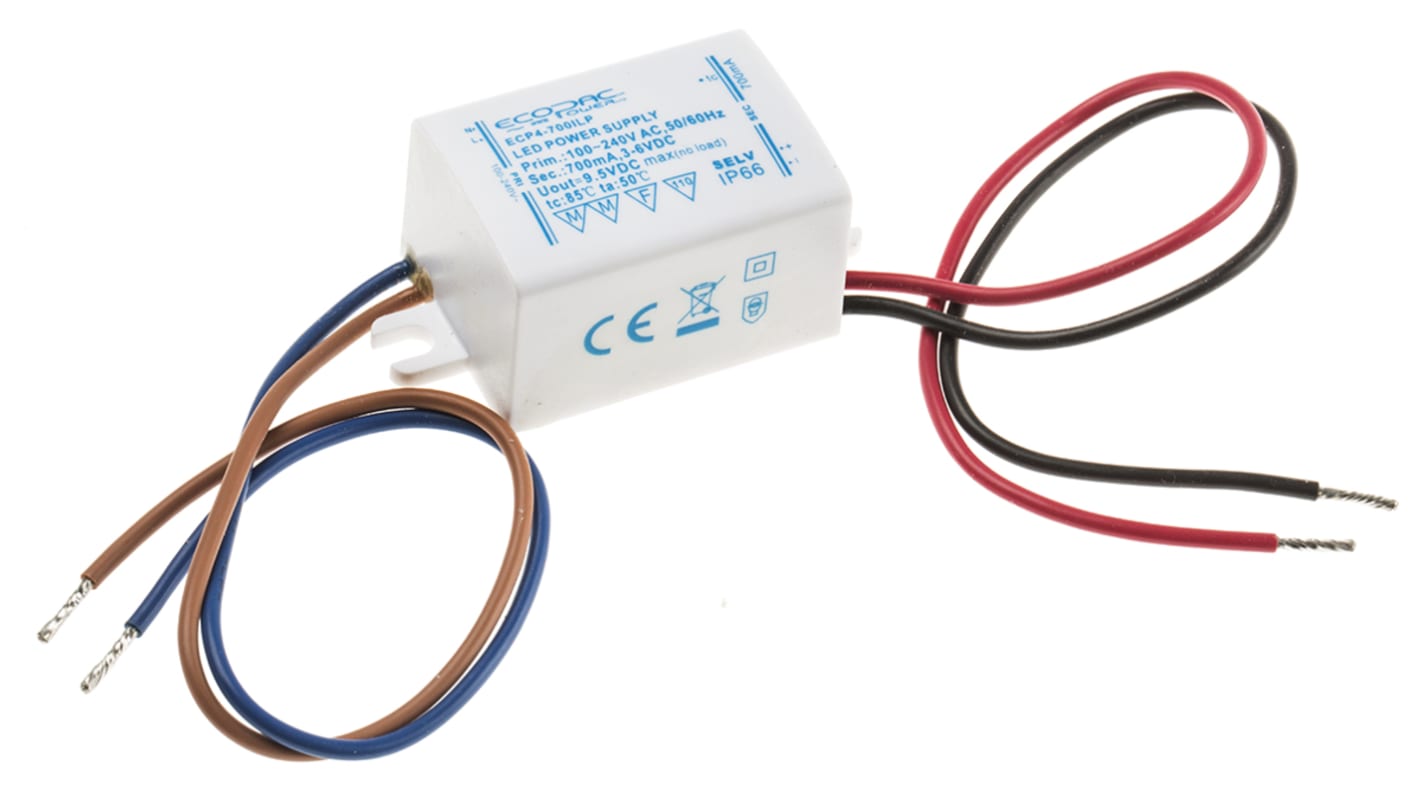

4W Constant Current LED Driver
The ECP4 is a series of fully encapsulated 4W, constant current LED drivers. The ECP4 LED power supply is IP66 rated, it comes in a compact and light weight plastic case. These LED drivers feature universal AC input of 100 to 240Vac and provide a variety of outputs including 350mA, 500mA and 700mA. The ECP4 is cooled by free air convection and comes with short circuit, overload and over temperature protection. This constant current LED driver is suitable for applications such as LED indoor lighting, LED decorative lighting and LED electrical display.
Input Voltage 100 – 240Vac
Input Frequency 50/ 60Hz
Output Power 4W
Fully encapsulated with IP66 rating
Short circuit, Overload and Over Temperature protection
Compact and light-weight plastic case
Input Frequency 50/ 60Hz
Output Power 4W
Fully encapsulated with IP66 rating
Short circuit, Overload and Over Temperature protection
Compact and light-weight plastic case
Standards
EN61347-1, EN61347-2-13
