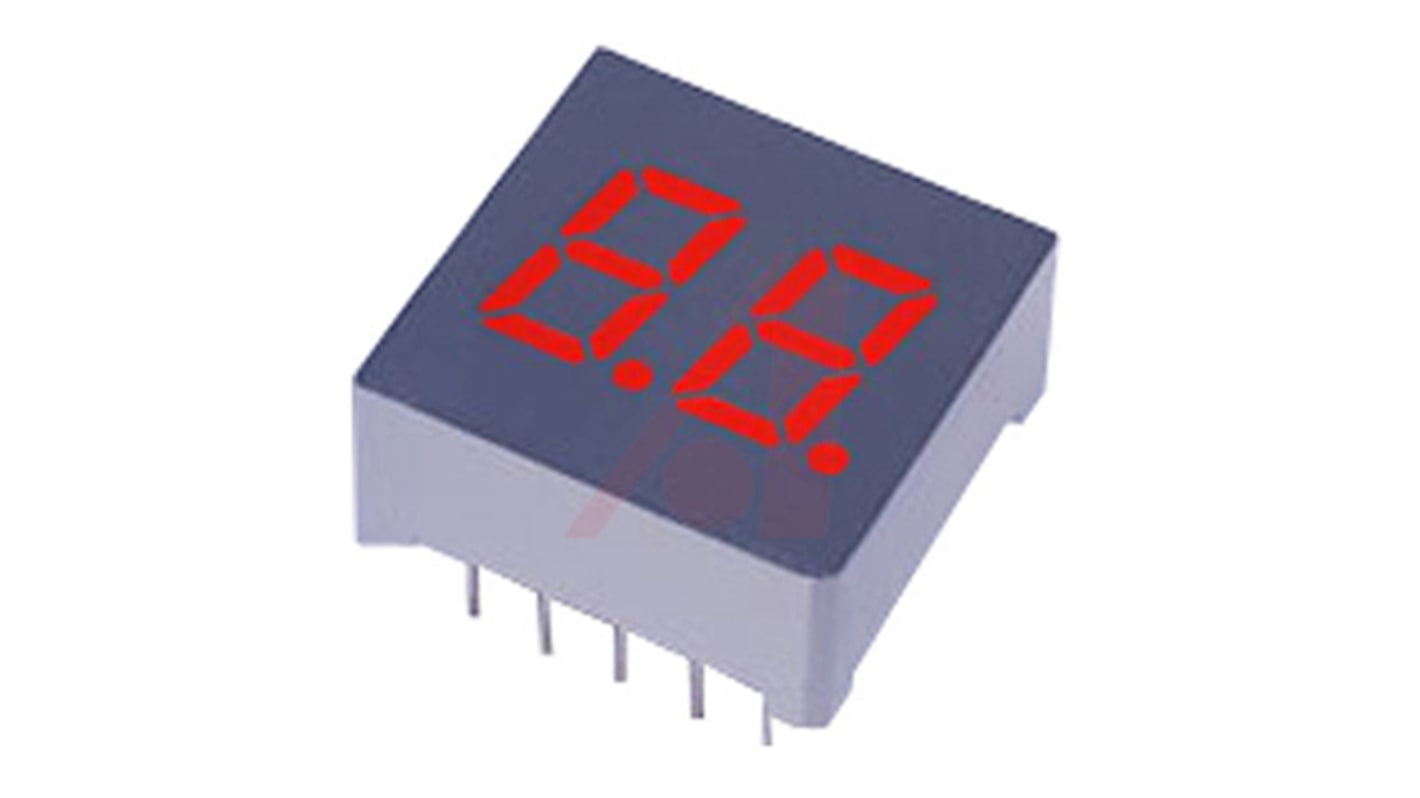

LDD-HTE304NI Lumex 2 Digit 7-Segment LED Display, CA Red 2000 mcd RH DP 7.6mm
- RS Stock No.:
- 888-5824
- Mfr. Part No.:
- LDD-HTE304NI
- Brand:
- Lumex
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 888-5824
- Mfr. Part No.:
- LDD-HTE304NI
- Brand:
- Lumex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumex | |
| Display Type | 7-Segment | |
| Number of Characters | 2 | |
| LED Colours | Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 635 nm | |
| Character Width | 4mm | |
| Character Height | 7.6mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Width | 15.5mm | |
| External Height | 15mm | |
| External Depth | 7.2mm | |
| External Dimensions | 15 x 15.5 x 7.2mm | |
| Luminous Intensity | 2000 mcd | |
| Colour of Face | Grey | |
| Power Dissipation | 105mW | |
| Forward Voltage | 2.5 V | |
| Operating Temperature Range | -40 → +105°C | |
| Decimal Orientation | Right Side | |
| Maximum Operating Temperature | +105°C | |
| Forward Current | 10mA | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Lumex | ||
Display Type 7-Segment | ||
Number of Characters 2 | ||
LED Colours Red | ||
Number of Segments 7 | ||
Dominant Wavelength 635 nm | ||
Character Width 4mm | ||
Character Height 7.6mm | ||
Common Connection Anode | ||
Mounting Type Through Hole | ||
External Width 15.5mm | ||
External Height 15mm | ||
External Depth 7.2mm | ||
External Dimensions 15 x 15.5 x 7.2mm | ||
Luminous Intensity 2000 mcd | ||
Colour of Face Grey | ||
Power Dissipation 105mW | ||
Forward Voltage 2.5 V | ||
Operating Temperature Range -40 → +105°C | ||
Decimal Orientation Right Side | ||
Maximum Operating Temperature +105°C | ||
Forward Current 10mA | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Lumex LDD-HT 7-Segment LED Displays
These InfoVue™ LED displays utilise Lumex’s QuasarBrite™ technology providing a bright, crisp display with a high temperature range of up to +105 °C. These SMD seven-segment LED displays are compatible with standard drivers and are ideally suited to a wide range of applications that require extreme heat conditions. They are available in 0.3 and 0.56" sizes, up to four digit layout, red or green and common anode or common cathode formats.
Potential applications standard and commercial appliances such as fryers, ovens, microwaves and dishwashers. Medical devices such as displays on portable and non-portable patient monitoring displays which could include defibrillators, heart and pulse monitors and sphygmomanometers. Industrial control devices including oil and gas flow metering and drive control displays. Military applications could include aircraft, ground vehicles, GPS and portable communication systems. Telecom equipment applications could also include displays on storage units, networks, switchboard units and routers.
Potential applications standard and commercial appliances such as fryers, ovens, microwaves and dishwashers. Medical devices such as displays on portable and non-portable patient monitoring displays which could include defibrillators, heart and pulse monitors and sphygmomanometers. Industrial control devices including oil and gas flow metering and drive control displays. Military applications could include aircraft, ground vehicles, GPS and portable communication systems. Telecom equipment applications could also include displays on storage units, networks, switchboard units and routers.
Number of digits: 2
Operating temperature range: -40 to +105 °C
Operating temperature range: -40 to +105 °C
