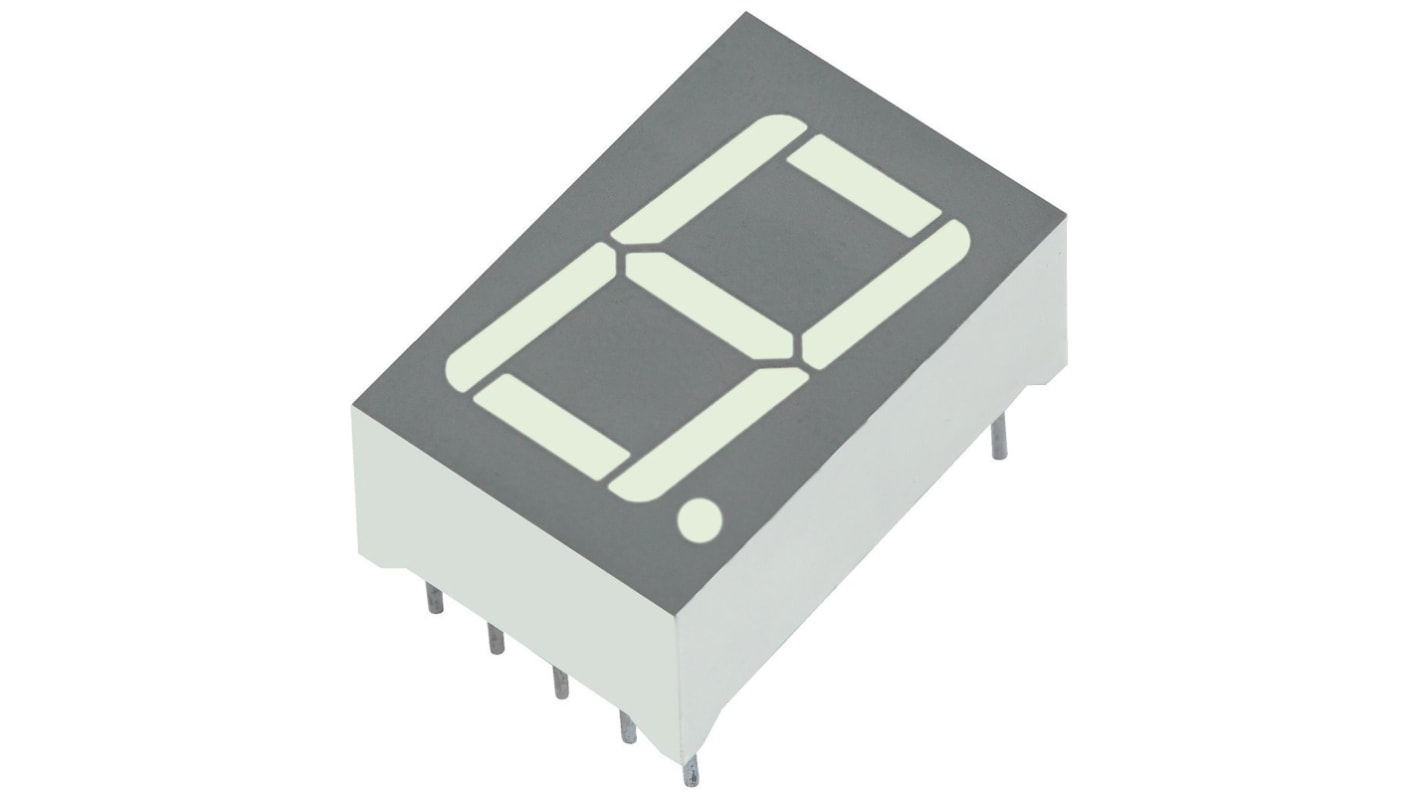

SA56-11SYKWA Kingbright 7-Segment LED Display, CA Yellow 160 mcd RH DP 19mm
- RS Stock No.:
- 877-1517
- Mfr. Part No.:
- SA56-11SYKWA
- Brand:
- Kingbright
Subtotal (1 pack of 4 units)*
£2.292
(exc. VAT)
£2.752
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 4 + | £0.573 | £2.29 |
*price indicative
- RS Stock No.:
- 877-1517
- Mfr. Part No.:
- SA56-11SYKWA
- Brand:
- Kingbright
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Display Type | 7-Segment | |
| Number of Characters | 1 | |
| LED Colours | Yellow | |
| Number of Segments | 7 | |
| Dominant Wavelength | 590 nm | |
| Character Width | 12.7mm | |
| Character Height | 19mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Depth | 12.7mm | |
| External Width | 19.1mm | |
| External Dimensions | 19.05 x 12.7 x 8mm | |
| External Height | 8mm | |
| Luminous Intensity | 160 mcd | |
| Colour of Face | Grey | |
| Forward Voltage | 2 V | |
| Power Dissipation | 75mW | |
| Minimum Operating Temperature | -40°C | |
| Decimal Orientation | Right Side | |
| Forward Current | 30mA | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Series | SA56 | |
Select all | ||
|---|---|---|
Brand Kingbright | ||
Display Type 7-Segment | ||
Number of Characters 1 | ||
LED Colours Yellow | ||
Number of Segments 7 | ||
Dominant Wavelength 590 nm | ||
Character Width 12.7mm | ||
Character Height 19mm | ||
Common Connection Anode | ||
Mounting Type Through Hole | ||
External Depth 12.7mm | ||
External Width 19.1mm | ||
External Dimensions 19.05 x 12.7 x 8mm | ||
External Height 8mm | ||
Luminous Intensity 160 mcd | ||
Colour of Face Grey | ||
Forward Voltage 2 V | ||
Power Dissipation 75mW | ||
Minimum Operating Temperature -40°C | ||
Decimal Orientation Right Side | ||
Forward Current 30mA | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Series SA56 | ||
- COO (Country of Origin):
- CN
Kingbright Single Digit, 12.7 to 14.2mm
A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
7-Segment LED Displays
