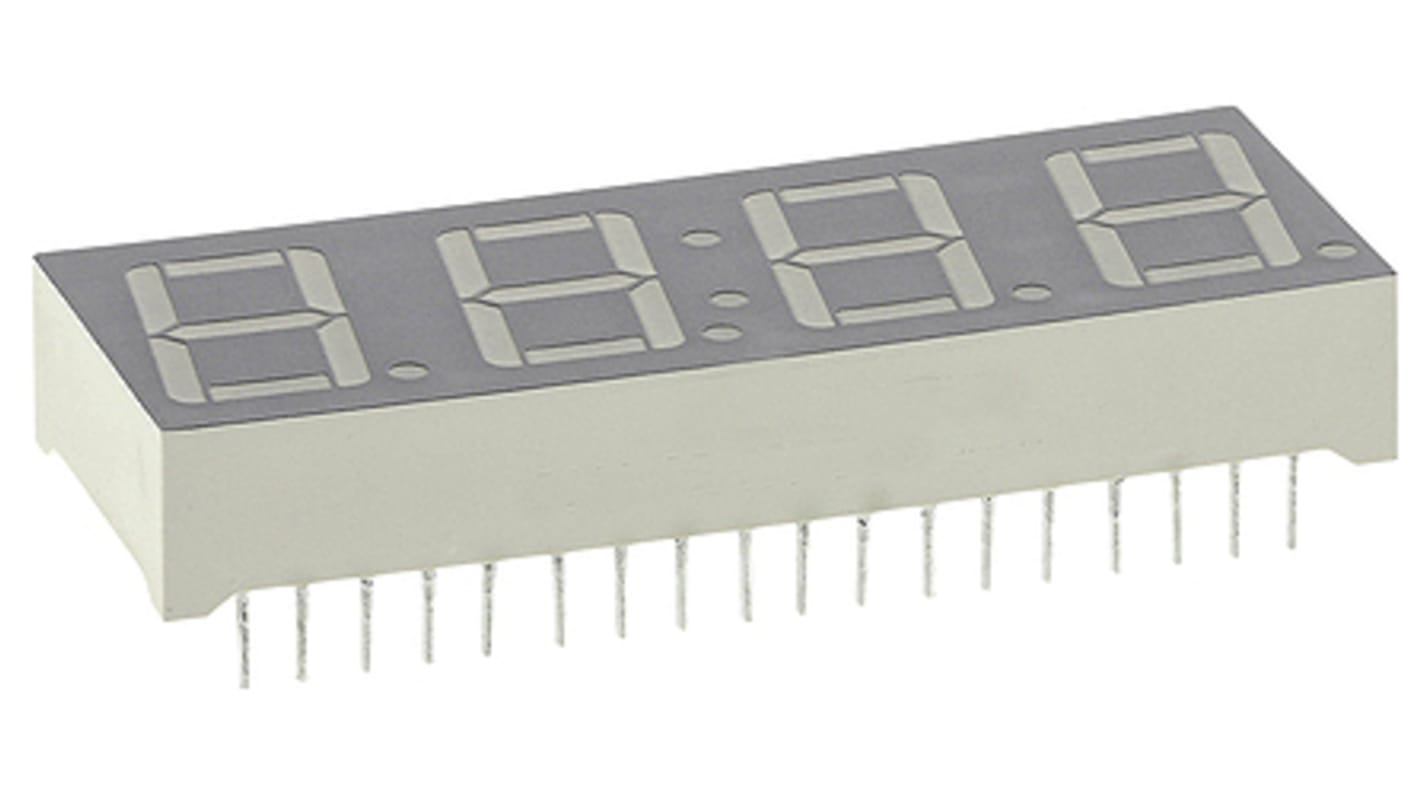

CC25-12SYKWA Kingbright 4 Digit 7-Segment LED Display, CC Yellow 11 mcd RH DP 6.2mm

View all LED Displays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
872-1998
Mfr. Part No.:
CC25-12SYKWA
Brand:
Kingbright
Find similar products by selecting one or more attributes.
Select all

Brand

Kingbright

Display Type

7-Segment

Number of Characters

4

LED Colours

Yellow

Number of Segments

7

Dominant Wavelength

590 nm

Character Width

3.5mm

Character Height

6.2mm

Common Connection

Cathode

Mounting Type

Through Hole

External Depth

11mm

External Dimensions

36 x 11 x 5mm

External Height

5mm

External Width

36mm

Luminous Intensity

11 mcd

Colour of Face

Grey

Power Dissipation

75 mW, 150 mW

Forward Voltage

2 V

Minimum Operating Temperature

-40°C

Decimal Orientation

Right Side

Series

CC25

Maximum Operating Temperature

+85°C

Forward Current

30 mA, 60 mA

Operating Temperature Range

-40 → +85°C

COO (Country of Origin):
CN

Kingbright Quad Digit 7-segment Display


A range of quad-digit 7-segment LED displays from Kingbright. In addition to the four digits plus decimal points, most of these displays feature a colon between the two central digits allowing them to correctly display time in 12 or 24-hour format. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
