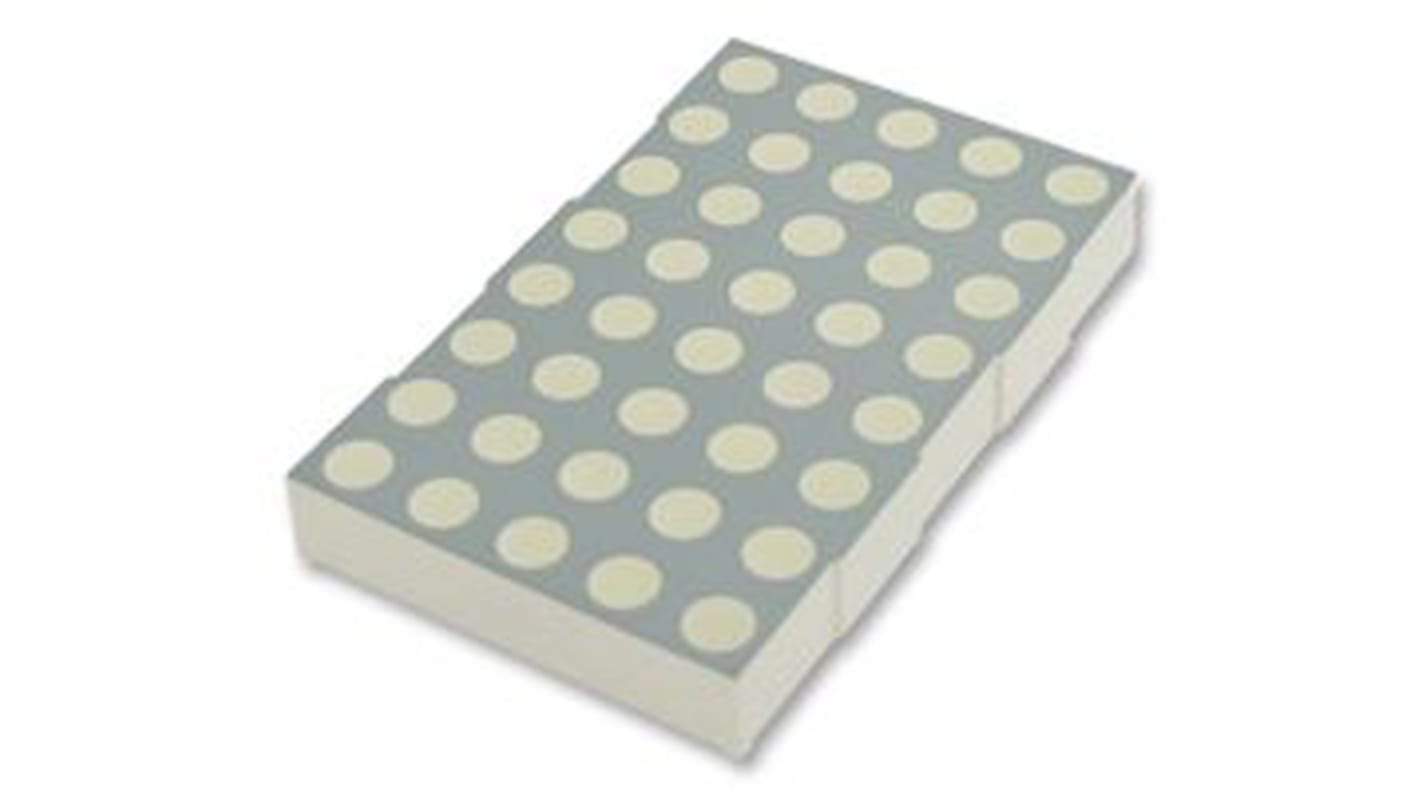

TBA24-22SURKCGKWA Kingbright Dot Matrix LED Display, CA 8 x 5 Dot Matrix Green, Red 42000 ucd, 150000 ucd 61mm
- RS Stock No.:
- 871-4760
- Mfr. Part No.:
- TBA24-22SURKCGKWA
- Brand:
- Kingbright
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 871-4760
- Mfr. Part No.:
- TBA24-22SURKCGKWA
- Brand:
- Kingbright
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Display Type | Dot Matrix | |
| LED Colours | Green, Red | |
| Dominant Wavelength | 570 / 630 nm | |
| Character Width | 38mm | |
| Character Height | 61mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Depth | 8.9mm | |
| External Dimensions | 38.1 x 60.8 x 8.9mm | |
| External Height | 60.8mm | |
| External Width | 38.1mm | |
| Luminous Intensity | 42000 ucd, 150000 ucd | |
| Colour of Face | Grey | |
| Forward Voltage | 2.1 V | |
| Power Dissipation | 75mW | |
| Dots Wide | 5 | |
| Dots High | 8 | |
| Dot Matrix Format | 5 x 8 | |
| Dot Matrix Dimensions | 8 x 5 | |
| Minimum Operating Temperature | -40°C | |
| Forward Current | 30mA | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -40 → +85°C | |
| Series | TBA24 | |
