- RS Stock No.:
- 871-4671
- Mfr. Part No.:
- TA03-11GT
- Brand:
- Kingbright
Discontinued product
- RS Stock No.:
- 871-4671
- Mfr. Part No.:
- TA03-11GT
- Brand:
- Kingbright
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

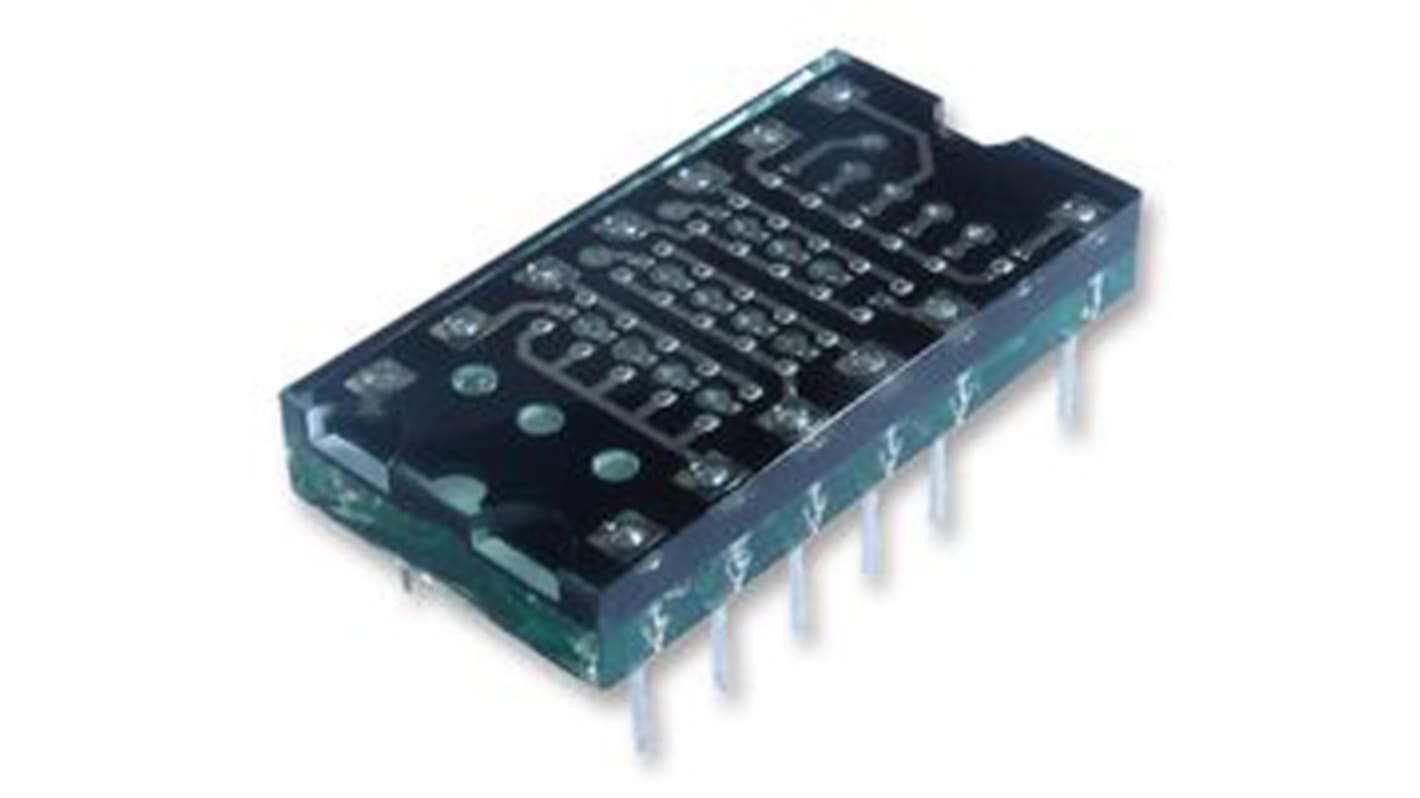

Kingbright Dot Matrix LED Displays 5x7 - 7.62mm
This family of dot matrix displays, from Kingbright, are available in a variety of single colour options. They have a 5x7 dot matrix with a 0.3 inch matrix height. They offer low current operation and are mechanically rugged.
7.62 mm displays
5x7 dot matrix
0.3 inch matrix height
Single colour
5x7 dot matrix
0.3 inch matrix height
Single colour
Dot Matrix LED Displays
Specifications
Attribute | Value |
---|---|
Display Type | Dot Matrix |
LED Colours | Green |
Dominant Wavelength | 568 nm |
Character Width | 6mm |
Character Height | 8.9mm |
Common Connection | Anode |
Mounting Type | Through Hole |
External Depth | 18.5mm |
External Height | 3.1mm |
External Width | 9.8mm |
External Dimensions | 9.8 x 18.5 x 3.1mm |
Luminous Intensity | 8.3 mcd |
Colour of Face | Grey |
Power Dissipation | 62.5mW |
Forward Voltage | 2.2 V |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Forward Current | 25mA |
Maximum Operating Temperature | +85°C |
Series | TA03 |
Dot Matrix Dimensions | 7 x 5 |
Dots High | 7 |
Dot Matrix Format | 5 x 7 |
Dots Wide | 5 |
