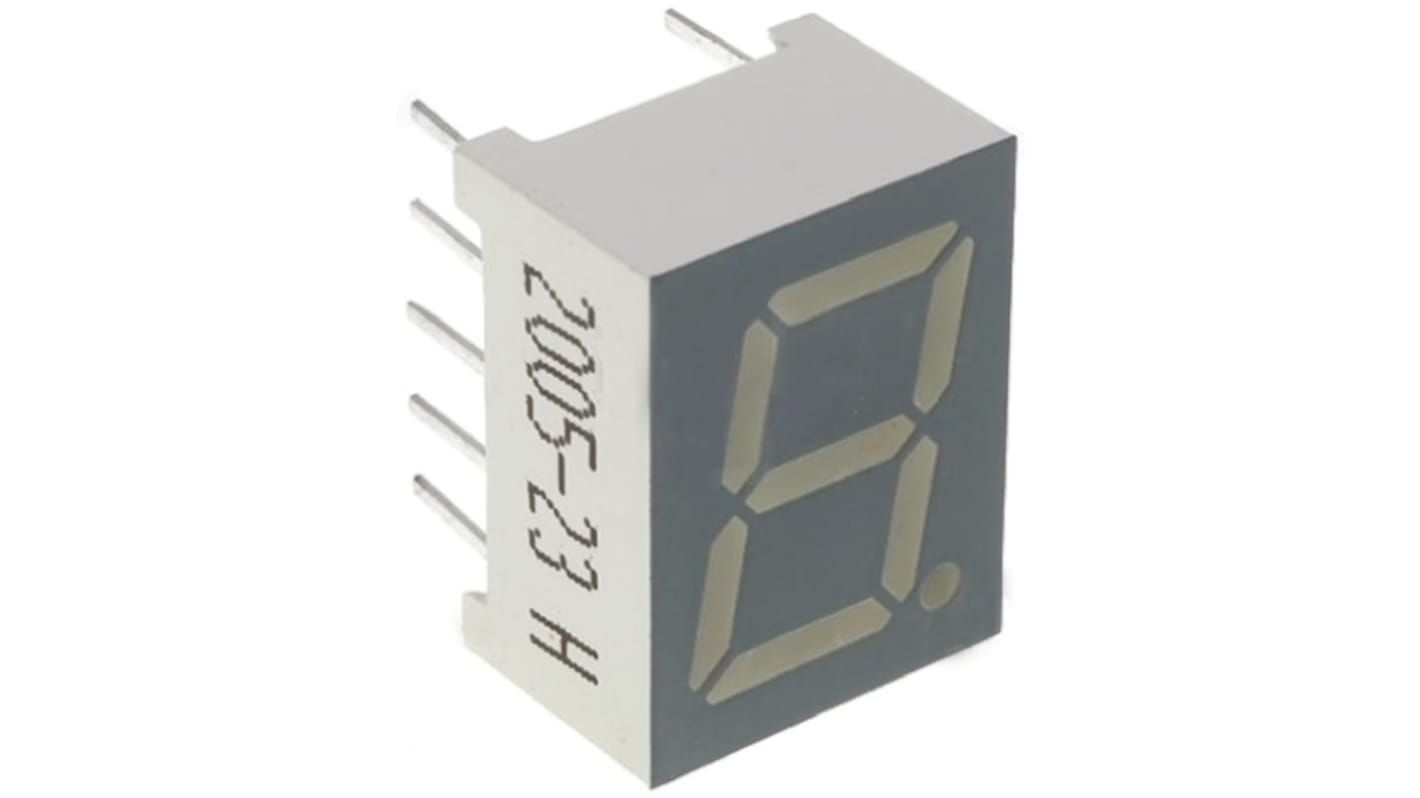

SC39-11PBWA Kingbright 7-Segment LED Display, CC Blue 7.8 mcd RH DP 10mm

  • RS Stock No. 616-4649
  • Mfr. Part No. SC39-11PBWA
  • Brand Kingbright
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Kingbright Single Digit, 9.1 to 10.9mm

A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant

Note

A5

7-Segment LED Displays

Specifications
Attribute Value
Display Type 7-Segment
Number of Characters 1
LED Colours Blue
Number of Segments 7
Dominant Wavelength 470 nm
Character Width 6.2mm
Character Height 10mm
Common Connection Cathode
Mounting Type Through Hole
External Width 10mm
External Depth 7mm
External Height 13mm
External Dimensions 13 x 10 x 7mm
Luminous Intensity 7.8 mcd
Colour of Face Grey
Power Dissipation 120mW
Forward Current 30mA
Operating Temperature Range -40 → +85°C
Maximum Operating Temperature +85°C
Forward Voltage 3.2 V
Minimum Operating Temperature -40°C
Decimal Orientation Right Side
137 In stock for FREE next working day delivery
Price Each
£ 4.91
(exc. VAT)
£ 5.89
(inc. VAT)
Units
Per unit
1 - 9
£4.91
10 - 49
£4.61
50 - 99
£4.18
100 - 249
£4.05
250 +
£4.00
