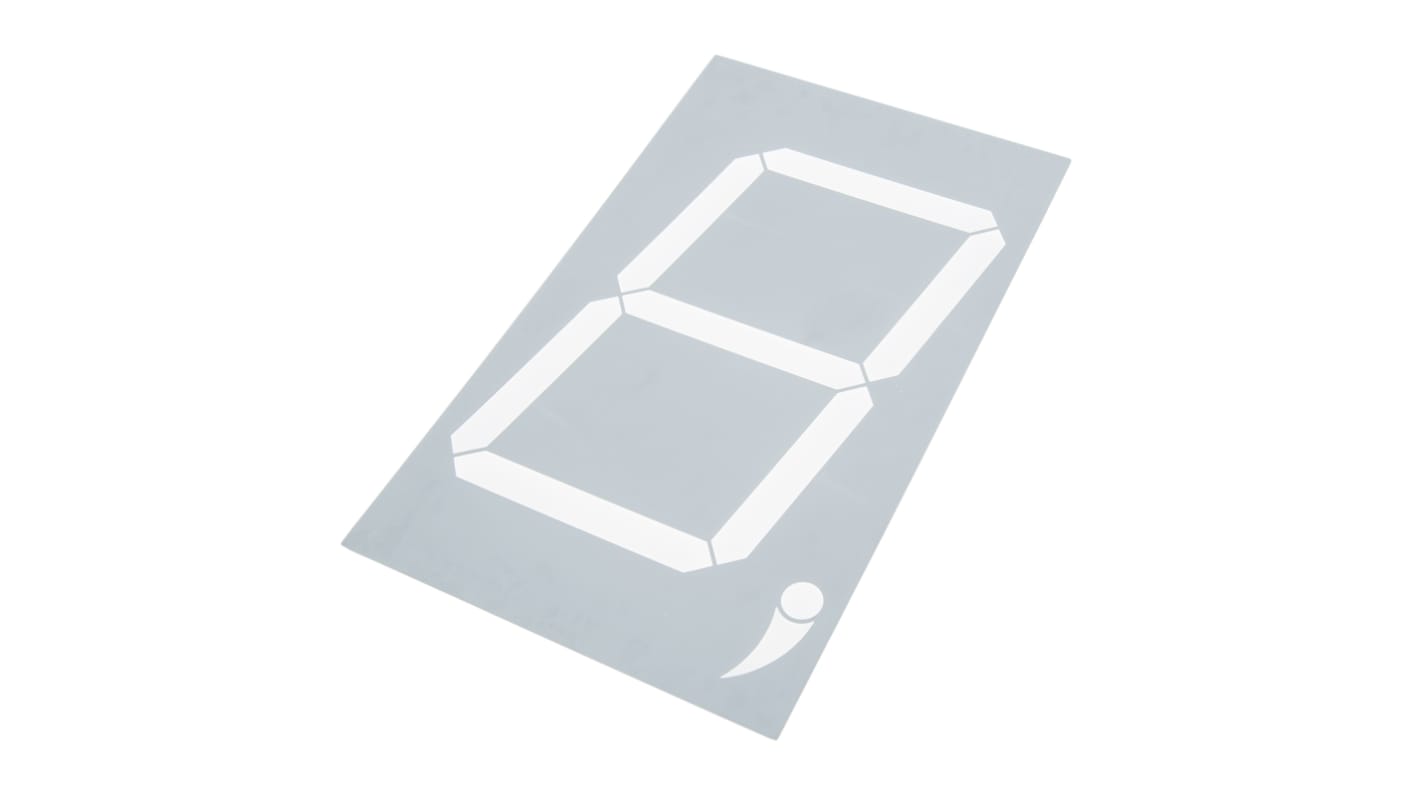

SC50-31SRWA Kingbright 7-Segment LED Display, CC Red 50 mcd RH DP 127mm
- RS Stock No.:
- 438-7913
- Mfr. Part No.:
- SC50-31SRWA
- Brand:
- Kingbright
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 438-7913
- Mfr. Part No.:
- SC50-31SRWA
- Brand:
- Kingbright
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Display Type | 7-Segment | |
| Number of Characters | 1 | |
| LED Colours | Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 640 nm | |
| Character Width | 76mm | |
| Character Height | 127mm | |
| Common Connection | Cathode | |
| Mounting Type | Through Hole | |
| External Width | 108mm | |
| External Dimensions | 180.2 x 108 x 15.6mm | |
| External Depth | 15.6mm | |
| External Height | 180.2mm | |
| Luminous Intensity | 50 mcd | |
| Colour of Face | Grey | |
| Power Dissipation | 100mW | |
| Forward Voltage | 1.85 V | |
| Operating Temperature Range | -40 → +85°C | |
| Forward Current | 30mA | |
| Maximum Operating Temperature | +85°C | |
| Decimal Orientation | Right Side | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Kingbright | ||
Display Type 7-Segment | ||
Number of Characters 1 | ||
LED Colours Red | ||
Number of Segments 7 | ||
Dominant Wavelength 640 nm | ||
Character Width 76mm | ||
Character Height 127mm | ||
Common Connection Cathode | ||
Mounting Type Through Hole | ||
External Width 108mm | ||
External Dimensions 180.2 x 108 x 15.6mm | ||
External Depth 15.6mm | ||
External Height 180.2mm | ||
Luminous Intensity 50 mcd | ||
Colour of Face Grey | ||
Power Dissipation 100mW | ||
Forward Voltage 1.85 V | ||
Operating Temperature Range -40 → +85°C | ||
Forward Current 30mA | ||
Maximum Operating Temperature +85°C | ||
Decimal Orientation Right Side | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
Kingbright Single Digit, 101 & 127mm
A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
