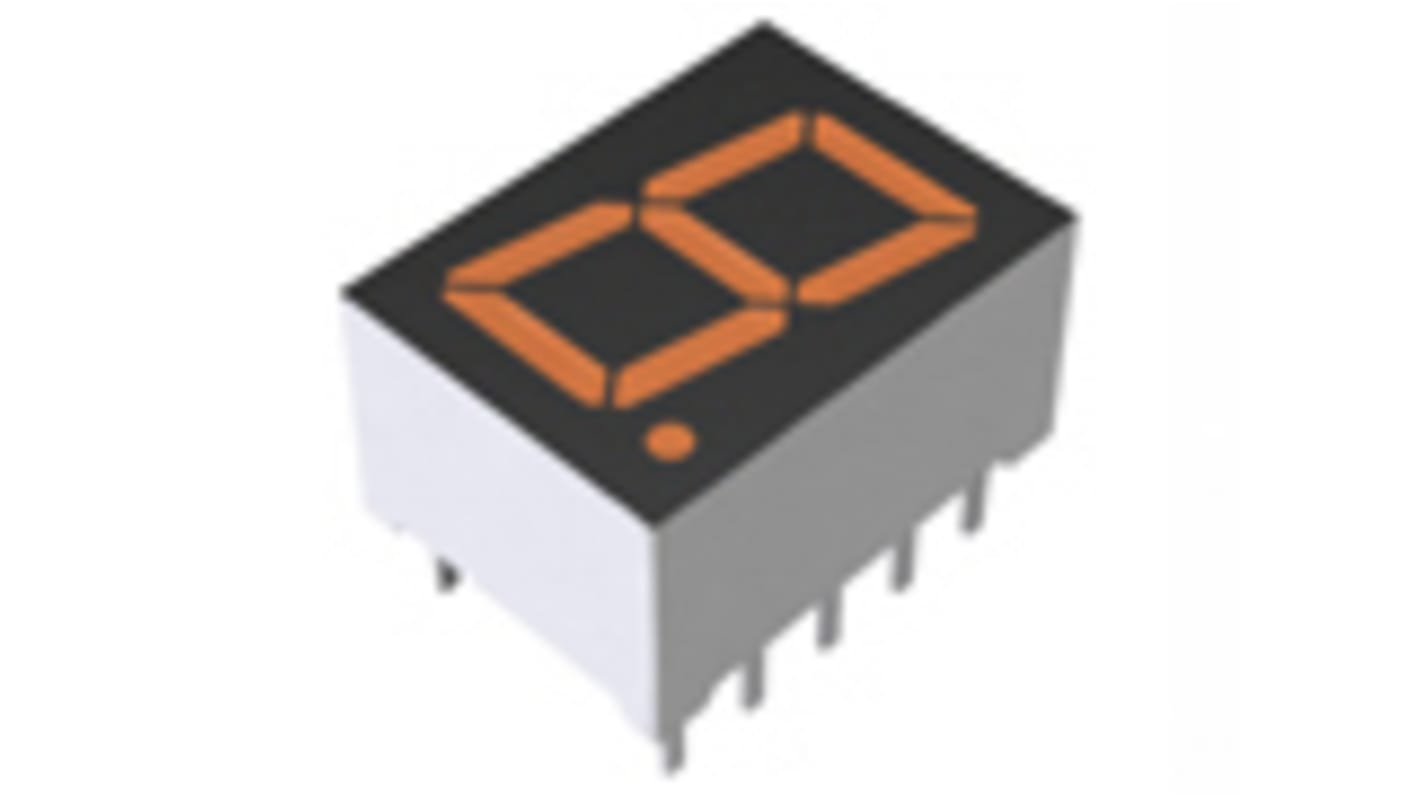

ROHM 1 LED LED Display Anode Orange, Yellow, Red, Green 250mcd Right Side 10.2 mm
- RS Stock No.:
- 168-2350
- Mfr. Part No.:
- LAP-401DD
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 168-2350
- Mfr. Part No.:
- LAP-401DD
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Display Type | LED | |
| Product Type | LED Display | |
| Number of Characters | 1 | |
| LED Colour | Orange, Yellow, Red, Green | |
| Number of Segments | 7 | |
| Dominant Wavelength | 605nm | |
| Character Width | 5.6mm | |
| Character Height | 10.2mm | |
| Common Connection | Anode | |
| Mount Type | Through Hole | |
| External Depth | 13mm | |
| External Height | 7mm | |
| External Width | 9.6mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 75°C | |
| Luminous Intensity | 250mcd | |
| Standards/Approvals | RoHS | |
| Colour of Face | Black | |
| Power Dissipation | 448mW | |
| Forward Voltage | 2.6V | |
| Decimal Orientation | Right Side | |
| Forward Current | 20mA | |
| Series | LAP-401D | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Display Type LED | ||
Product Type LED Display | ||
Number of Characters 1 | ||
LED Colour Orange, Yellow, Red, Green | ||
Number of Segments 7 | ||
Dominant Wavelength 605nm | ||
Character Width 5.6mm | ||
Character Height 10.2mm | ||
Common Connection Anode | ||
Mount Type Through Hole | ||
External Depth 13mm | ||
External Height 7mm | ||
External Width 9.6mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 75°C | ||
Luminous Intensity 250mcd | ||
Standards/Approvals RoHS | ||
Colour of Face Black | ||
Power Dissipation 448mW | ||
Forward Voltage 2.6V | ||
Decimal Orientation Right Side | ||
Forward Current 20mA | ||
Series LAP-401D | ||
Luminous intensity is enhanced about 2∼10 times compared with conventional numerical LED displays by use of 4-element AlGaInP dies.
Character Height is 8mm
DIP Type
Anode Common Type
High Brightness and Low Electric Power Consumption
