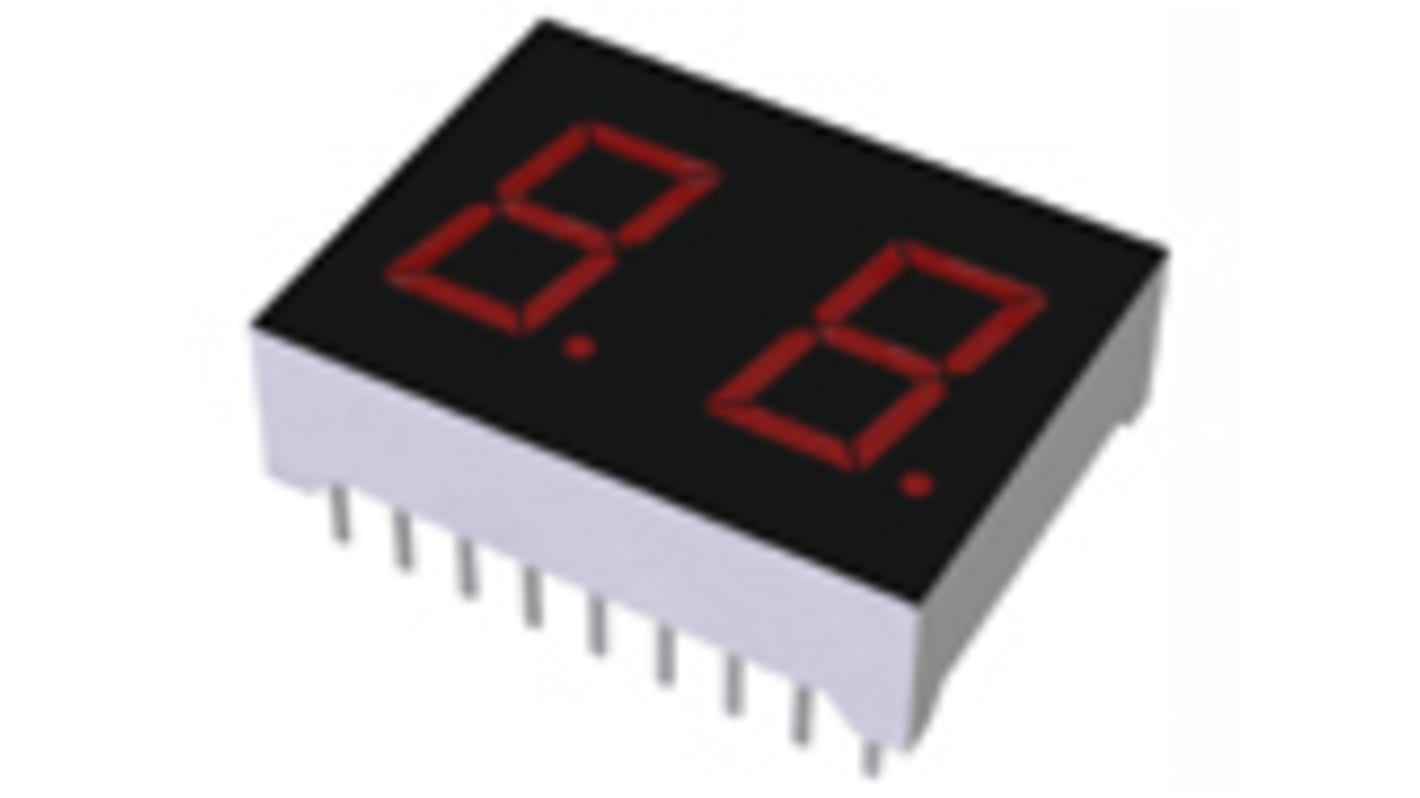

LB-402VD ROHM 2 Digit LED LED Display, CA Red 16 mcd RH DP 10.2mm
- RS Stock No.:
- 168-2309
- Mfr. Part No.:
- LB-402VD
- Brand:
- ROHM
Discontinued
- RS Stock No.:
- 168-2309
- Mfr. Part No.:
- LB-402VD
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Display Type | LED | |
| Number of Characters | 2 | |
| LED Colours | Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 650 nm | |
| Character Width | 5.6mm | |
| Character Height | 10.2mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Dimensions | 24 x 18 x 7mm | |
| External Width | 24mm | |
| External Depth | 18mm | |
| External Height | 7mm | |
| Luminous Intensity | 16 mcd | |
| Colour of Face | Black | |
| Forward Voltage | 2.8 V | |
| Power Dissipation | 640mW | |
| Forward Current | 15mA | |
| Maximum Operating Temperature | +75°C | |
| Operating Temperature Range | -25 → +75°C | |
| Minimum Operating Temperature | -25°C | |
| For Use With | General Electronic Equipments | |
| Decimal Orientation | Right Side | |
| Series | LB-402DN | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Display Type LED | ||
Number of Characters 2 | ||
LED Colours Red | ||
Number of Segments 7 | ||
Dominant Wavelength 650 nm | ||
Character Width 5.6mm | ||
Character Height 10.2mm | ||
Common Connection Anode | ||
Mounting Type Through Hole | ||
External Dimensions 24 x 18 x 7mm | ||
External Width 24mm | ||
External Depth 18mm | ||
External Height 7mm | ||
Luminous Intensity 16 mcd | ||
Colour of Face Black | ||
Forward Voltage 2.8 V | ||
Power Dissipation 640mW | ||
Forward Current 15mA | ||
Maximum Operating Temperature +75°C | ||
Operating Temperature Range -25 → +75°C | ||
Minimum Operating Temperature -25°C | ||
For Use With General Electronic Equipments | ||
Decimal Orientation Right Side | ||
Series LB-402DN | ||
- COO (Country of Origin):
- JP
2-digit displays are available in packages of character height 7.62mm, 10.16mm, 13mm and 14.3mm. 2-digit displays in package of character height 14.3mm are available featuring AlGaInP-die type to meet the market needs of high-brightness/low current consumption, as well blue-color emission type in lineup.
Character Height is 10.16mm
DIP Type
Anode Common Type
DIP Type
Anode Common Type
