L-835/2SYDTK Kingbright Light Bar LED Display, Yellow 120 mcd

  • RS Stock No. 146-1502
  • Mfr. Part No. L-835/2SYDTK
  • Brand Kingbright
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

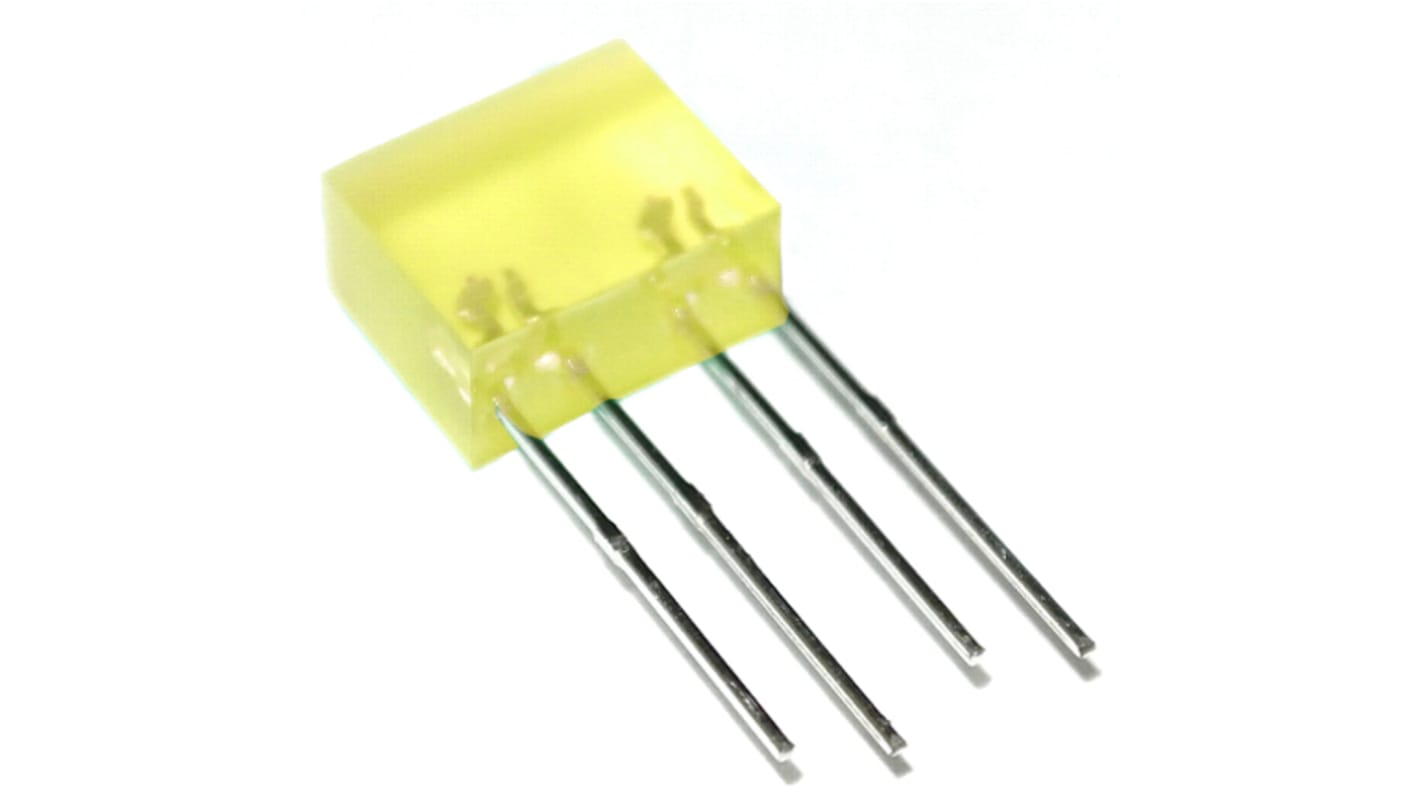

LED Light Bars 5 x 10 mm, Kingbright

This family of LED light bars, from Kingbright, are available in a range of single colour options. A colour diffused lens enables these LED light bars to offer a uniform light output. They can be mounted easily onto PCBs or industry standard sockets. The L835/2 LED light bars are flush mountable.

Features of the L835/2 LED light bars:
Dimensions: 5 x 10 mm
Variety of colours
High on/off contrast
Mechanically rugged

Kingbright Light Bar Arrays

Specifications
Attribute Value
Display Type Light Bar
LED Colours Yellow
Number of Segments 1
Mounting Type Through Hole
External Height 8mm
External Depth 5mm
External Width 10mm
External Dimensions 10 x 5 x 8mm
Luminous Intensity 120 mcd
Colour of Face Yellow
Maximum Operating Temperature +85°C
Operating Temperature Range -40 → +85°C
Minimum Operating Temperature -40°C
Available to back order for despatch when stock is available
Price Each (In a Tray of 400)
£ 0.324
(exc. VAT)
£ 0.389
(inc. VAT)
Units
Per unit
Per Tray*
400 - 400
£0.324
£129.60
800 +
£0.306
£122.40
*price indicative
