STMicroelectronics STEVAL-ILL055V1, STEVAL LED Driver Evaluation Board for HVLED815PF for High Power LED
- RS Stock No.:
- 196-1802
- Mfr. Part No.:
- STEVAL-ILL055V1
- Brand:
- STMicroelectronics
2 In stock - FREE next working day delivery available
Added
Price Each
£53.46
(exc. VAT)
£64.15
(inc. VAT)
| Units | Per unit |
| 1 - 1 | £53.46 |
| 2 - 4 | £52.05 |
| 5 - 9 | £50.72 |
| 10 + | £49.45 |
- RS Stock No.:
- 196-1802
- Mfr. Part No.:
- STEVAL-ILL055V1
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

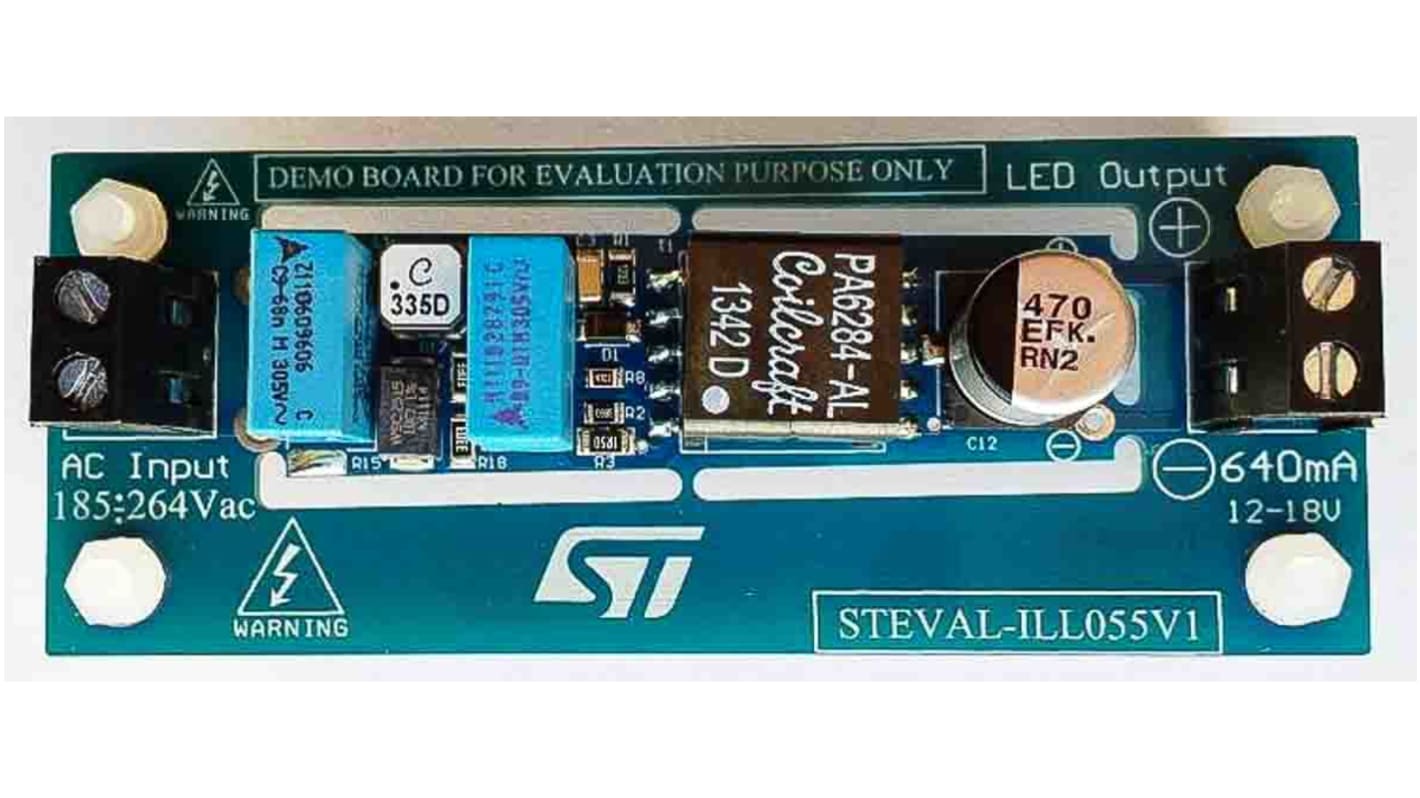

The STEVAL-ILL055V1 is an isolated SMPS designed in high power factor flyback topology. It generates a 640 mA nominal output current, delivering up to 11 W of output power and provides a cost-effective and space-saving solution. This product evaluation board is based on the HVLED815PF, a monolithic converter integrating both an 800 V avalanche-rugged MOSFET and PWM controller in a single package.
Input:
Voltage: 185 – 264 Vac
Frequency: 45 – 55 Hz
Output:
Current: 640 mA
Voltage: 6 LED module (blue or white)
Power factor
> 0.9
Efficiency
84%
PCB type and size:
FR4
Double layer
Copper thickness: 35 μm
LED driver size: 17 x 55 mm
Board size: 34 x 88 mm
Isolation
Isolated 2 kV / 4 mm isolation gap
Voltage: 185 – 264 Vac
Frequency: 45 – 55 Hz
Output:
Current: 640 mA
Voltage: 6 LED module (blue or white)
Power factor
> 0.9
Efficiency
84%
PCB type and size:
FR4
Double layer
Copper thickness: 35 μm
LED driver size: 17 x 55 mm
Board size: 34 x 88 mm
Isolation
Isolated 2 kV / 4 mm isolation gap
Specifications
Attribute | Value |
|---|---|
| LED Technology | LED Driver |
| Kit Classification | Evaluation Board |
| For Use With | High Power LED |
| Featured Device | HVLED815PF |
| Kit Name | STEVAL |
