Maxim Integrated MAX16820EVKIT+, LED Controller Evaluation Board for MAX16820
- RS Stock No.:
- 192-1773
- Mfr. Part No.:
- MAX16820EVKIT+
- Brand:
- Maxim Integrated
Discontinued
- RS Stock No.:
- 192-1773
- Mfr. Part No.:
- MAX16820EVKIT+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| LED Technology | LED Controller | |
| Kit Classification | Evaluation Board | |
| Featured Device | MAX16820 | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
LED Technology LED Controller | ||
Kit Classification Evaluation Board | ||
Featured Device MAX16820 | ||
- COO (Country of Origin):
- US
MAX16820 Evaluation Kit

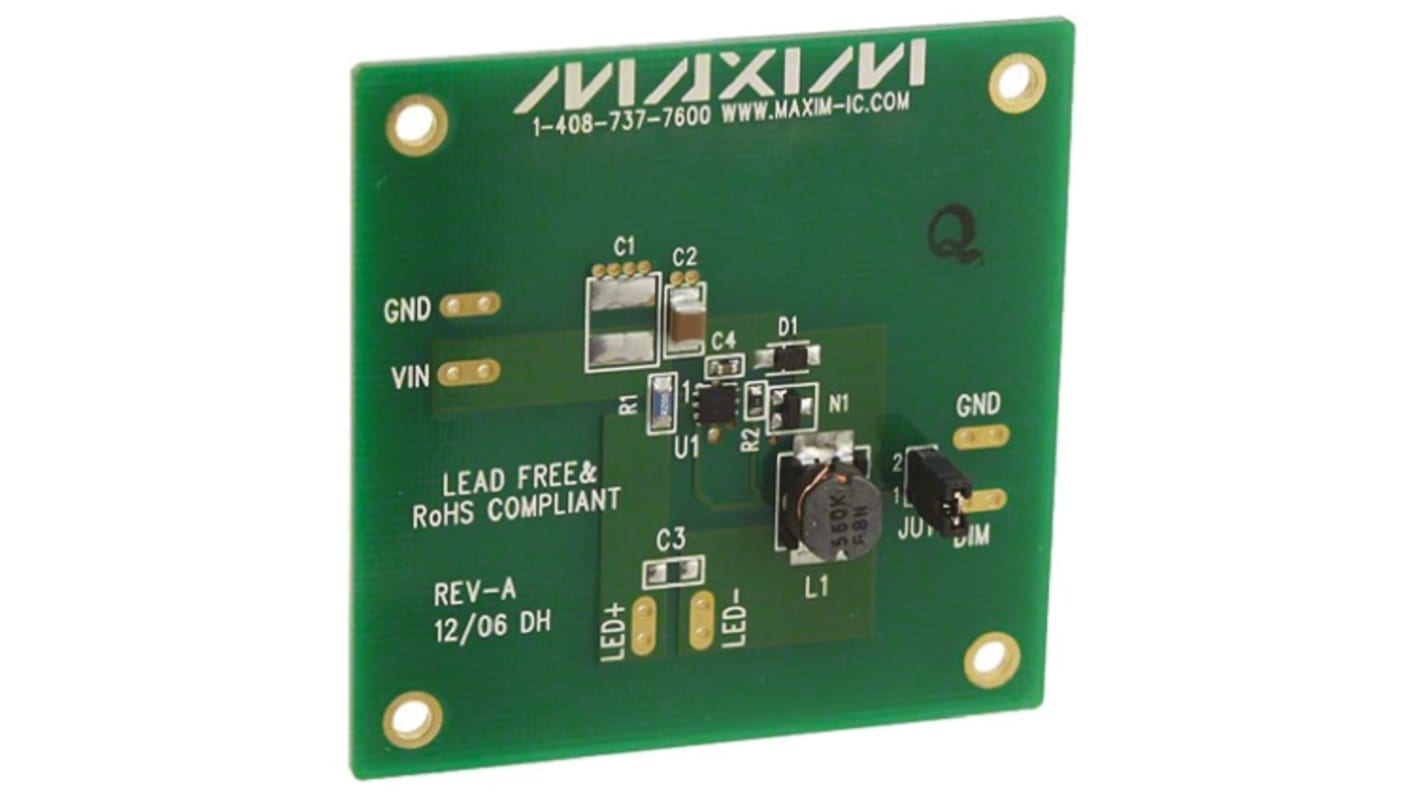

The MAX16820 Evaluation Kit demonstrates a step-down, constant-current, hysteretic controlled switching regulator for driving high-brightness LEDs (HB LEDs) using the MAX16820 controller IC. This kit is configured to supply an average output LED current of 1A, and operates from a 5V to 28V supply.
The kit eases evaluation of the MAX16820 dedicated Pulse-Width-Modulation (PWM) dimming control and undervoltage lockout (UVLO) features.
The kit eases evaluation of the MAX16820 dedicated Pulse-Width-Modulation (PWM) dimming control and undervoltage lockout (UVLO) features.
Operates from a 5V to 28V, 1.5A Supply
Constant LED Current Control
1A Average LED Current
PWM Dimming Control Up to 20kHz
Fully Assembled and Tested
Lighting applications in Architectural, Industrial, Ambient, Automotive, and Emergency
Constant LED Current Control
1A Average LED Current
PWM Dimming Control Up to 20kHz
Fully Assembled and Tested
Lighting applications in Architectural, Industrial, Ambient, Automotive, and Emergency
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
LED Drivers, Maxim Integrated
