STMicroelectronics STEVAL-ILL085V1, Wide Input and Wide Output Voltage LED Driver LED Driver Evaluation Board for

View all LED Development Tools
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
164-6941
Mfr. Part No.:
STEVAL-ILL085V1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

LED Technology

LED Driver

Kit Classification

Evaluation Board

For Use With

LED Driver

Featured Device

HVLED001A

Kit Name

Wide Input and Wide Output Voltage LED Driver

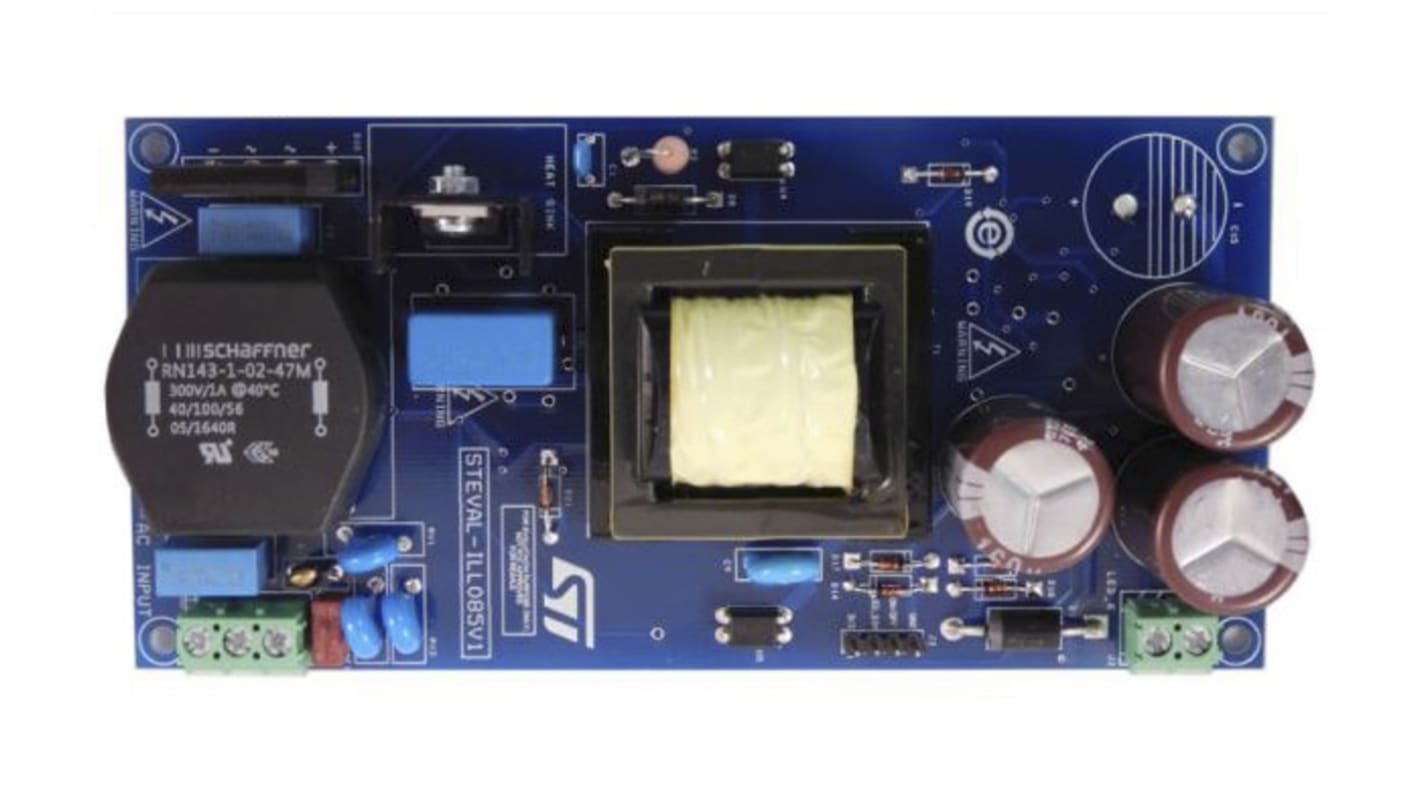

The STEVAL-ILL085V1 board is a constant current LED driver with high power factor and low input current THD for wide range input voltage. It uses the HVLED001A power management IC for power quality improvement. This board includes other discrete power devices produced by STMicroelectronics, including MOSFETs (STP21N90K5), diodes (STTH3L06 and STTH1L06), transil (P6KE400), CV / CC controller (TSM101) and LDO (LM2931AD33R). The board works on 60 V to 105 V LED voltage and 700 mA constant current with ± 2% current regulation.

AC input voltage range: 90 V to 300 V
LED voltage / current: 60 V-105 V / 700 mA
Constant LED current: 700 mA ± 2%
Power factor: > 0.95
Input current THD: < 10%
Standby consumption: < 0.5 W
Open-circuit and short-circuit protection
Provision for smart features: ON / OFF / DIMMING
