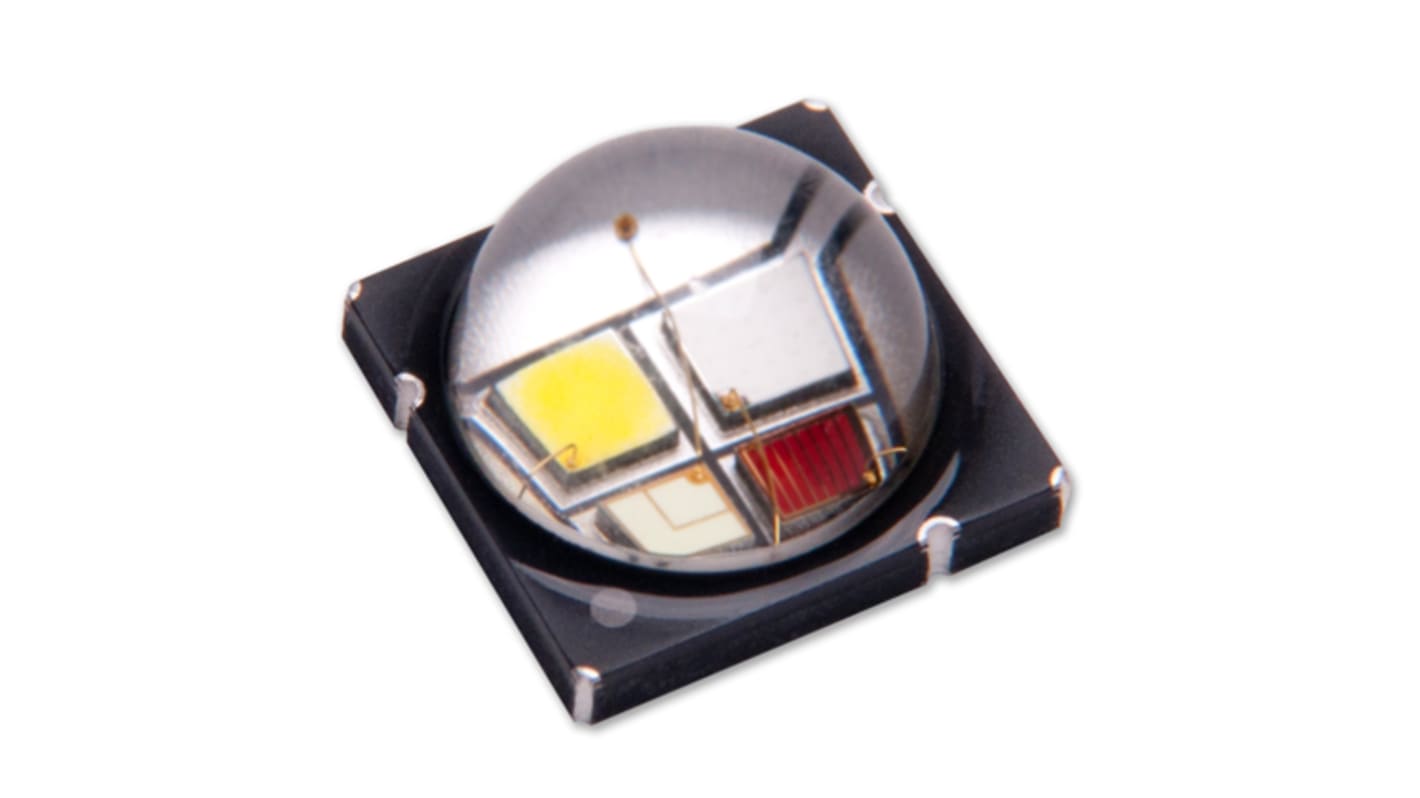

LedEngin Inc LZ4-V4MDPB-0000, LZ LED Array, 4 Blue, Green, Red, White LED (6500K)
- RS Stock No.:
- 171-8643
- Mfr. Part No.:
- LZ4-V4MDPB-0000
- Brand:
- LedEngin Inc
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 171-8643
- Mfr. Part No.:
- LZ4-V4MDPB-0000
- Brand:
- LedEngin Inc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LedEngin Inc | |
| Number of LEDs | 4 | |
| LED Colours | Blue, Green, Red, White | |
| Colour Temperature | 6500K | |
| Typical Luminous Flux | 82 lm, 240 lm, 380 lm, 630 lm | |
| Radiant Flux | 2.8W | |
| Base Material | Ceramic | |
| Constant Voltage or Constant Current | Constant Current | |
| Current Rating | 2500 (Red) mA, 3000 (Green, Blue, White) mA | |
| Voltage Rating | 2.8 V, 4.1 V, 3.4 (Blue, White) V | |
| Power Dissipation | 40W | |
| Series | LZ | |
| Secondary Optics Included | Lens | |
| Connection Types | Solder | |
Select all | ||
|---|---|---|
Brand LedEngin Inc | ||
Number of LEDs 4 | ||
LED Colours Blue, Green, Red, White | ||
Colour Temperature 6500K | ||
Typical Luminous Flux 82 lm, 240 lm, 380 lm, 630 lm | ||
Radiant Flux 2.8W | ||
Base Material Ceramic | ||
Constant Voltage or Constant Current Constant Current | ||
Current Rating 2500 (Red) mA, 3000 (Green, Blue, White) mA | ||
Voltage Rating 2.8 V, 4.1 V, 3.4 (Blue, White) V | ||
Power Dissipation 40W | ||
Series LZ | ||
Secondary Optics Included Lens | ||
Connection Types Solder | ||
- COO (Country of Origin):
- MY
The 40W LZ4 RGBW Power emitter produces a full spectrum of brilliant colours with the highest flux density by allowing each die to be driven at up to 3.0A. Through its compact 2.15mm x 2.15mm Light Emitting Area, it delivers more than double the light, doubling the punch from the same fixture utilizing previous generation 4-die RGBW emitters. Utilizing a lower profile substrate and a thinner flat glass lens than its predecessor, the emitter allows the secondary optics to be closer to the die, maximizing the coupling efficiency into the zoom optics, mixing rods, light pipes and other optics. The high quality materials used in the package are chosen to maximize light output and minimize stresses which results in monumental reliability and lumen maintenance.
Highest flux density surface mount ceramic RGBW LED with integrated flat glass lens
40W power dissipation in a small 7.0mm x 7.0mm emitter footprint
Compact 2.15mm x 2.15mm Light Emitting Area and low profile package maximize coupling efficiency into
secondary optics
Thermal resistance of 0.9°C/W, up to 3.0A maximum drive current per die
Individually addressable Red, Green, Blue and Daylight White die
Electrically neutral thermal path
Lead (Pb) free
Typical Applications
Stage and Studio Lighting
Effect Lighting
Accent Lighting
Display Lighting
Architectural Lighting
40W power dissipation in a small 7.0mm x 7.0mm emitter footprint
Compact 2.15mm x 2.15mm Light Emitting Area and low profile package maximize coupling efficiency into
secondary optics
Thermal resistance of 0.9°C/W, up to 3.0A maximum drive current per die
Individually addressable Red, Green, Blue and Daylight White die
Electrically neutral thermal path
Lead (Pb) free
