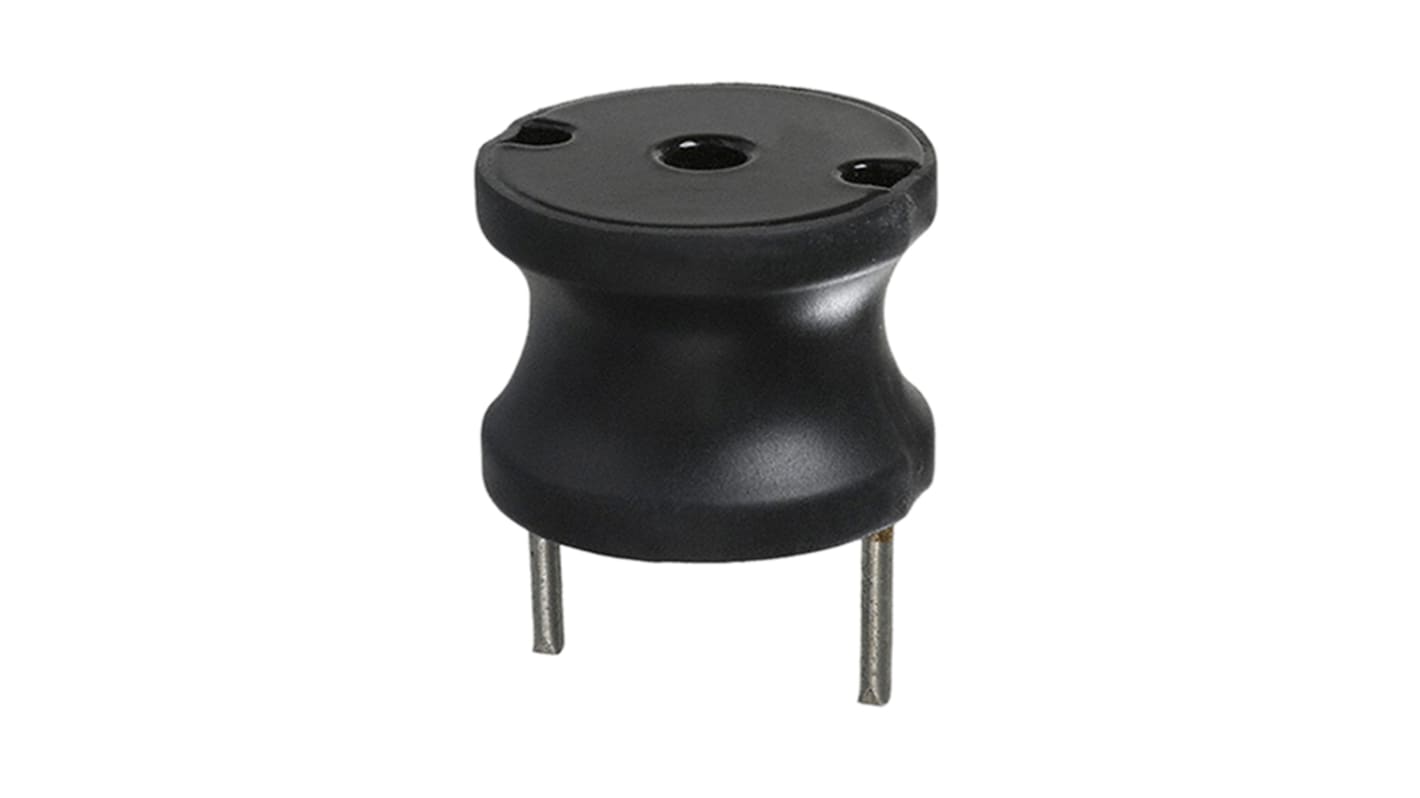

Bourns 33 μH ±10% Ferrite Bobbin Core Leaded Inductor, 13.5A Idc, 17mΩ Rdc, 1130
- RS Stock No.:
- 874-9839P
- Mfr. Part No.:
- 1130-330K-RC
- Brand:
- Bourns
Save 18% when you buy 250 units
Subtotal 10 units (supplied in a bag)*
£57.00
(exc. VAT)
£68.40
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 174 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 - 49 | £5.70 |
| 50 - 99 | £5.03 |
| 100 - 249 | £4.78 |
| 250 + | £4.65 |
*price indicative
- RS Stock No.:
- 874-9839P
- Mfr. Part No.:
- 1130-330K-RC
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 33 μH | |
| Maximum DC Current | 13.5A | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 17mΩ | |
| Tolerance | ±10% | |
| Diameter | 27.94mm | |
| Length | 34.03mm | |
| Height | 21.3mm | |
| Dimensions | 27.94 (Dia.) x 21.34mm | |
| Core Material | Ferrite Bobbin Core | |
| Lead Pitch | 20.07mm | |
| Series | 1130 | |
| Lead Diameter | 1.63mm | |
| Maximum Operating Temperature | +105°C | |
| Terminal Type | Radial Leaded | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 33 μH | ||
Maximum DC Current 13.5A | ||
Mounting Type Radial | ||
Maximum DC Resistance 17mΩ | ||
Tolerance ±10% | ||
Diameter 27.94mm | ||
Length 34.03mm | ||
Height 21.3mm | ||
Dimensions 27.94 (Dia.) x 21.34mm | ||
Core Material Ferrite Bobbin Core | ||
Lead Pitch 20.07mm | ||
Series 1130 | ||
Lead Diameter 1.63mm | ||
Maximum Operating Temperature +105°C | ||
Terminal Type Radial Leaded | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- CN
Bourns High Current, 1130 Series Radial Chokes
Very high Current Capacity
Low DC Resistance
Epoxy coated ferrite bobbin core
VW-1 rated shrink tubing to cover winding
Self-leaded and fixed lead spacing
Centre hole for mechanical mounting
Dielectric withstanding voltage: 2500 Vrms terminal to shrink tube cover
1000 Vrms terminal to core
Low DC Resistance
Epoxy coated ferrite bobbin core
VW-1 rated shrink tubing to cover winding
Self-leaded and fixed lead spacing
Centre hole for mechanical mounting
Dielectric withstanding voltage: 2500 Vrms terminal to shrink tube cover
1000 Vrms terminal to core
Bourns Leaded Inductors (Chokes)
