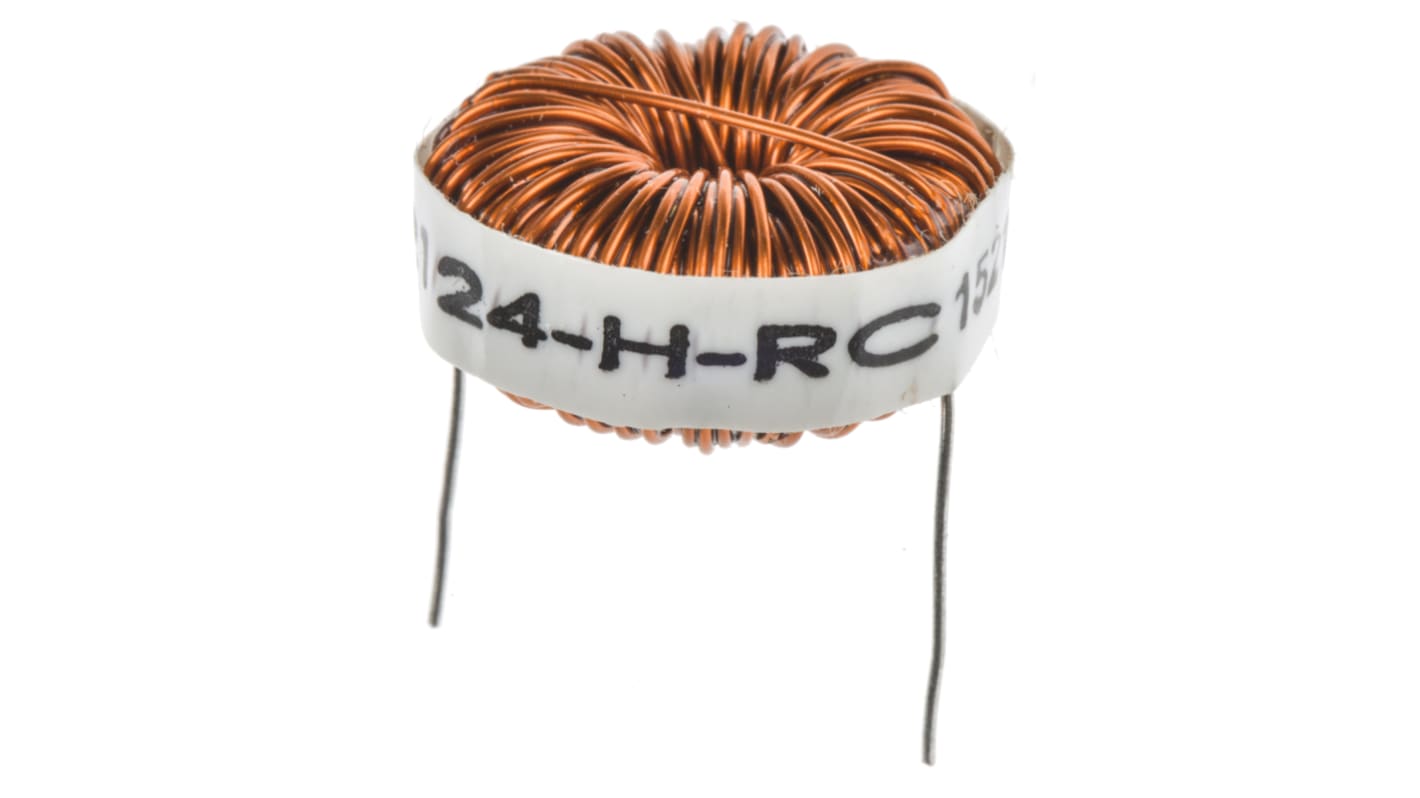

Bourns 1 mH ±15% Toroidal Inductor, 1.3A Idc, 400mΩ Rdc, 2124
- RS Stock No.:
- 874-9829
- Mfr. Part No.:
- 2124-H-RC
- Brand:
- Bourns
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 874-9829
- Mfr. Part No.:
- 2124-H-RC
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 1 mH | |
| Maximum DC Current | 1.3A | |
| Mounting Type | Axial | |
| Maximum DC Resistance | 400mΩ | |
| Tolerance | ±15% | |
| Diameter | 21.84mm | |
| Length | 24.13mm | |
| Height | 11.4mm | |
| Dimensions | 21.84 (Dia.) x 11.43mm | |
| Lead Pitch | 20.57mm | |
| Series | 2124 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Lead Diameter | 0.56mm | |
| Terminal Type | Radial Leaded | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 1 mH | ||
Maximum DC Current 1.3A | ||
Mounting Type Axial | ||
Maximum DC Resistance 400mΩ | ||
Tolerance ±15% | ||
Diameter 21.84mm | ||
Length 24.13mm | ||
Height 11.4mm | ||
Dimensions 21.84 (Dia.) x 11.43mm | ||
Lead Pitch 20.57mm | ||
Series 2124 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
Lead Diameter 0.56mm | ||
Terminal Type Radial Leaded | ||
- COO (Country of Origin):
- HN
Bourns 2100 Series Radial Chokes
DC/DC converter, EMI filter applications
Low radiation
Low core loss
High current capacity
Horizontal or Vertical mount
Product Size 21.8mm Outside Diameter, 11.4mm Thick
Operating temperature -55 to +105°C
Low radiation
Low core loss
High current capacity
Horizontal or Vertical mount
Product Size 21.8mm Outside Diameter, 11.4mm Thick
Operating temperature -55 to +105°C
Bourns Leaded Inductors (Chokes)
