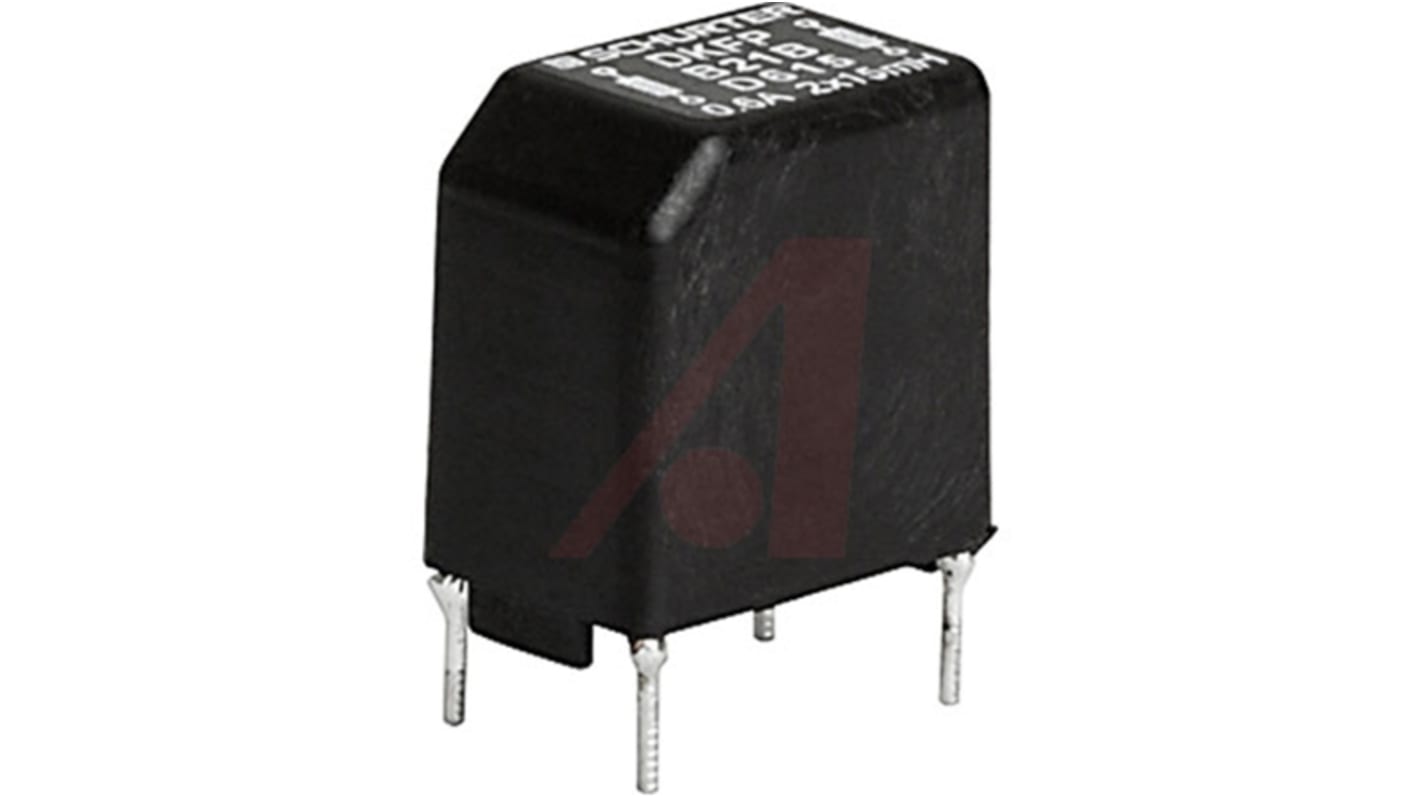

Schurter 2 mH -30 → +50% Leaded Inductor, Max SRF:1.6MHz, 900mA Idc, 240mΩ Rdc, DKFP
- RS Stock No.:
- 870-3397
- Mfr. Part No.:
- DKFP-6248-0102
- Brand:
- Schurter
Discontinued
- RS Stock No.:
- 870-3397
- Mfr. Part No.:
- DKFP-6248-0102
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Inductance | 2 mH | |
| Maximum DC Current | 900mA | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 240mΩ | |
| Tolerance | -30 → +50% | |
| Length | 10.7mm | |
| Depth | 10.5mm | |
| Height | 8.2mm | |
| Dimensions | 10.7 x 10.5 x 8.2mm | |
| Maximum Self Resonant Frequency | 1.6MHz | |
| Lead Pitch | 6.25, 8.75mm | |
| Series | DKFP | |
| Lead Diameter | 0.8mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Terminal Type | Radial Leaded | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Inductance 2 mH | ||
Maximum DC Current 900mA | ||
Mounting Type Radial | ||
Maximum DC Resistance 240mΩ | ||
Tolerance -30 → +50% | ||
Length 10.7mm | ||
Depth 10.5mm | ||
Height 8.2mm | ||
Dimensions 10.7 x 10.5 x 8.2mm | ||
Maximum Self Resonant Frequency 1.6MHz | ||
Lead Pitch 6.25, 8.75mm | ||
Series DKFP | ||
Lead Diameter 0.8mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Terminal Type Radial Leaded | ||
- COO (Country of Origin):
- LK
DKFP Magnetically Compensated Choke
The DKFP series magnetically compensated choke has been designed to be suitable for use in a wide variety of applications. These include but are not limited to applications such as attenuation of common mode interference, chopper amplifiers, DC drives and stepper motor controls or they could even be used for switching power supplies. They are a current compensated choke with THT-terminals and there are multiple PCB-mounting options.
Features:
High inductance and compact dimensions
Multiple pin configurations
THT-terminals
Wide current rating of 0.3 to 10A at Ta +40 °C
Operating temperature range: -25 to +125 °C
High inductance and compact dimensions
Multiple pin configurations
THT-terminals
Wide current rating of 0.3 to 10A at Ta +40 °C
Operating temperature range: -25 to +125 °C
Standards
Housing material: UL94V-0
Sealing compound: UL94V-0
Sealing compound: UL94V-0
