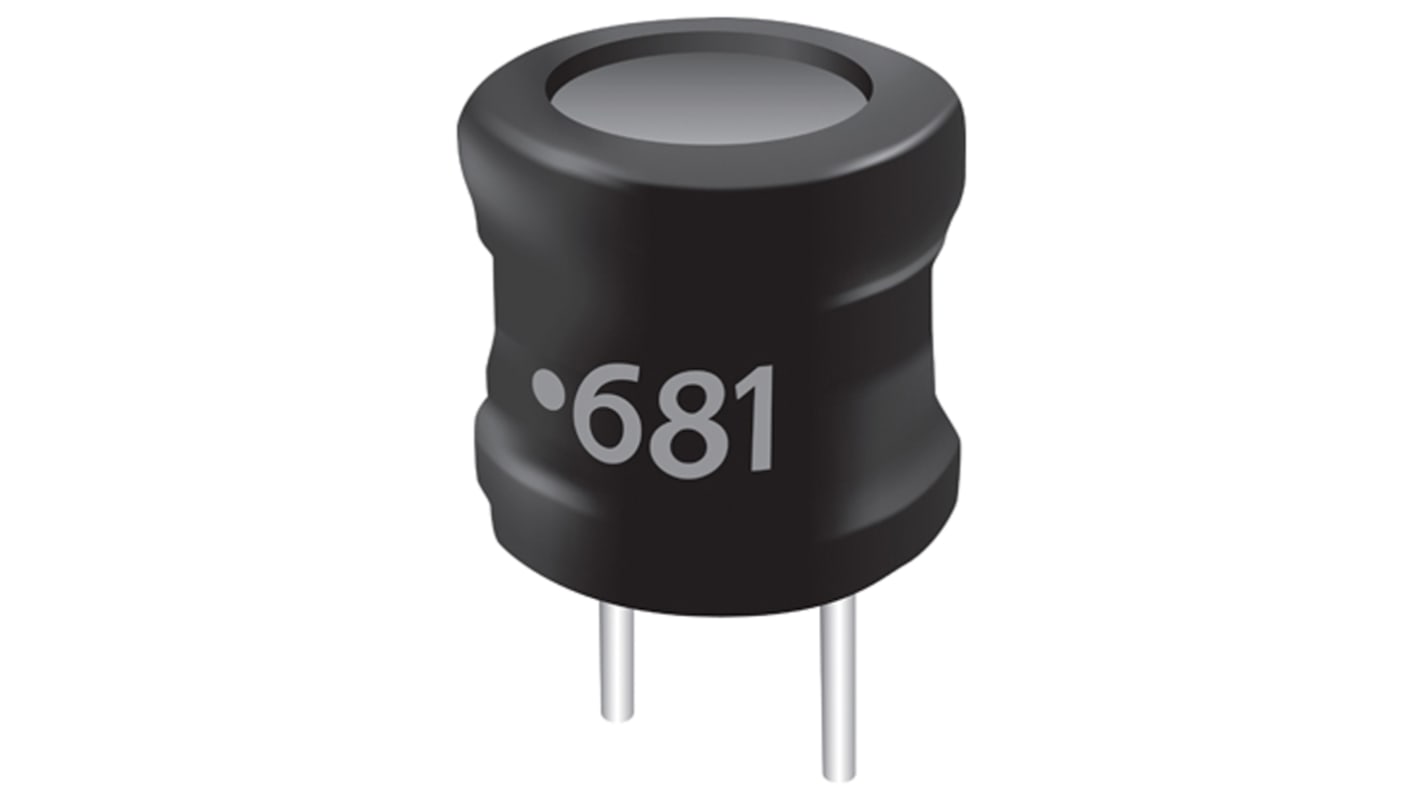

Bourns 1 mH ±10% Ferrite Bobbin Core Leaded Inductor, Max SRF:1.3MHz, Q:20, 510mA Idc, 2.9Ω Rdc, 6000

Image representative of range

View all Leaded Inductors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
860-4041
Mfr. Part No.:
6000-102K-RC
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Inductance

1 mH

Maximum DC Current

510mA

Mounting Type

Radial

Maximum DC Resistance

2.9Ω

Tolerance

±10%

Diameter

9mm

Length

22.2mm

Height

12.2mm

Dimensions

9 (Dia.) x 12.2mm

Core Material

Ferrite Bobbin Core

Maximum Self Resonant Frequency

1.3MHz

Lead Pitch

5mm

Series

6000

Minimum Quality Factor

20

Terminal Type

Radial Leaded

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+105°C

Lead Diameter

0.7mm

COO (Country of Origin):
TW

Bourns 6000 Series Radial Chokes


Bourns 6000 Series radial lead RF chokes are a highly reliable choke that offer a high current capacity, high efficiency and wide operating temperature range.

High current capacity
Ferrite bobbin core
Low core loss at frequency
High reliability, efficiency
Winding covered with shrink tubing
Fixed lead spacing
Operating temperature -55 to +105 °C
