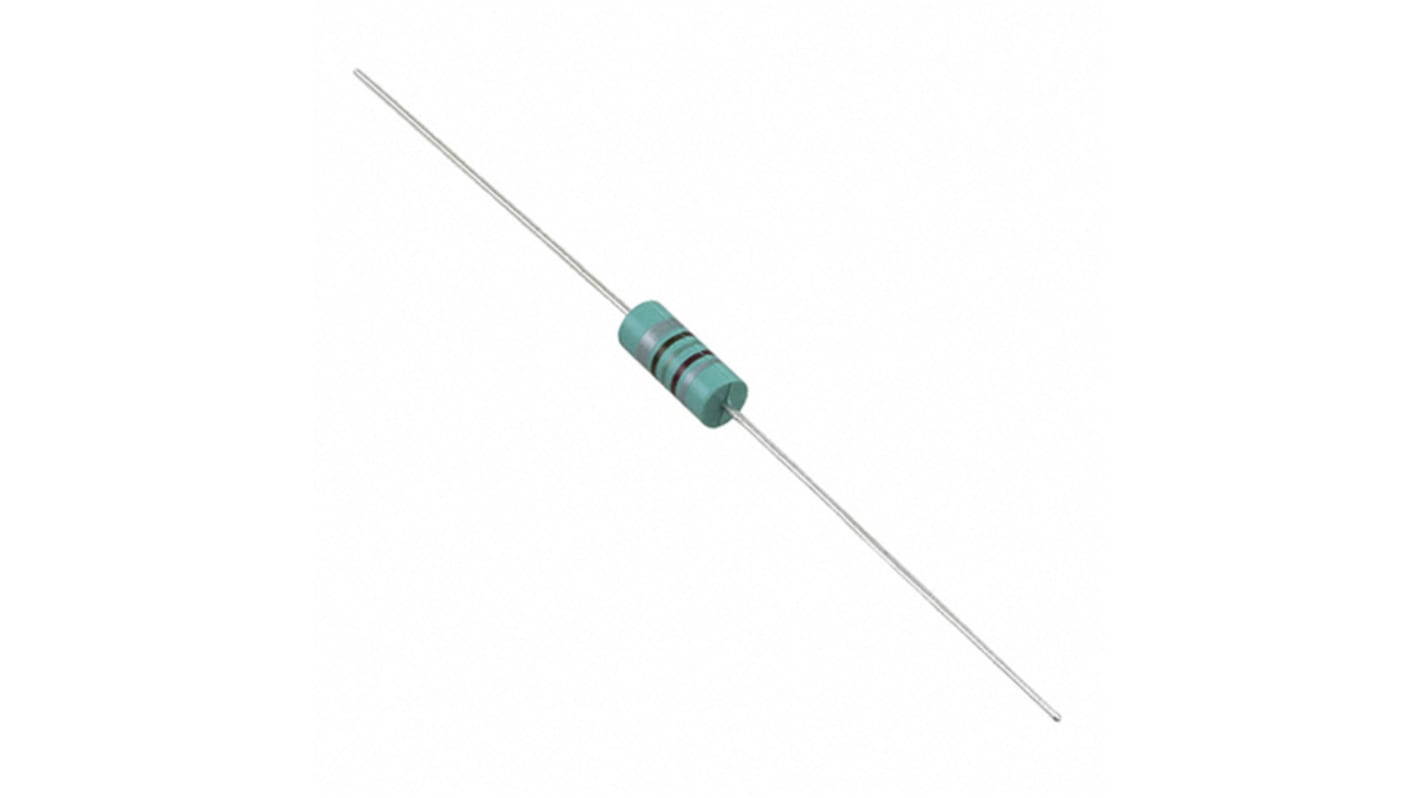

Vishay 10 mH ±10% Ferrite Leaded Inductor, Max SRF:3.8MHz, Q:60, 24mA Idc, 137Ω Rdc, IMS
- RS Stock No.:
- 852-3863
- Mfr. Part No.:
- IMS05EB103K
- Brand:
- Vishay
Discontinued
- RS Stock No.:
- 852-3863
- Mfr. Part No.:
- IMS05EB103K
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Inductance | 10 mH | |
| Maximum DC Current | 24mA | |
| Mounting Type | Axial | |
| Maximum DC Resistance | 137Ω | |
| Tolerance | ±10% | |
| Diameter | 4.11mm | |
| Length | 83.55mm | |
| Height | 10.41mm | |
| Dimensions | 4.11 (Dia.) x 10.41mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 3.8MHz | |
| Series | IMS | |
| Minimum Quality Factor | 60 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Lead Diameter | 0.63mm | |
| Terminal Type | Axial Leaded | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Inductance 10 mH | ||
Maximum DC Current 24mA | ||
Mounting Type Axial | ||
Maximum DC Resistance 137Ω | ||
Tolerance ±10% | ||
Diameter 4.11mm | ||
Length 83.55mm | ||
Height 10.41mm | ||
Dimensions 4.11 (Dia.) x 10.41mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 3.8MHz | ||
Series IMS | ||
Minimum Quality Factor 60 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
Lead Diameter 0.63mm | ||
Terminal Type Axial Leaded | ||
- COO (Country of Origin):
- MX
Vishay IMS05 Series Axial Inductor
The IMS-05 series of Vishay fixed inductors. All inductors will provide excellent reliability and are made of the highest quality. The inductors coating would also be flame retardant making it perfect for use in various environments.
Wide inductance range in small package
Axial type
Epoxy molded construction provides superior moisture protection
Axial type
Epoxy molded construction provides superior moisture protection
