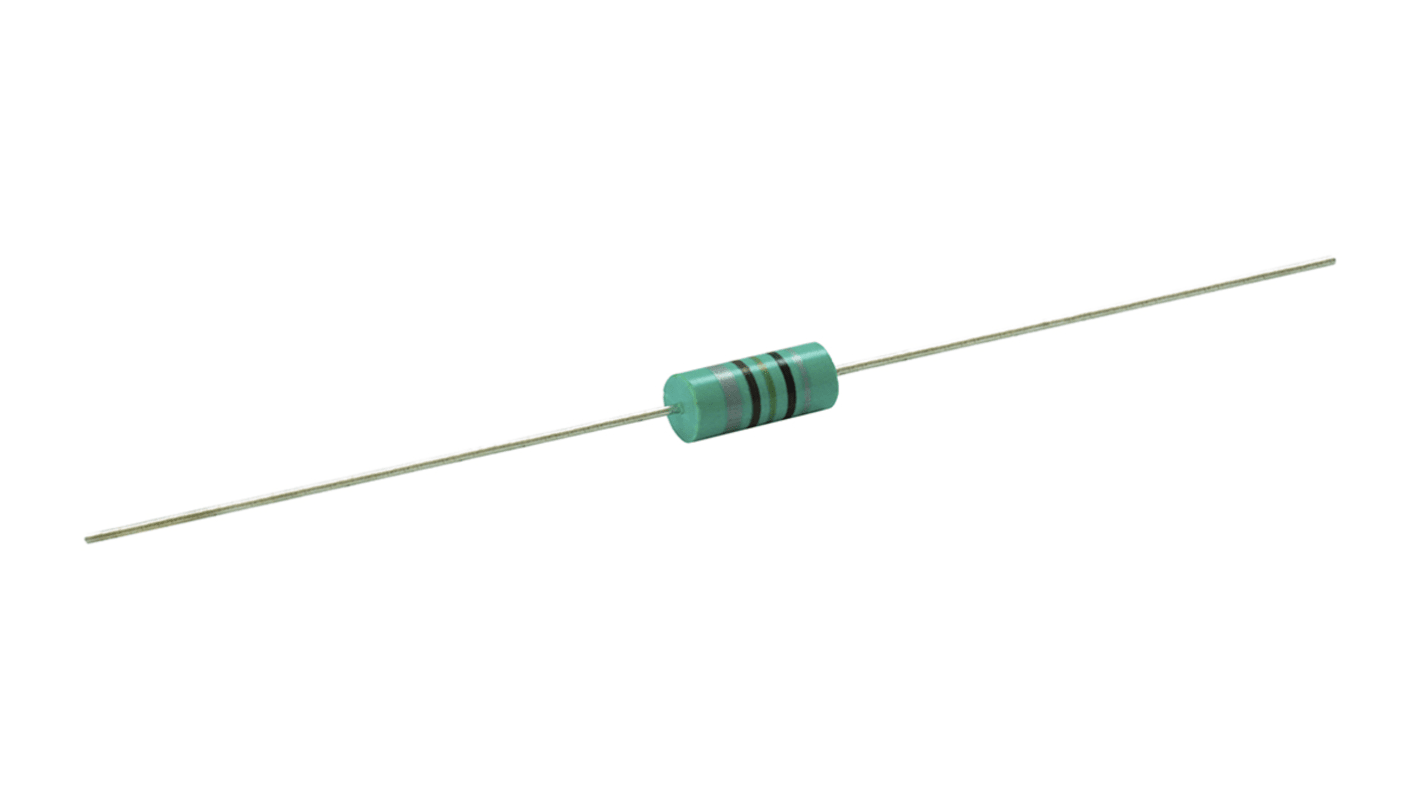

Vishay 47 μH ±5% Iron Leaded Inductor, Max SRF:13MHz, Q:55, 170mA Idc, 2.75Ω Rdc, IM
- RS Stock No.:
- 852-3845
- Mfr. Part No.:
- IM04EB470J
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 852-3845
- Mfr. Part No.:
- IM04EB470J
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Inductance | 47 μH | |
| Maximum DC Current | 170mA | |
| Mounting Type | Axial | |
| Maximum DC Resistance | 2.75Ω | |
| Tolerance | ±5% | |
| Diameter | 4.19mm | |
| Length | 51.18mm | |
| Height | 9.78mm | |
| Dimensions | 4.19 (Dia.) x 9.78mm | |
| Core Material | Iron | |
| Maximum Self Resonant Frequency | 13MHz | |
| Series | IM | |
| Minimum Quality Factor | 55 | |
| Terminal Type | Axial Leaded | |
| Maximum Operating Temperature | +105°C | |
| Lead Diameter | 0.68mm | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Inductance 47 μH | ||
Maximum DC Current 170mA | ||
Mounting Type Axial | ||
Maximum DC Resistance 2.75Ω | ||
Tolerance ±5% | ||
Diameter 4.19mm | ||
Length 51.18mm | ||
Height 9.78mm | ||
Dimensions 4.19 (Dia.) x 9.78mm | ||
Core Material Iron | ||
Maximum Self Resonant Frequency 13MHz | ||
Series IM | ||
Minimum Quality Factor 55 | ||
Terminal Type Axial Leaded | ||
Maximum Operating Temperature +105°C | ||
Lead Diameter 0.68mm | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- MX
Vishay IM04 Series Axial Inductor
The IM04 series of Vishay fixed inductors. All inductors will provide excellent reliability and are made of the highest quality. The inductors coating would also be flame retardant making it perfect for use in various environments.
Wide inductance range in small package
Axial type
Epoxy molded construction provides superior moisture protection
Axial type
Epoxy molded construction provides superior moisture protection
