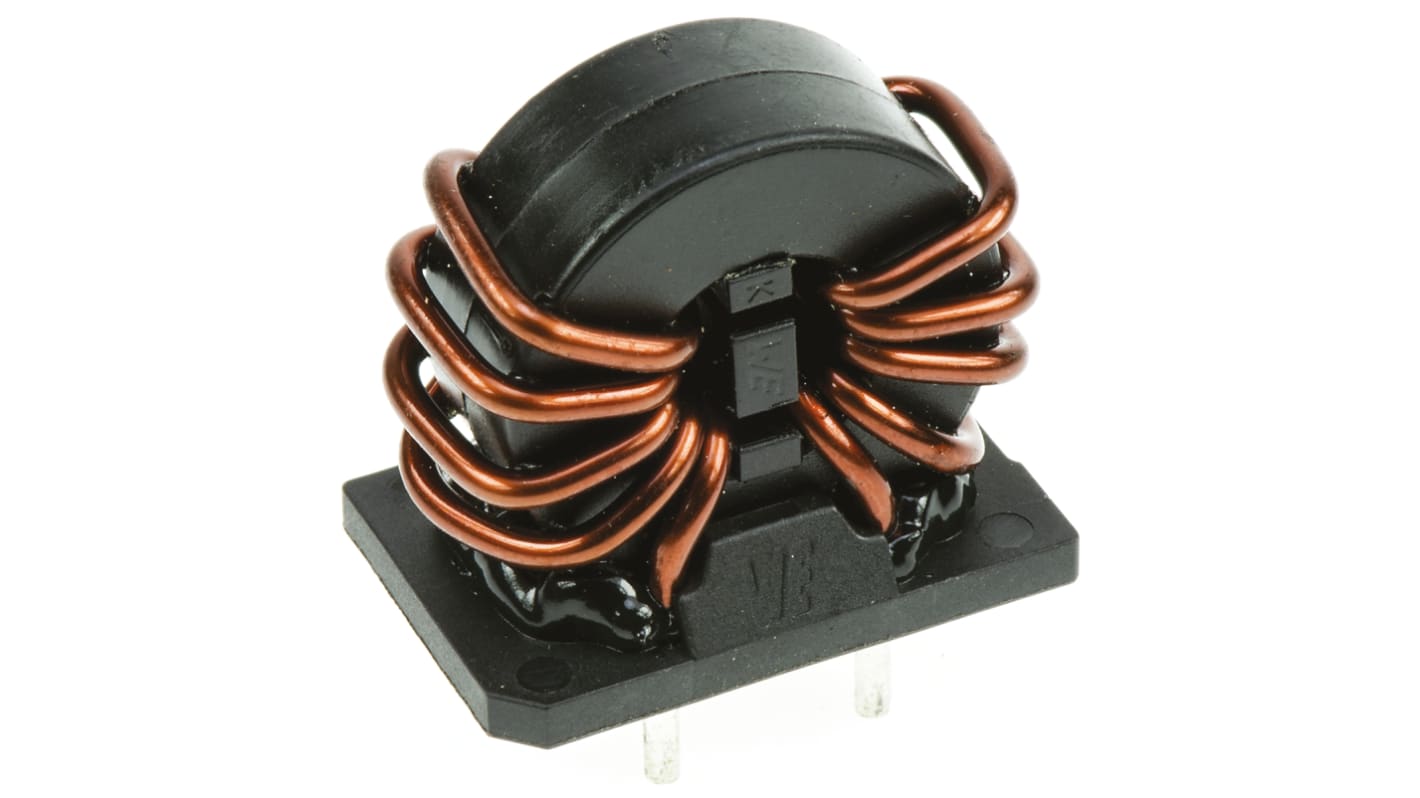

Wurth 2 x 35 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 3.5A Idc, 2 x
- RS Stock No.:
- 816-4795
- Distrelec Article No.:
- 300-62-582
- Mfr. Part No.:
- 7448040435
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£11.41
(exc. VAT)
£13.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £11.41 |
| 10 - 24 | £9.71 |
| 25 - 49 | £8.56 |
| 50 - 74 | £7.42 |
| 75 + | £6.86 |
*price indicative
- RS Stock No.:
- 816-4795
- Distrelec Article No.:
- 300-62-582
- Mfr. Part No.:
- 7448040435
- Brand:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 2 x 35 mH | |
| Maximum DC Current | 3.5A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 2 x 80mΩ | |
| Tolerance | -30 → +50% | |
| Length | 28mm | |
| Depth | 19mm | |
| Height | 32mm | |
| Dimensions | 28 x 19 x 32mm | |
| Core Material | Nano Crystalline | |
| Maximum Self Resonant Frequency | 1 kHz → 300 MHz | |
| Lead Pitch | 10mm | |
| Series | WE-CMBNC | |
| Minimum Operating Temperature | -40°C | |
| Lead Diameter | 1mm | |
| Terminal Type | Through Hole | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 2 x 35 mH | ||
Maximum DC Current 3.5A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 2 x 80mΩ | ||
Tolerance -30 → +50% | ||
Length 28mm | ||
Depth 19mm | ||
Height 32mm | ||
Dimensions 28 x 19 x 32mm | ||
Core Material Nano Crystalline | ||
Maximum Self Resonant Frequency 1 kHz → 300 MHz | ||
Lead Pitch 10mm | ||
Series WE-CMBNC | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 1mm | ||
Terminal Type Through Hole | ||
Maximum Operating Temperature +125°C | ||
