Murata 33 μH ±15% Leaded Inductor, Max SRF:9.1MHz, Q:27, 9.3A Idc, 15mΩ Rdc, 1400

View all Leaded Inductors
Save 20% when you buy 250 units

Subtotal (1 unit)*

£2.10

(exc. VAT)

£2.52

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 50 unit(s) shipping from 03 October 2025
  • Plus 75 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£2.10
25 - 49£1.98
50 - 99£1.87
100 - 249£1.72
250 +£1.68

*price indicative

RS Stock No.:
629-9212
Mfr. Part No.:
1433393C
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Inductance

33 μH

Maximum DC Current

9.3A

Mounting Type

Radial

Maximum DC Resistance

15mΩ

Tolerance

±15%

Diameter

27mm

Length

28.5mm

Depth

25.9mm

Height

14mm

Dimensions

27 (Dia.) x 14mm

Maximum Self Resonant Frequency

9.1MHz

Lead Pitch

23.9mm

Series

1400

Minimum Quality Factor

27

Terminal Type

Through Hole

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+85°C

Lead Diameter

1.30mm

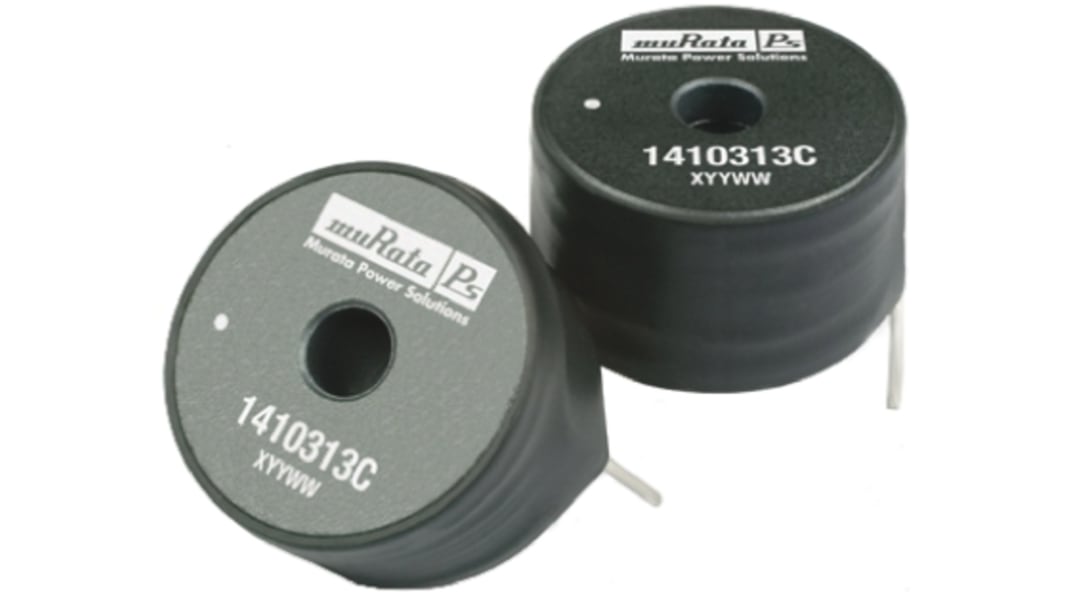

Murata 1400 Series High Current Radial Inductors


Designed for use in power line applications such as switching regulators, filters and suppression circuits
Constructed from high saturation flux density material enabling use in high current applications
Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
Terminated with easy-strip pre-tinned enamelled copper leads
Lead length 10mm
Operating temperature: -40 → +85°C
Inductance Tolerance: ±10%


Murata Leaded Inductors (Chokes)
