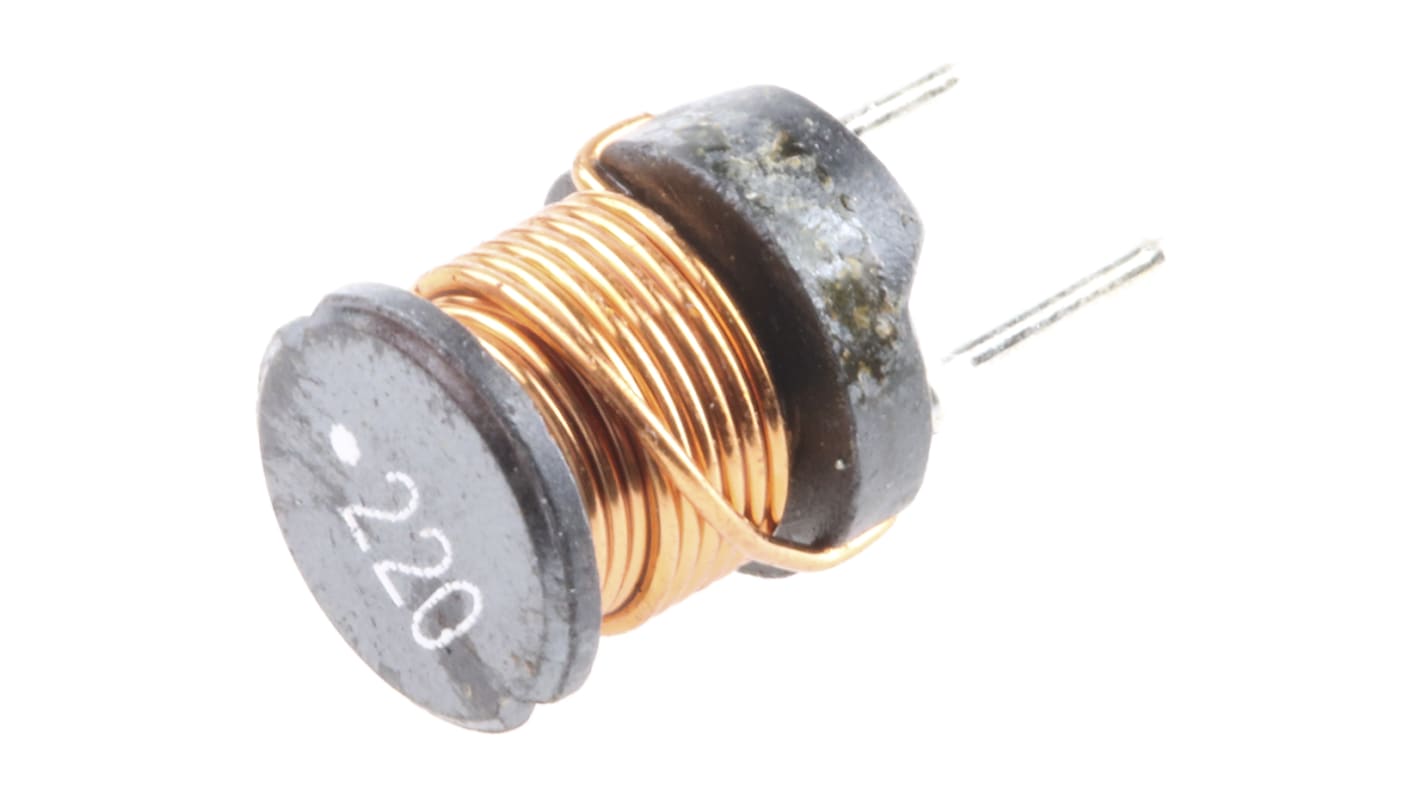

Wurth 22 μH ±10% Ferrite Radial Inductor, 2.3A Idc, 55mΩ Rdc, WE-TI
- RS Stock No.:
- 489-0043
- Mfr. Part No.:
- 744772220
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 10 units)*
£8.06
(exc. VAT)
£9.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 540 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 400 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 40 | £0.806 | £8.06 |
50 - 240 | £0.752 | £7.52 |
250 - 490 | £0.668 | £6.68 |
500 - 990 | £0.613 | £6.13 |
1000 + | £0.551 | £5.51 |
*price indicative
- RS Stock No.:
- 489-0043
- Mfr. Part No.:
- 744772220
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 22 μH | |
Maximum DC Current | 2.3A | |
Mounting Type | Radial | |
Maximum DC Resistance | 55mΩ | |
Tolerance | ±10% | |
Diameter | 8.3mm | |
Height | 10mm | |
Dimensions | 8.3 (Dia.) x 10mm | |
Core Material | Ferrite | |
Lead Pitch | 5mm | |
Series | WE-TI | |
Terminal Type | Through Hole | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 22 μH | ||
Maximum DC Current 2.3A | ||
Mounting Type Radial | ||
Maximum DC Resistance 55mΩ | ||
Tolerance ±10% | ||
Diameter 8.3mm | ||
Height 10mm | ||
Dimensions 8.3 (Dia.) x 10mm | ||
Core Material Ferrite | ||
Lead Pitch 5mm | ||
Series WE-TI | ||
Terminal Type Through Hole | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Wurth WE-TI Series Radial Filter Chokes
Characteristics
Radial through-hole inductor
Maximum current up to 4.5A
High saturation core material
Small size
Standardised lead spacing is 5mm
Operating temperature: -25°C → +85°C
Maximum current up to 4.5A
High saturation core material
Small size
Standardised lead spacing is 5mm
Operating temperature: -25°C → +85°C
Applications
Signal filtering
Switches, switching power supply for small and medium voltage
Power supply filter
Switches, switching power supply for small and medium voltage
Power supply filter
