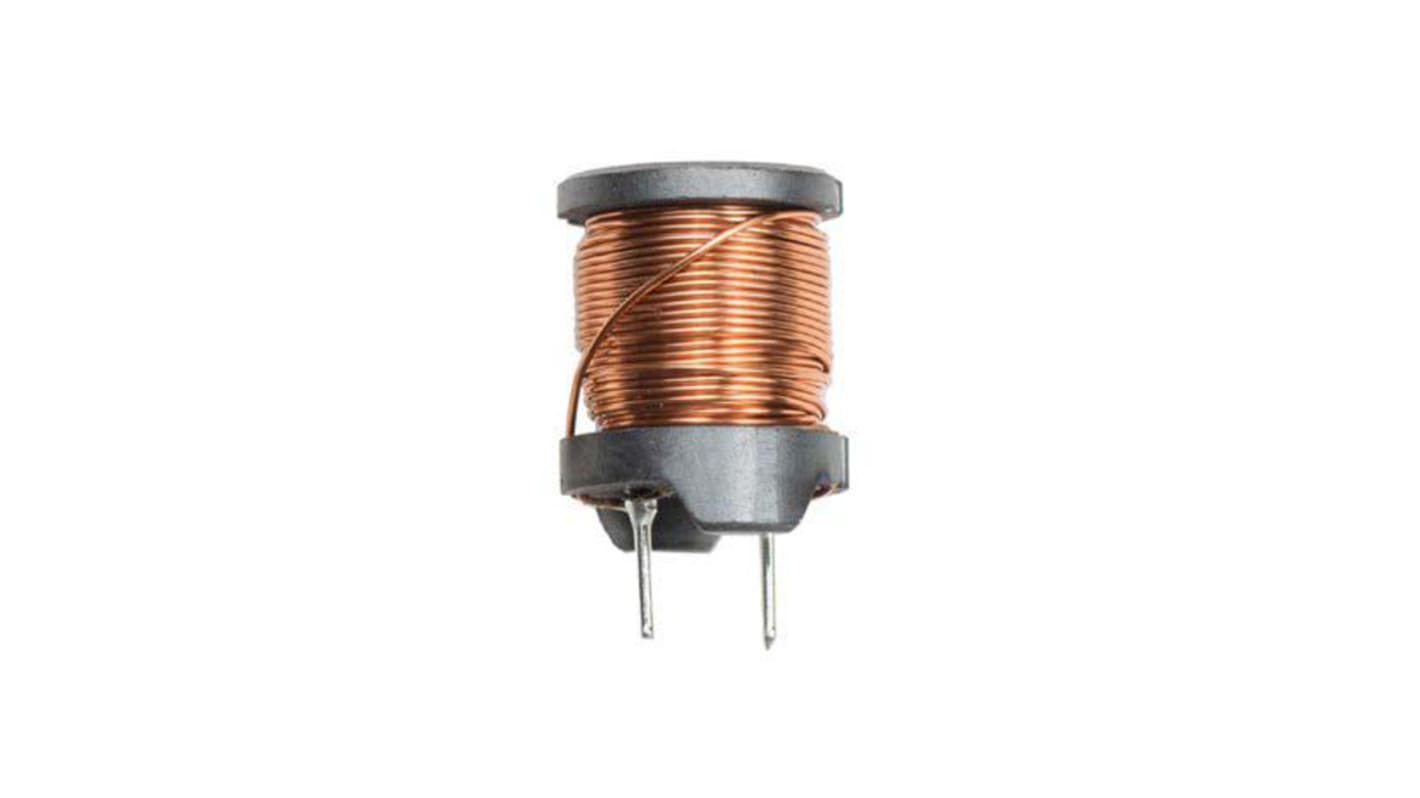

KEMET 22 μH Nickel Zinc Ferrite Core Coil Inductor, 1.9 A Idc, 80 mΩ Rdc, SBCP
- RS Stock No.:
- 265-2721
- Mfr. Part No.:
- SBCP-87HY220H
- Brand:
- KEMET
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1.12
(exc. VAT)
£1.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 482 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.12 |
| 10 - 49 | £1.03 |
| 50 - 99 | £0.88 |
| 100 - 499 | £0.74 |
| 500 + | £0.64 |
*price indicative
- RS Stock No.:
- 265-2721
- Mfr. Part No.:
- SBCP-87HY220H
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 22μH | |
| Product Type | Coil Inductor | |
| Maximum DC Current | 1.9A | |
| Mount Type | Through Hole | |
| Test Frequency | 10kHz | |
| Maximum DC Resistance | 80mΩ | |
| Packaging | Ammo Pack | |
| Lead Diameter | 0.6mm | |
| Automotive Standard | No | |
| Diameter | 9.5mm | |
| Height | 12mm | |
| Minimum Operating Temperature | -20°C | |
| Pin Count | 2 | |
| Core Material | Nickel Zinc Ferrite Core | |
| Inductance Tolerance | 20 % | |
| Maximum Operating Temperature | 105°C | |
| Length | 7.5mm | |
| Termination Style | Wire | |
| Lead Pitch | 5mm | |
| Standards/Approvals | RoHS | |
| Depth | 8.5mm | |
| Series | SBCP | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 22μH | ||
Product Type Coil Inductor | ||
Maximum DC Current 1.9A | ||
Mount Type Through Hole | ||
Test Frequency 10kHz | ||
Maximum DC Resistance 80mΩ | ||
Packaging Ammo Pack | ||
Lead Diameter 0.6mm | ||
Automotive Standard No | ||
Diameter 9.5mm | ||
Height 12mm | ||
Minimum Operating Temperature -20°C | ||
Pin Count 2 | ||
Core Material Nickel Zinc Ferrite Core | ||
Inductance Tolerance 20 % | ||
Maximum Operating Temperature 105°C | ||
Length 7.5mm | ||
Termination Style Wire | ||
Lead Pitch 5mm | ||
Standards/Approvals RoHS | ||
Depth 8.5mm | ||
Series SBCP | ||
- COO (Country of Origin):
- VN
The KEMET ferrite power inductor is useful in various fields and suitable for DC/DC converters and noise filters. It is used in LED lighting, xDSL modems, copying machines, flat TVs, smart meters and power supplies.
Drum core construction
Magnetic non-shield type
Operating temperature range of up to +105°C
RoHS compliant
Lead spacing 5 mm
