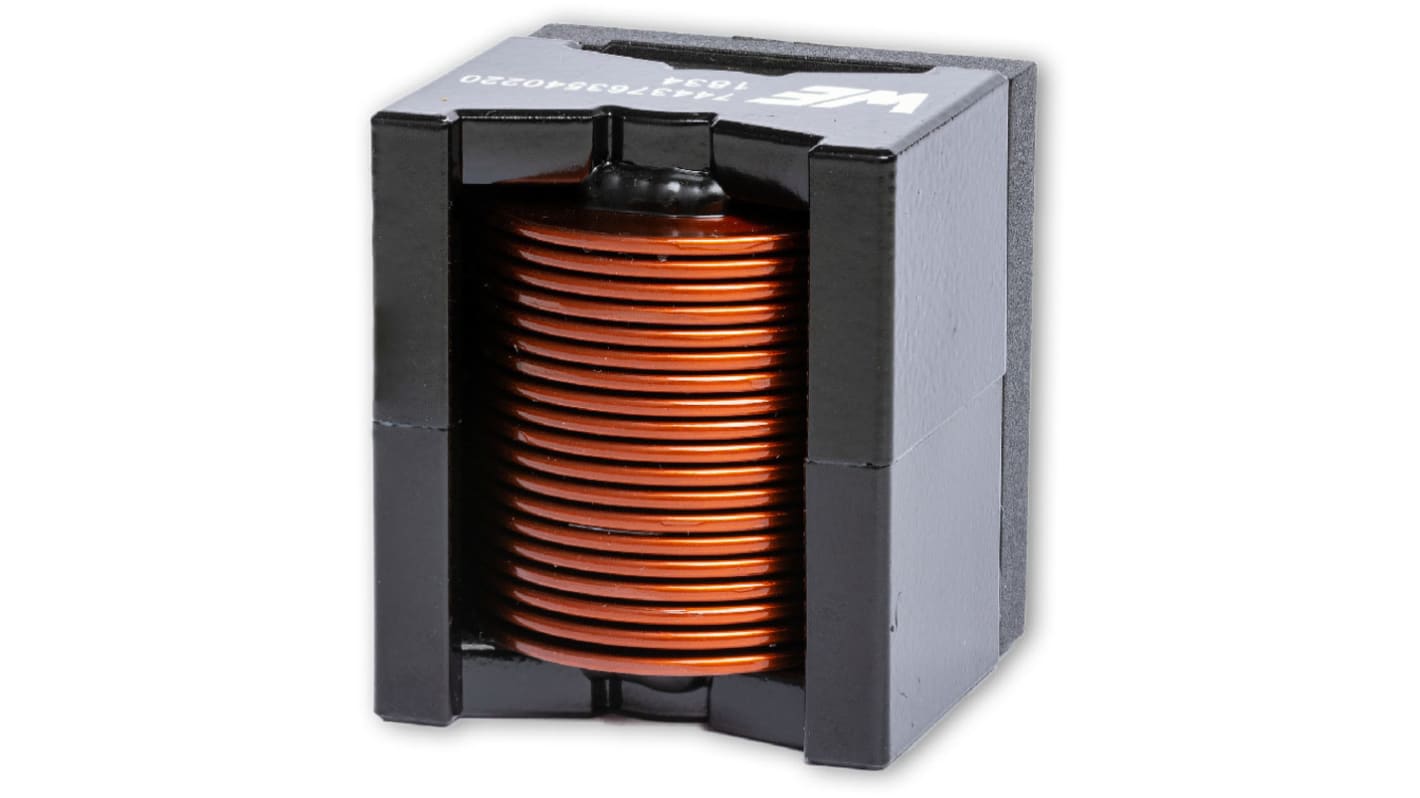

Wurth 47 μH ±20% Manganese Zinc Ferrite Leaded Inductor, Max SRF:5.1MHz, 19.3A Idc, 12.98mΩ Rdc, WE-HCFT
- RS Stock No.:
- 185-7309
- Distrelec Article No.:
- 301-35-772
- Mfr. Part No.:
- 7443783533470
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£11.35
(exc. VAT)
£13.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 9 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £11.35 |
| 5 + | £9.42 |
*price indicative
- RS Stock No.:
- 185-7309
- Distrelec Article No.:
- 301-35-772
- Mfr. Part No.:
- 7443783533470
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 47 μH | |
| Maximum DC Current | 19.3A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 12.98mΩ | |
| Tolerance | ±20% | |
| Length | 36mm | |
| Depth | 34.5mm | |
| Height | 35mm | |
| Dimensions | 36 x 34.5 x 35mm | |
| Core Material | Manganese Zinc Ferrite | |
| Maximum Self Resonant Frequency | 5.1MHz | |
| Series | WE-HCFT | |
| Terminal Type | Through Hole | |
| Minimum Operating Temperature | -40°C | |
| Lead Diameter | 2mm | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 47 μH | ||
Maximum DC Current 19.3A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 12.98mΩ | ||
Tolerance ±20% | ||
Length 36mm | ||
Depth 34.5mm | ||
Height 35mm | ||
Dimensions 36 x 34.5 x 35mm | ||
Core Material Manganese Zinc Ferrite | ||
Maximum Self Resonant Frequency 5.1MHz | ||
Series WE-HCFT | ||
Terminal Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 2mm | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- CN
THT version to assure the mechanical stability
Inductance ranging from 1.5 μH up to 65 μH
Current capability up to 75 A (Saturation >125 A)
Extremely low DCR
Low core losses (MnZn)
Magnetically shielded
Operating temperature -40 °C to +125 °C
Applications
Storage inductor for high efficiency DC/DC converters
High current Power Supplies
Battery chargers
Solar inverter
Inductance ranging from 1.5 μH up to 65 μH
Current capability up to 75 A (Saturation >125 A)
Extremely low DCR
Low core losses (MnZn)
Magnetically shielded
Operating temperature -40 °C to +125 °C
Applications
Storage inductor for high efficiency DC/DC converters
High current Power Supplies
Battery chargers
Solar inverter
