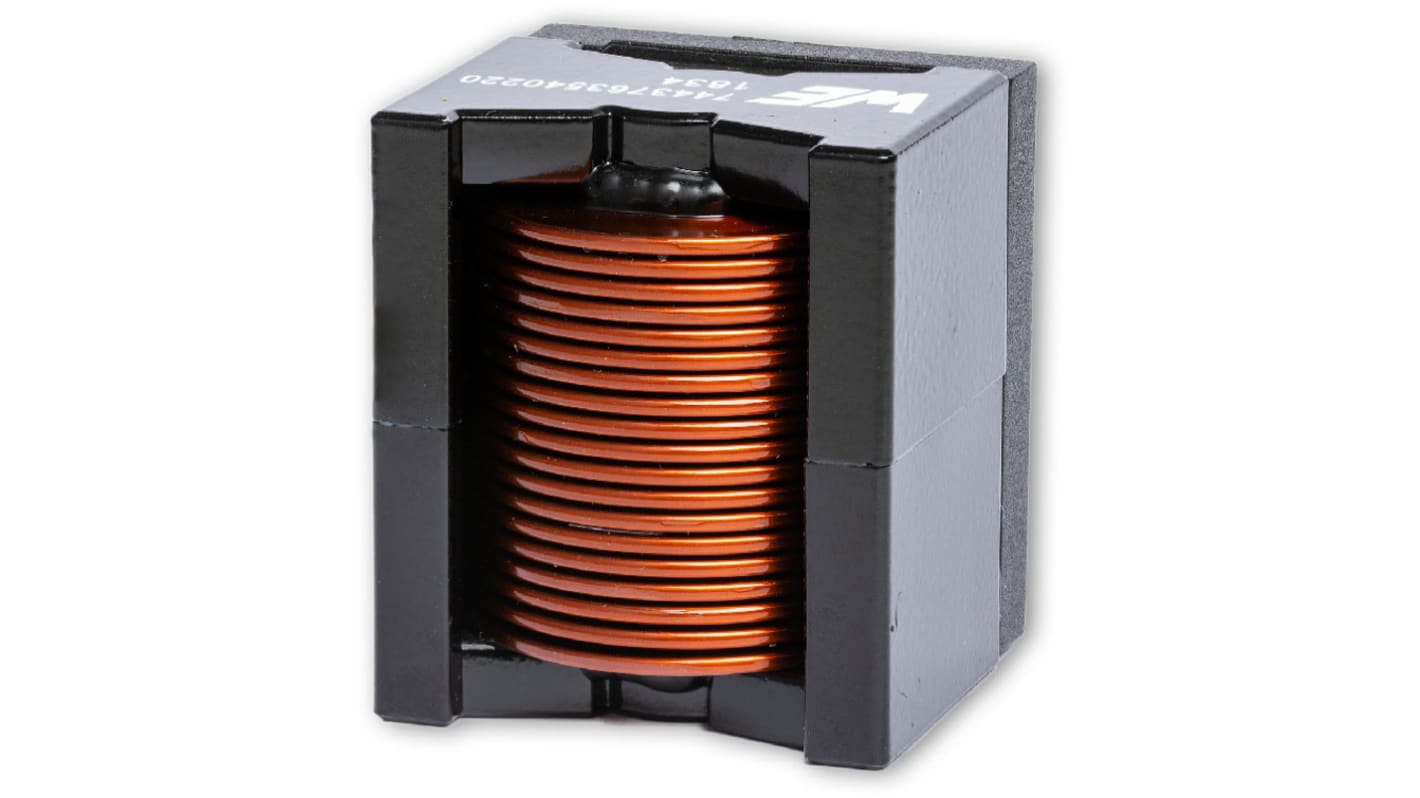

Wurth 6.8 μH ±20% Manganese Zinc Ferrite Leaded Inductor, Max SRF:21MHz, 20.6A Idc, 5mΩ Rdc, WE-HCFT
- RS Stock No.:
- 185-7090
- Mfr. Part No.:
- 7443782012068
- Brand:
- Wurth Elektronik
Subtotal (1 tray of 40 units)*
£126.52
(exc. VAT)
£151.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 40 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
40 + | £3.163 | £126.52 |
*price indicative
- RS Stock No.:
- 185-7090
- Mfr. Part No.:
- 7443782012068
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 6.8 μH | |
Maximum DC Current | 20.6A | |
Mounting Type | Through Hole | |
Maximum DC Resistance | 5mΩ | |
Tolerance | ±20% | |
Length | 22mm | |
Depth | 17mm | |
Height | 13.5mm | |
Dimensions | 22 x 17 x 13.5mm | |
Core Material | Manganese Zinc Ferrite | |
Maximum Self Resonant Frequency | 21MHz | |
Series | WE-HCFT | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +125°C | |
Lead Diameter | 1.5mm | |
Terminal Type | Through Hole | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 6.8 μH | ||
Maximum DC Current 20.6A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 5mΩ | ||
Tolerance ±20% | ||
Length 22mm | ||
Depth 17mm | ||
Height 13.5mm | ||
Dimensions 22 x 17 x 13.5mm | ||
Core Material Manganese Zinc Ferrite | ||
Maximum Self Resonant Frequency 21MHz | ||
Series WE-HCFT | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Lead Diameter 1.5mm | ||
Terminal Type Through Hole | ||
- COO (Country of Origin):
- CN
THT version to assure the mechanical stability
Inductance ranging from 1.5 μH up to 65 μH
Current capability up to 75 A (Saturation >125 A)
Extremely low DCR
Low core losses (MnZn)
Magnetically shielded
Operating temperature -40 °C to +125 °C
Applications
Storage inductor for high efficiency DC/DC converters
High current Power Supplies
Battery chargers
Solar inverter
Inductance ranging from 1.5 μH up to 65 μH
Current capability up to 75 A (Saturation >125 A)
Extremely low DCR
Low core losses (MnZn)
Magnetically shielded
Operating temperature -40 °C to +125 °C
Applications
Storage inductor for high efficiency DC/DC converters
High current Power Supplies
Battery chargers
Solar inverter
