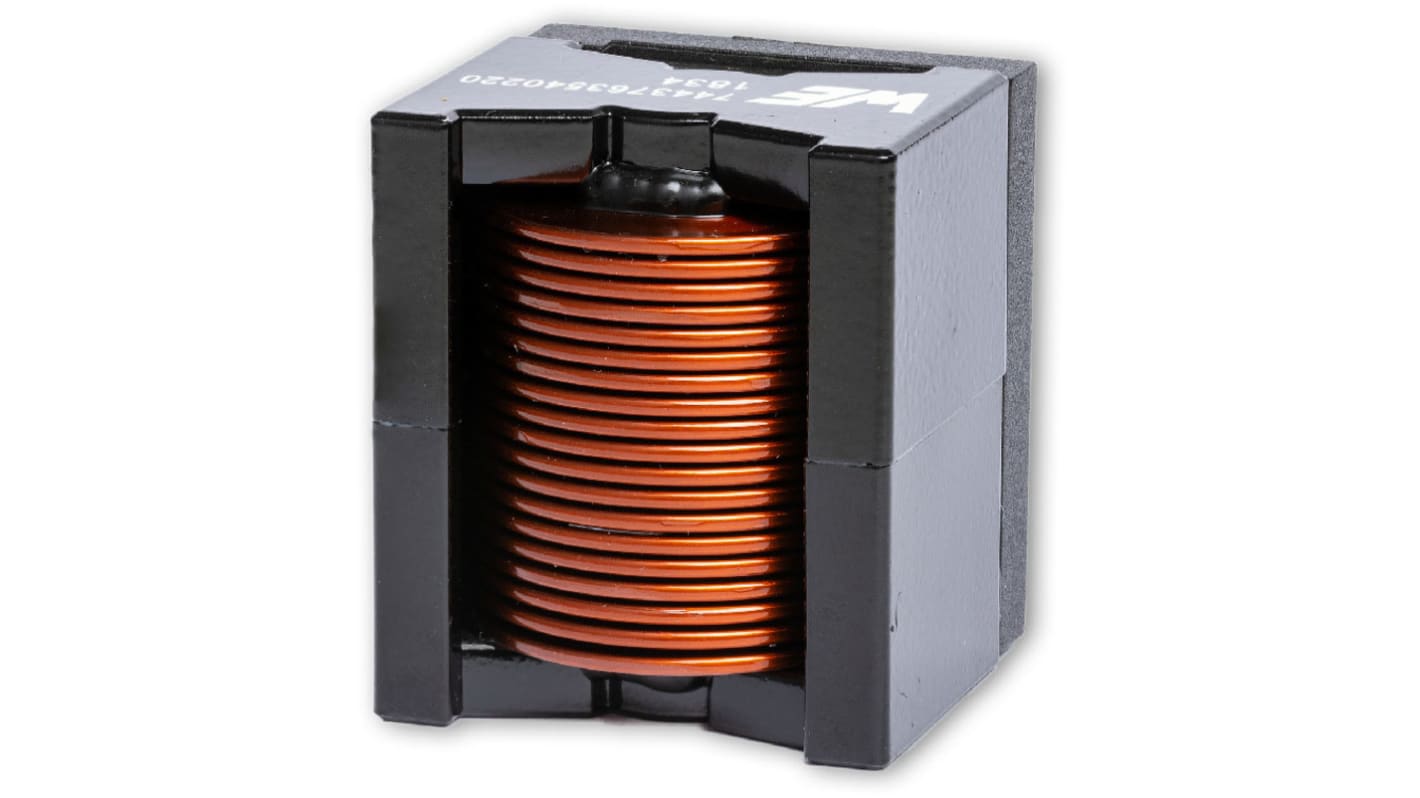

Wurth 4.7 μH ±20% Manganese Zinc Ferrite Leaded Inductor, Max SRF:28MHz, 28.7A Idc, 2.4mΩ Rdc, WE-HCFT

View this category

Subtotal (1 tray of 40 units)*

£139.00

(exc. VAT)

£166.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
40 +£3.475£139.00

*price indicative

RS Stock No.:
185-7089
Mfr. Part No.:
7443782012047
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

4.7 μH

Maximum DC Current

28.7A

Mounting Type

Through Hole

Maximum DC Resistance

2.4mΩ

Tolerance

±20%

Length

22mm

Depth

17mm

Height

13.5mm

Dimensions

22 x 17 x 13.5mm

Core Material

Manganese Zinc Ferrite

Maximum Self Resonant Frequency

28MHz

Series

WE-HCFT

Lead Diameter

1.5mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+125°C

Terminal Type

Through Hole
