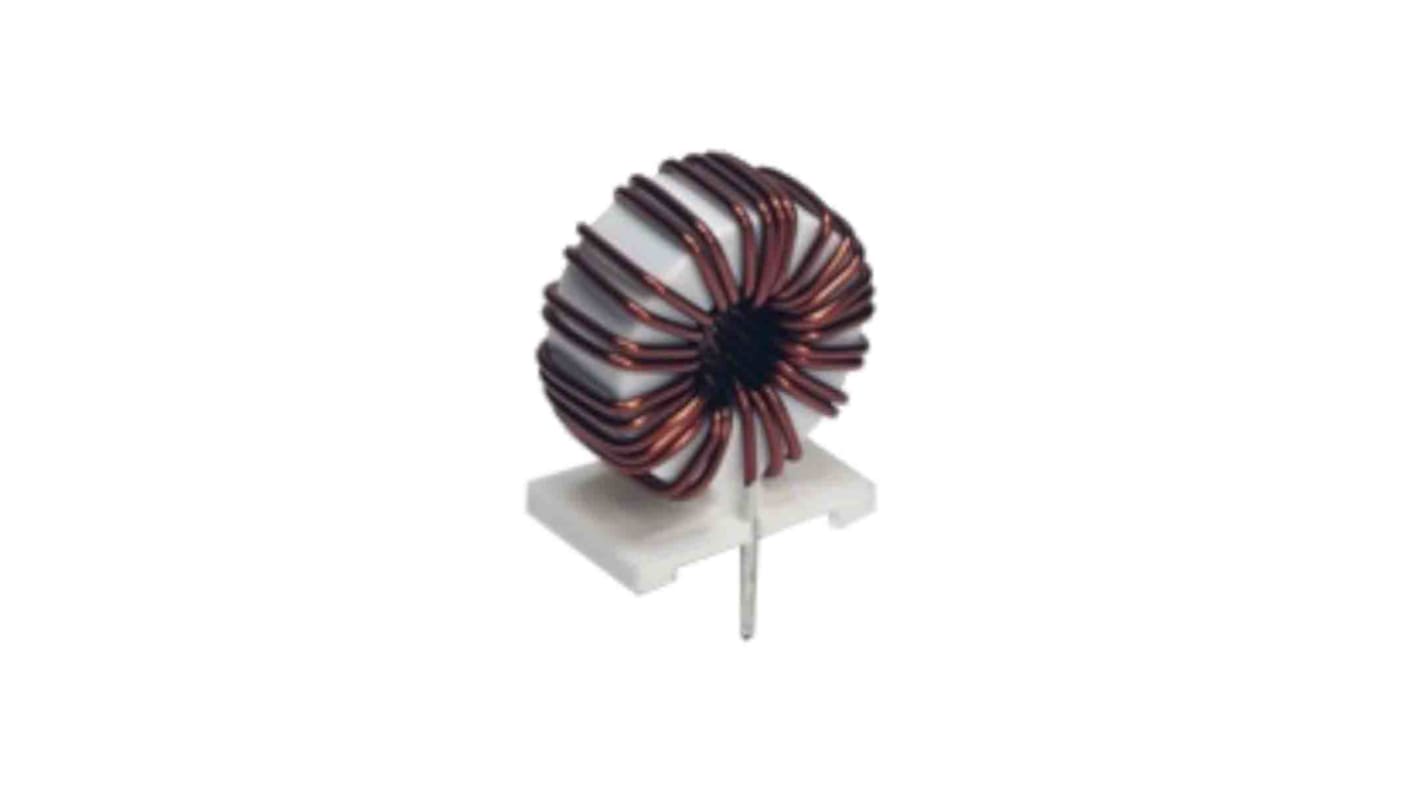

KEMET 250 μH Iron Leaded Inductor, 5A Idc, 0.060mΩ Rdc, SN
- RS Stock No.:
- 181-6042
- Mfr. Part No.:
- SN12-800
- Brand:
- KEMET
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 181-6042
- Mfr. Part No.:
- SN12-800
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 250 μH | |
| Maximum DC Current | 5A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 0.060mΩ | |
| Diameter | 28mm | |
| Depth | 15mm | |
| Dimensions | 28 (Dia.) x 15mm | |
| Core Material | Iron | |
| Lead Pitch | 10mm | |
| Series | SN | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +105°C | |
| Terminal Type | Wire | |
| Lead Diameter | 1mm | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 250 μH | ||
Maximum DC Current 5A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 0.060mΩ | ||
Diameter 28mm | ||
Depth 15mm | ||
Dimensions 28 (Dia.) x 15mm | ||
Core Material Iron | ||
Lead Pitch 10mm | ||
Series SN | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +105°C | ||
Terminal Type Wire | ||
Lead Diameter 1mm | ||
- COO (Country of Origin):
- VN
The KEMET SN12-800 is a SN series AC line filter type mounting through hole leaded inductor and core material is iron.
Inductance 250 μH
RoHS: Yes
Miscellaneous: Temperature Rise Maximum: 45 K
RoHS: Yes
Miscellaneous: Temperature Rise Maximum: 45 K
