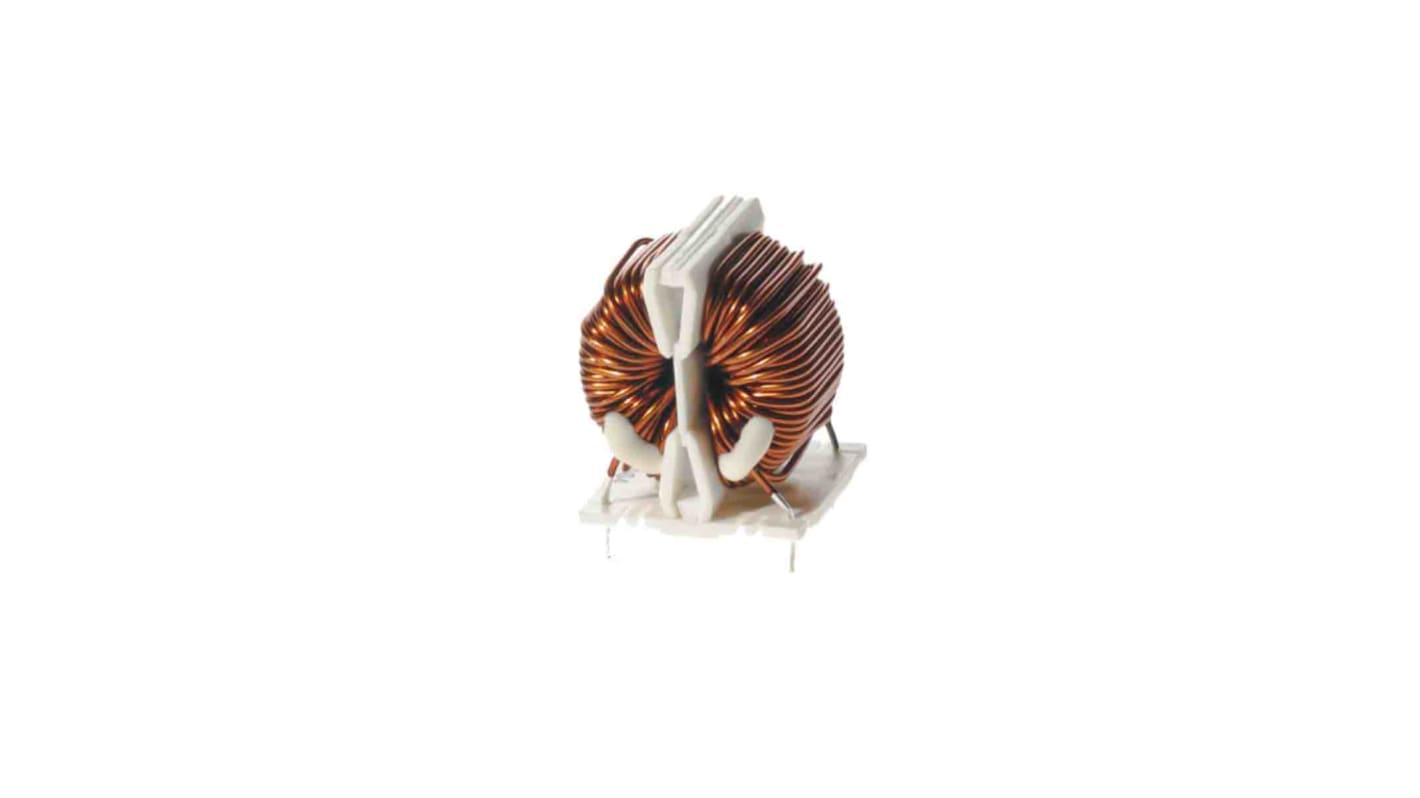

KEMET 2.5 μH Iron Leaded Inductor, 3A Idc, 0.025mΩ Rdc, SN
- RS Stock No.:
- 181-6030
- Mfr. Part No.:
- SN3-100
- Brand:
- KEMET
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 181-6030
- Mfr. Part No.:
- SN3-100
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 2.5 μH | |
| Maximum DC Current | 3A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 0.025mΩ | |
| Diameter | 8.8mm | |
| Depth | 5.5mm | |
| Dimensions | 8.8 (Dia.) x 5.5mm | |
| Core Material | Iron | |
| Lead Pitch | 5.5mm | |
| Series | SN | |
| Minimum Operating Temperature | -25°C | |
| Lead Diameter | 0.45mm | |
| Terminal Type | Wire | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 2.5 μH | ||
Maximum DC Current 3A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 0.025mΩ | ||
Diameter 8.8mm | ||
Depth 5.5mm | ||
Dimensions 8.8 (Dia.) x 5.5mm | ||
Core Material Iron | ||
Lead Pitch 5.5mm | ||
Series SN | ||
Minimum Operating Temperature -25°C | ||
Lead Diameter 0.45mm | ||
Terminal Type Wire | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- VN
