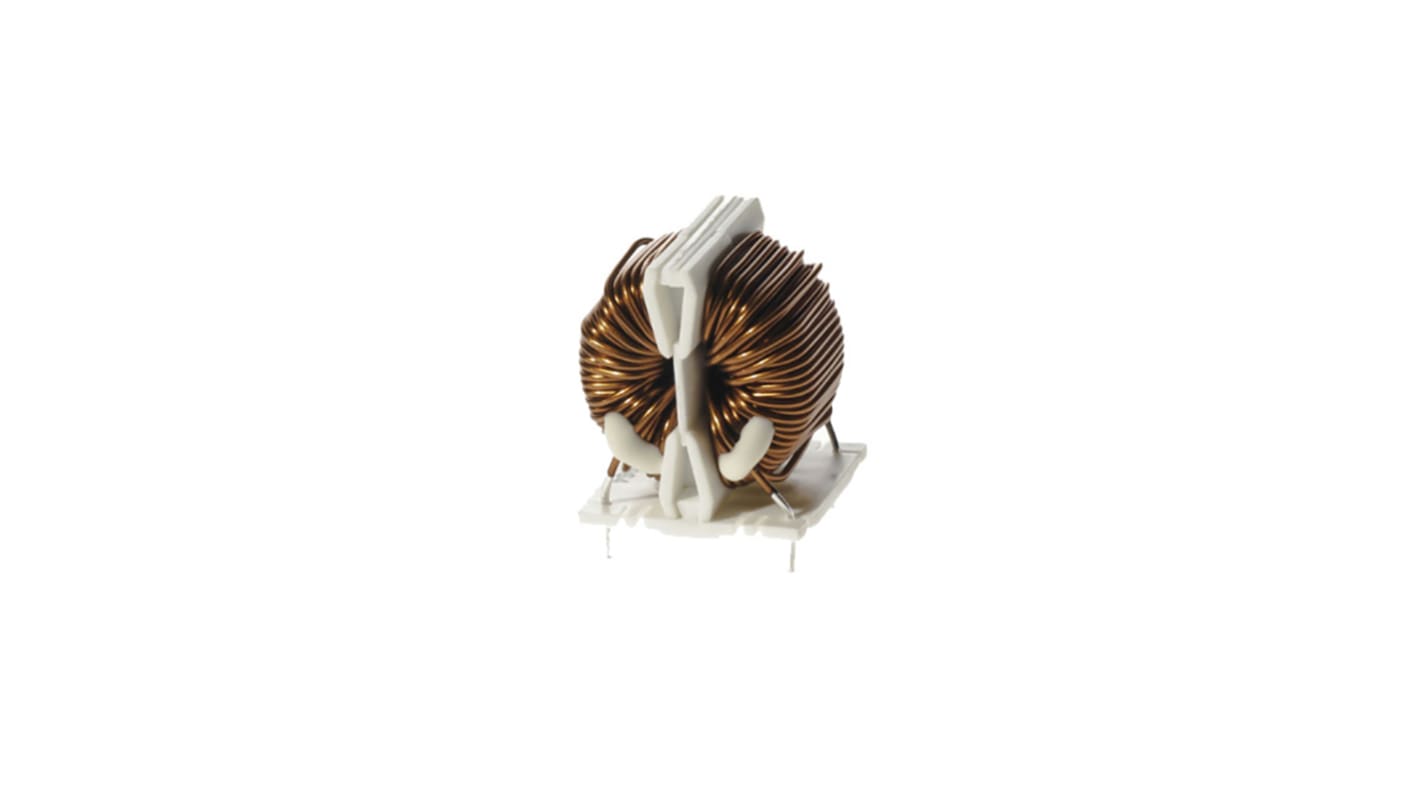

KEMET 64 μH Iron Common Mode Choke, 1A Idc, 110mΩ Rdc, SN-JB

RS Stock No.:: 181-6017
Mfr. Part No.:: SN5-450JB
Brand:: KEMET

KEMET 64 μH Iron Common Mode Choke, 1A Idc, 110mΩ Rdc, SN-JB

Available to back order for despatch when stock is available

Added

Price Each (In a Pack of 5)

£3.194

(exc. VAT)

£3.833

(inc. VAT)

Units	Per unit	Per Pack*
5 - 45	£3.194	£15.97
50 - 95	£3.002	£15.01
100 - 195	£2.78	£13.90
200 - 395	£2.618	£13.09
400 +	£2.376	£11.88
*price indicative

RS Stock No.:: 181-6017
Mfr. Part No.:: SN5-450JB
Brand:: KEMET

Technical Reference

Legislation and Compliance

COO (Country of Origin):: VN

Product Details

The KEMET SN-JB coils are normal mode choke coil with wide variety of characteristic. These coils are designed with our proprietary Fe dust cores and are useful in various noise counter measure fields.

Proprietary Fe dust core material
Excellent for normal mode noise countermeasures
Large core loss
Wide variety of sizes and specifications
Operating temperature range from −25°C to +105°C
Home appliances
Power supplies

Specifications

Attribute	Value
Inductance	64 μH
Maximum DC Current	1A
Mounting Type	Through Hole
Maximum DC Resistance	110mΩ
Length	13.5mm
Depth	9.2mm
Height	15mm
Dimensions	13.5 x 9.2 x 15mm
Core Material	Iron
Lead Pitch	10mm
Series	SN-JB
Maximum Operating Temperature	+105°C
Lead Diameter	0.4mm
Minimum Operating Temperature	-25°C
Terminal Type	Wire
