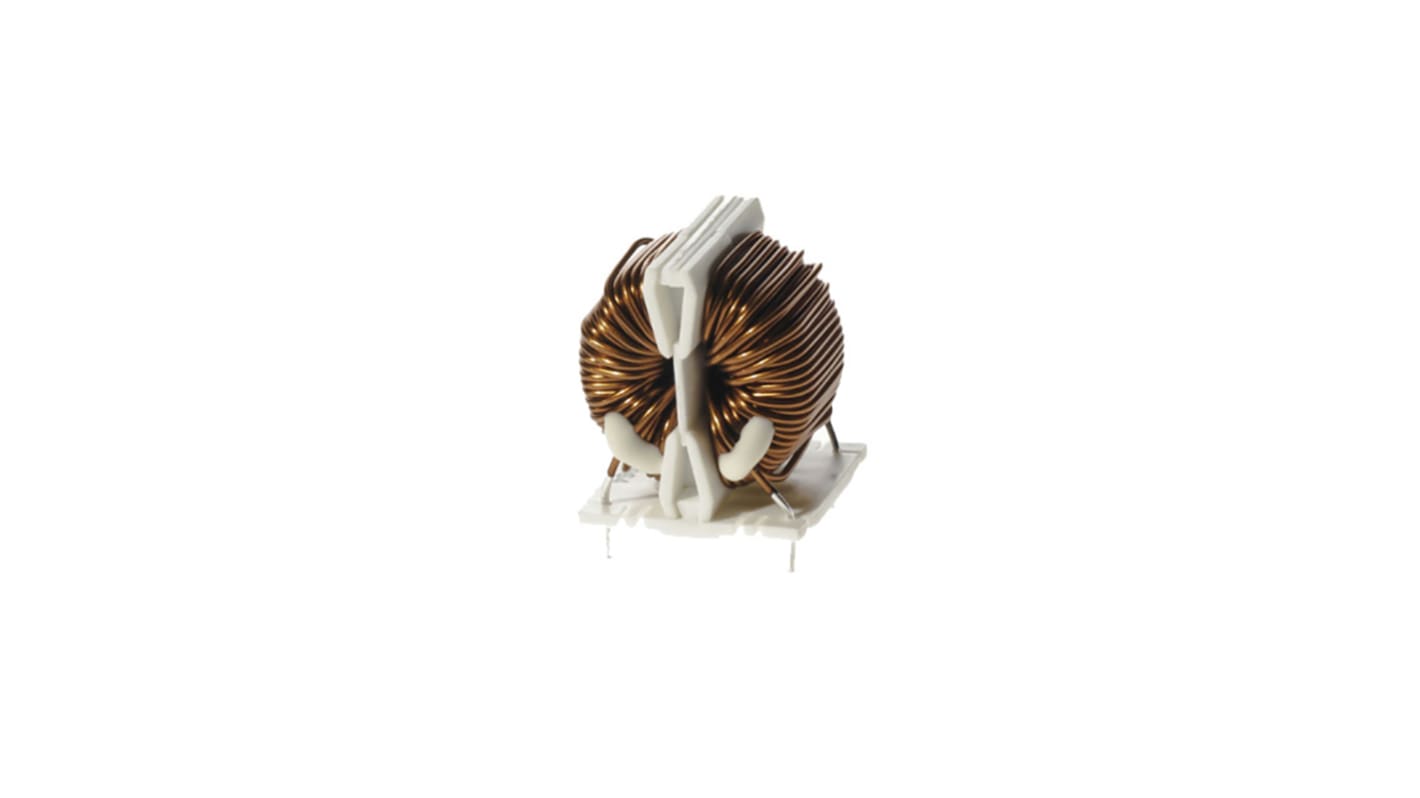

KEMET 64 μH Iron Common Mode Choke, 1A Idc, 110mΩ Rdc, SN-JB
- RS Stock No.:
- 181-5813
- Mfr. Part No.:
- SN5-450JB
- Brand:
- KEMET
Discontinued
- RS Stock No.:
- 181-5813
- Mfr. Part No.:
- SN5-450JB
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 64 μH | |
| Maximum DC Current | 1A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 110mΩ | |
| Length | 13.5mm | |
| Depth | 9.2mm | |
| Height | 15mm | |
| Dimensions | 13.5 x 9.2 x 15mm | |
| Core Material | Iron | |
| Lead Pitch | 10mm | |
| Series | SN-JB | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +105°C | |
| Lead Diameter | 0.4mm | |
| Terminal Type | Wire | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 64 μH | ||
Maximum DC Current 1A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 110mΩ | ||
Length 13.5mm | ||
Depth 9.2mm | ||
Height 15mm | ||
Dimensions 13.5 x 9.2 x 15mm | ||
Core Material Iron | ||
Lead Pitch 10mm | ||
Series SN-JB | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +105°C | ||
Lead Diameter 0.4mm | ||
Terminal Type Wire | ||
- COO (Country of Origin):
- VN
The KEMET SN-JB coils are normal mode choke coil with wide variety of characteristic. These coils are designed with our proprietary Fe dust cores and are useful in various noise counter measure fields.
Proprietary Fe dust core material
Excellent for normal mode noise countermeasures
Large core loss
Wide variety of sizes and specifications
Operating temperature range from −25°C to +105°C
Home appliances
Power supplies
Excellent for normal mode noise countermeasures
Large core loss
Wide variety of sizes and specifications
Operating temperature range from −25°C to +105°C
Home appliances
Power supplies
