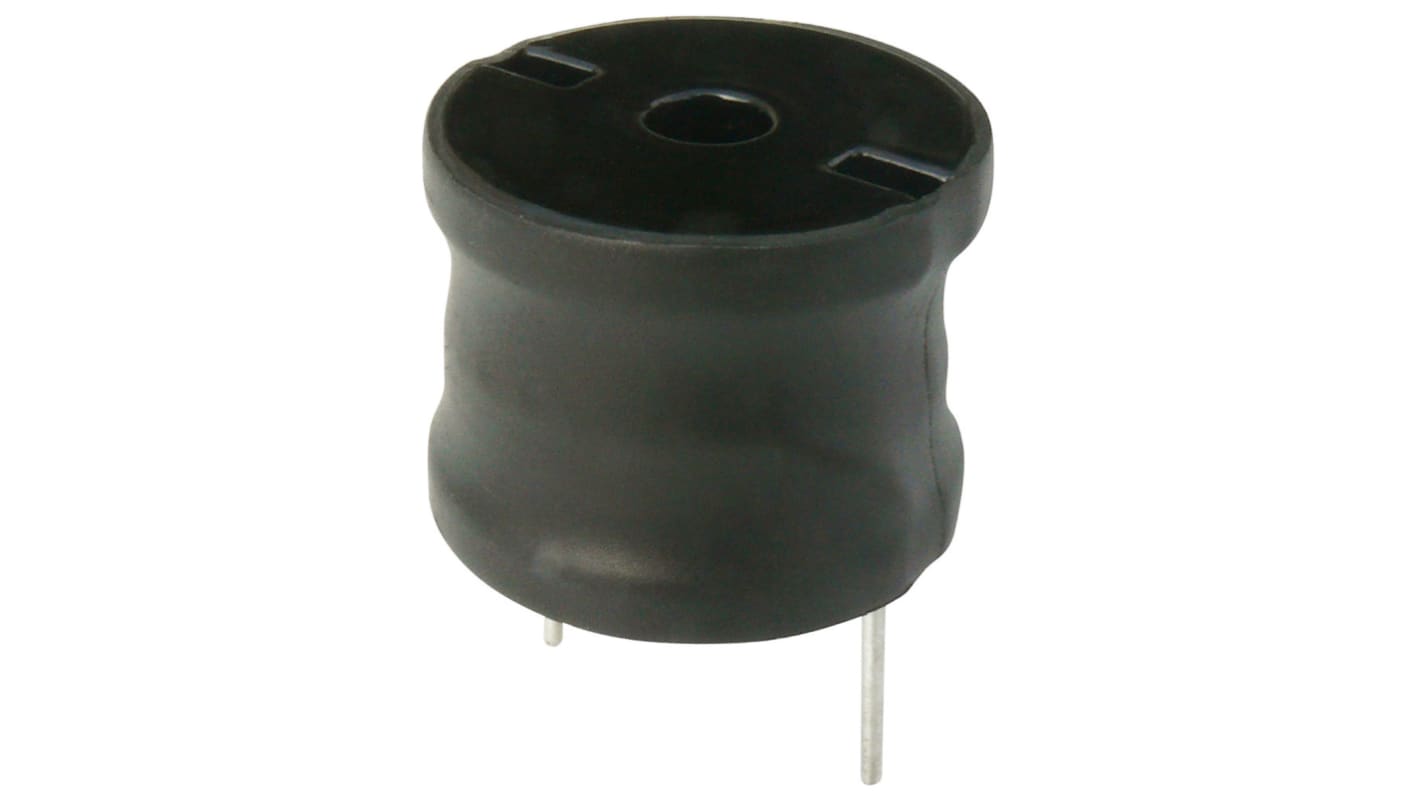

Bourns 100 μH ±10% Ferrite Bobbin Core Bobbin Inductor, 10.5A Idc, 25mΩ Rdc, 1140
- RS Stock No.:
- 172-8696
- Mfr. Part No.:
- 1140-101K-RC
- Brand:
- Bourns
Save 6% when you buy 700 units
Subtotal (1 bag of 70 units)*
£435.47
(exc. VAT)
£522.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 420 unit(s) ready to ship
- Plus 999,999,560 unit(s) shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
70 - 280 | £6.221 | £435.47 |
350 - 630 | £5.941 | £415.87 |
700 + | £5.792 | £405.44 |
*price indicative
- RS Stock No.:
- 172-8696
- Mfr. Part No.:
- 1140-101K-RC
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bourns | |
Inductance | 100 μH | |
Maximum DC Current | 10.5A | |
Mounting Type | Radial | |
Maximum DC Resistance | 25mΩ | |
Tolerance | ±10% | |
Diameter | 1.5mm | |
Height | 1.03mm | |
Dimensions | 1.5 (Dia.) x 1.03mm | |
Core Material | Ferrite Bobbin Core | |
Lead Pitch | 1.15mm | |
Series | 1140 | |
Lead Diameter | 0.064mm | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -55°C | |
Terminal Type | Radial Leaded | |
Select all | ||
---|---|---|
Brand Bourns | ||
Inductance 100 μH | ||
Maximum DC Current 10.5A | ||
Mounting Type Radial | ||
Maximum DC Resistance 25mΩ | ||
Tolerance ±10% | ||
Diameter 1.5mm | ||
Height 1.03mm | ||
Dimensions 1.5 (Dia.) x 1.03mm | ||
Core Material Ferrite Bobbin Core | ||
Lead Pitch 1.15mm | ||
Series 1140 | ||
Lead Diameter 0.064mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
Terminal Type Radial Leaded | ||
- COO (Country of Origin):
- CN
Bourns 1140 Series High Current Chokes
The 1140 series from Bourns are fixed inductors (chokes) that feature very high current capacity. Constructed with a ferrite bobbin core with an epoxy coating, these high current chokes also have VW-1 rated shrink tubing to cover the winding. These high current chokes are self-leaded, with fixed lead spacing and a centre hole that enables mechanical mounting.
2500 Vrms dielectric withstanding voltage from terminal to shrink tube cover
1000 Vrms dielectric withstanding voltage from terminal to core
1000 Vrms dielectric withstanding voltage from terminal to core
Note
The rated current causes a temperature rise of +50°C maximum and a maximum inductance drop of 5%.
