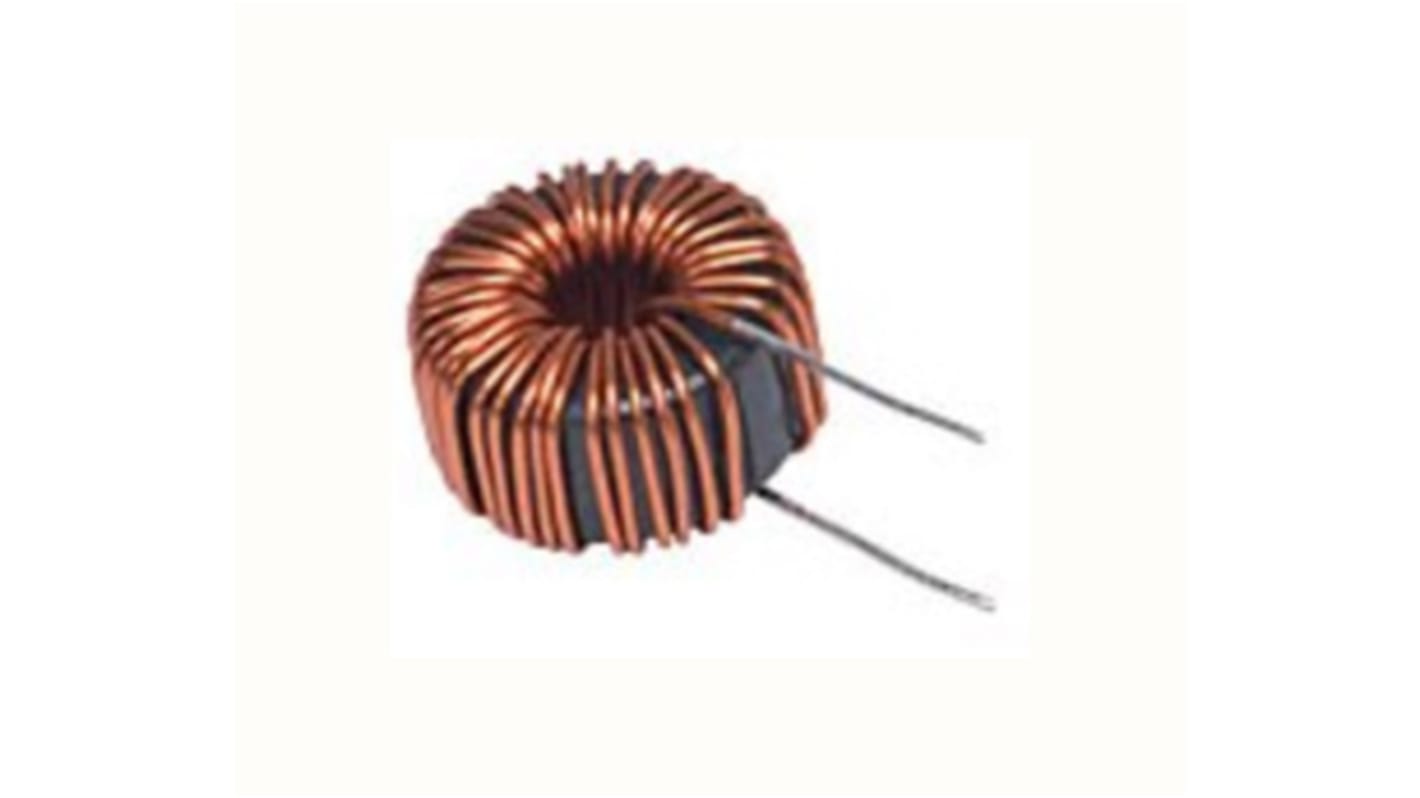

Tamura 30 μH ±25% Ferrite Leaded Inductor, 10A Idc, 9mΩ Rdc, NAC-10
- RS Stock No.:
- 153-6900
- Mfr. Part No.:
- NAC-10-0031
- Brand:
- Tamura
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 153-6900
- Mfr. Part No.:
- NAC-10-0031
- Brand:
- Tamura
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tamura | |
| Inductance | 30 μH | |
| Maximum DC Current | 10A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 9mΩ | |
| Tolerance | ±25% | |
| Diameter | 29mm | |
| Height | 19mm | |
| Dimensions | 29 (Dia.) x 19mm | |
| Core Material | Ferrite | |
| Lead Pitch | 19mm | |
| Series | NAC-10 | |
| Lead Diameter | 1mm | |
| Terminal Type | Wire | |
Select all | ||
|---|---|---|
Brand Tamura | ||
Inductance 30 μH | ||
Maximum DC Current 10A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 9mΩ | ||
Tolerance ±25% | ||
Diameter 29mm | ||
Height 19mm | ||
Dimensions 29 (Dia.) x 19mm | ||
Core Material Ferrite | ||
Lead Pitch 19mm | ||
Series NAC-10 | ||
Lead Diameter 1mm | ||
Terminal Type Wire | ||
- COO (Country of Origin):
- JP
Tamura's choke coils being manufactured through the study on unique features of carefully selected magnetic metal materials, under the highest levels of magnetic characteristics and electric designing technology. Magnetic metal materials provide a high saturation magnetic flux density and good stability for the humidity, which are suitable to make the cores in light weight and miniature size.
Amorphous iron cores with precised gap are used in the coil. Small size/light weight can be designed.
Low core-loss at high frequency.
Designable for small size/light weight compared with the ferrite core and dust core.
Coils for a high-power can be designed.
APPLICATIONS:For smoothing switching power supplies output.
Designable for small size/light weight compared with the ferrite core and dust core.
Coils for a high-power can be designed.
APPLICATIONS:For smoothing switching power supplies output.
