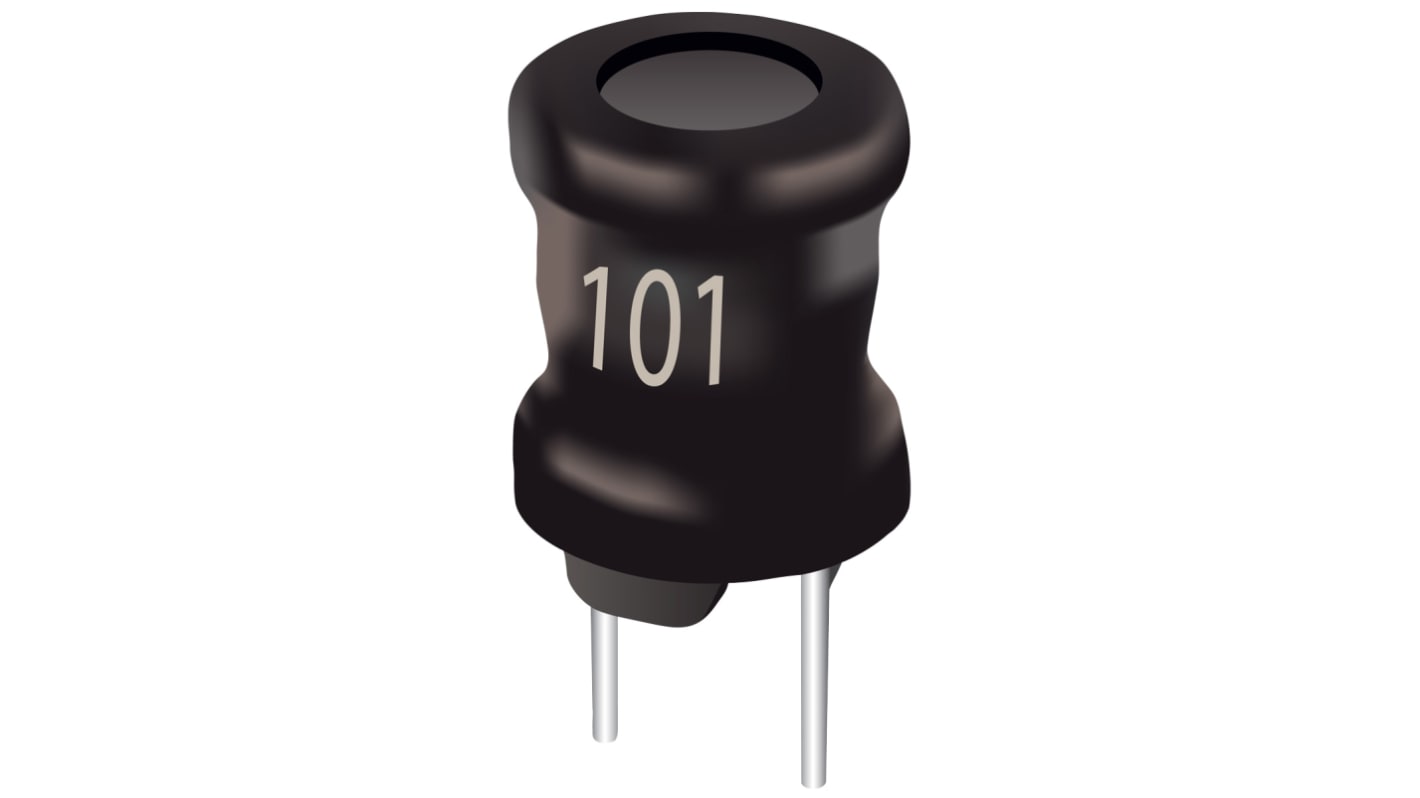

Bourns 1 μH ±10% Ferrite Leaded Inductor, Max SRF:150MHz, Q:20, 10A Idc, 13mΩ Rdc, RLB0913
- RS Stock No.:
- 134-9994
- Mfr. Part No.:
- RLB0913-1R0K
- Brand:
- Bourns
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 134-9994
- Mfr. Part No.:
- RLB0913-1R0K
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 1 μH | |
| Maximum DC Current | 10A | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 13mΩ | |
| Tolerance | ±10% | |
| Diameter | 8.5mm | |
| Height | 12.5mm | |
| Dimensions | 8.5 (Dia.) x 12.5mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 150MHz | |
| Lead Pitch | 5mm | |
| Series | RLB0913 | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Minimum Quality Factor | 20 | |
| Terminal Type | Radial Leaded | |
| Lead Diameter | 0.65mm | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 1 μH | ||
Maximum DC Current 10A | ||
Mounting Type Radial | ||
Maximum DC Resistance 13mΩ | ||
Tolerance ±10% | ||
Diameter 8.5mm | ||
Height 12.5mm | ||
Dimensions 8.5 (Dia.) x 12.5mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 150MHz | ||
Lead Pitch 5mm | ||
Series RLB0913 | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Minimum Quality Factor 20 | ||
Terminal Type Radial Leaded | ||
Lead Diameter 0.65mm | ||
Bourns RLB0913 Series Radial Lead Inductors
Bourns RLB0913 Radial leaded non-shielded inductors offer high saturation current up to 10A, with an inductance range of 1 μH to 100 mH. These leaded inductors feature fixed lead spacing and shrink tubing protected winding. These inductors are ideal for use in DC-DC converters, power supplies, output chokes and electromagnetic interference/radio frequency interference (EMI/RFI) filters.
