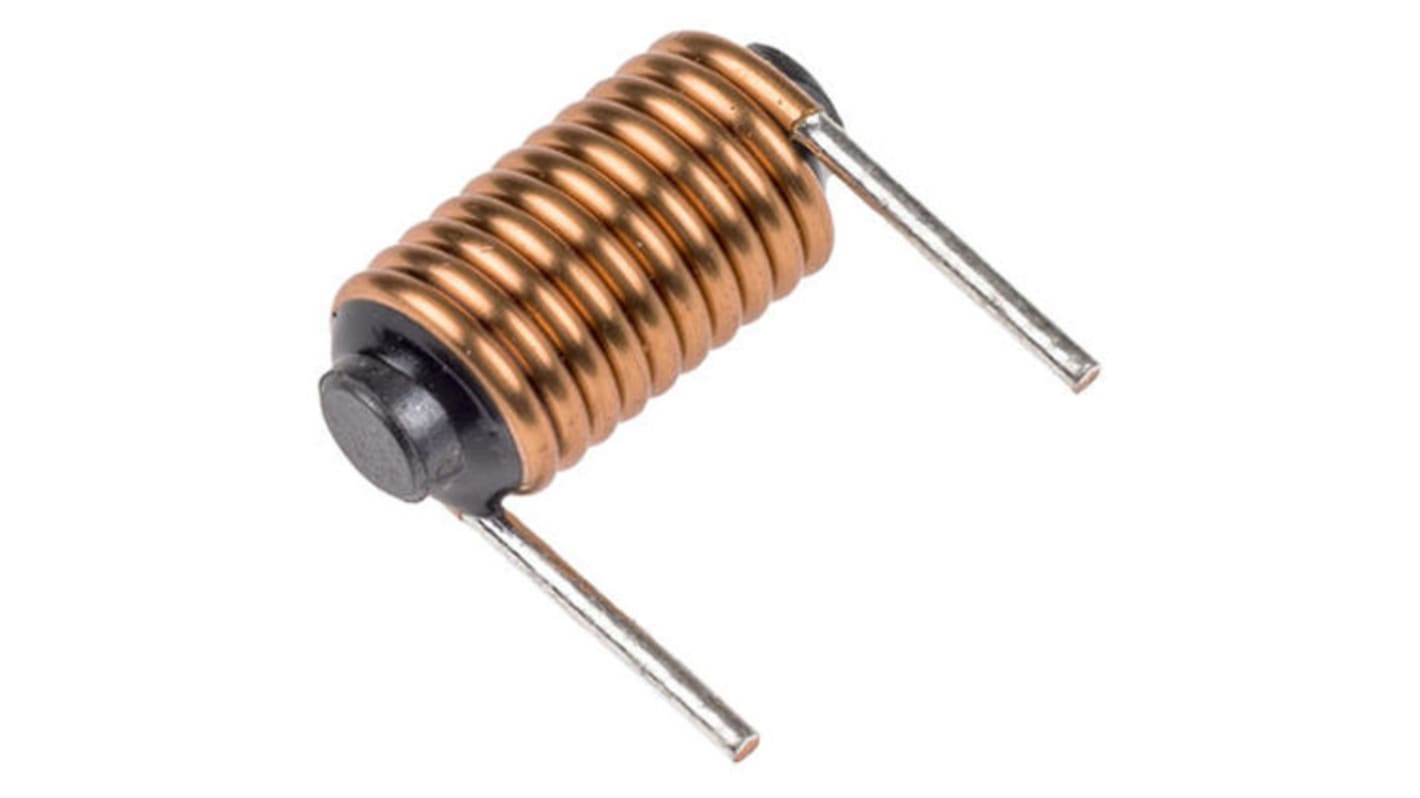

Wurth 1.8 μH ±20% Ferrite Leaded Inductor, 5A Idc, 6mΩ Rdc, WE SD
- RS Stock No.:
- 124-1892P
- Mfr. Part No.:
- 7447101
- Brand:
- Wurth Elektronik
Save 0% when you buy 50 units
Subtotal 50 units (supplied on a reel)*. Quantities below 150 on continuous strip
£68.00
(exc. VAT)
£81.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 100 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 + | £1.36 |
*price indicative
- RS Stock No.:
- 124-1892P
- Mfr. Part No.:
- 7447101
- Brand:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 1.8 μH | |
| Maximum DC Current | 5A | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 6mΩ | |
| Tolerance | ±20% | |
| Length | 15mm | |
| Depth | 7.4mm | |
| Height | 4mm | |
| Dimensions | 15 x 7.4 x 4mm | |
| Core Material | Ferrite | |
| Lead Pitch | 10.8mm | |
| Series | WE SD | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Lead Diameter | 1mm | |
| Terminal Type | Through Hole | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 1.8 μH | ||
Maximum DC Current 5A | ||
Mounting Type Radial | ||
Maximum DC Resistance 6mΩ | ||
Tolerance ±20% | ||
Length 15mm | ||
Depth 7.4mm | ||
Height 4mm | ||
Dimensions 15 x 7.4 x 4mm | ||
Core Material Ferrite | ||
Lead Pitch 10.8mm | ||
Series WE SD | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Lead Diameter 1mm | ||
Terminal Type Through Hole | ||
