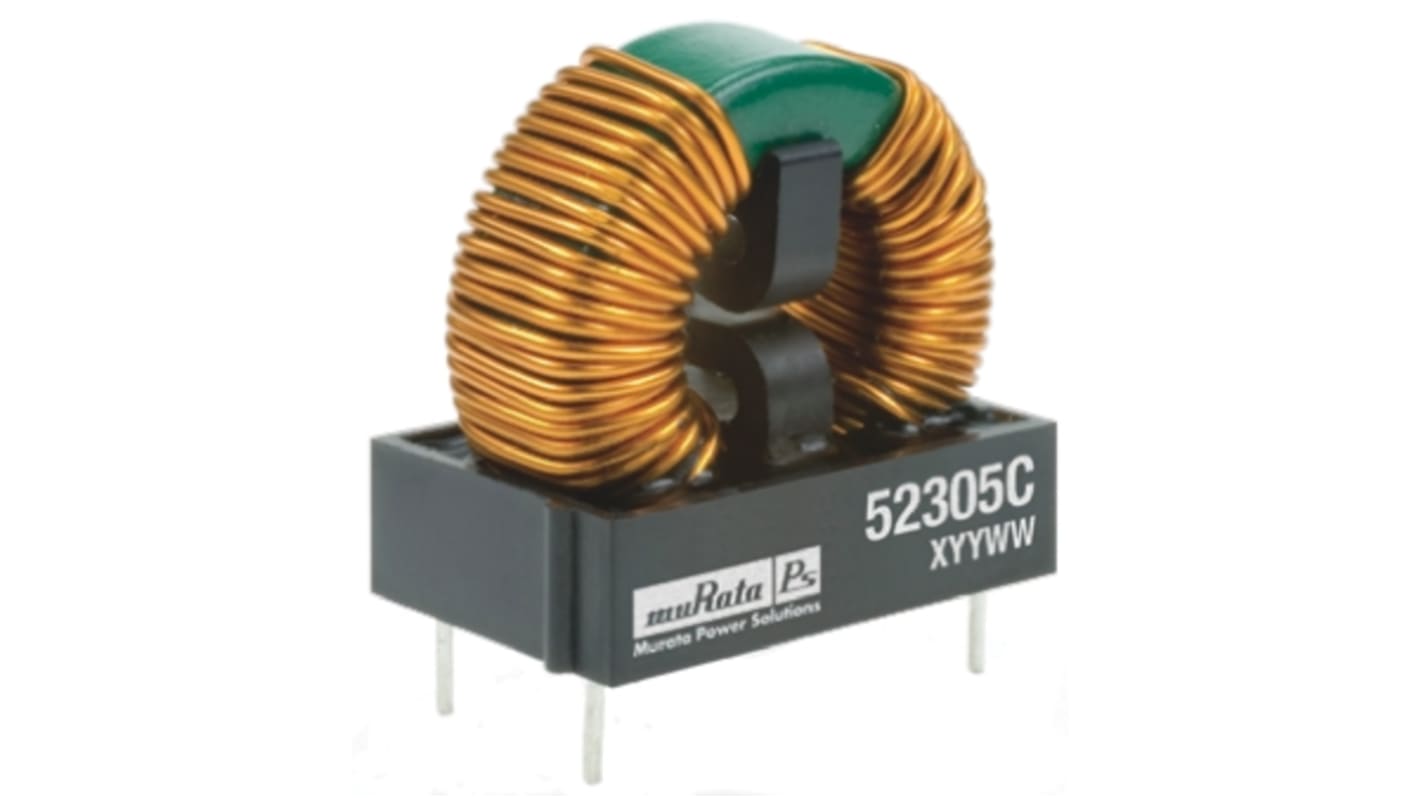

Murata 3 mH Common Mode Choke, Max SRF:100MHz, 3.5A Idc, 45mΩ Rdc, 5200
- RS Stock No.:
- 106-8889
- Mfr. Part No.:
- 52305C
- Brand:
- Murata Power Solutions
Subtotal (1 tray of 40 units)*
£101.56
(exc. VAT)
£121.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 40 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
40 + | £2.539 | £101.56 |
*price indicative
- RS Stock No.:
- 106-8889
- Mfr. Part No.:
- 52305C
- Brand:
- Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Murata Power Solutions | |
Inductance | 3 mH | |
Maximum DC Current | 3.5A | |
Mounting Type | Radial | |
Maximum DC Resistance | 45mΩ | |
Length | 26.25mm | |
Depth | 16.3mm | |
Height | 41mm | |
Dimensions | 26.25 x 16.3 x 41mm | |
Maximum Self Resonant Frequency | 100MHz | |
Lead Pitch | 20.32mm | |
Series | 5200 | |
Maximum Operating Temperature | +125°C | |
Lead Diameter | 1mm | |
Terminal Type | Through Hole | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Murata Power Solutions | ||
Inductance 3 mH | ||
Maximum DC Current 3.5A | ||
Mounting Type Radial | ||
Maximum DC Resistance 45mΩ | ||
Length 26.25mm | ||
Depth 16.3mm | ||
Height 41mm | ||
Dimensions 26.25 x 16.3 x 41mm | ||
Maximum Self Resonant Frequency 100MHz | ||
Lead Pitch 20.32mm | ||
Series 5200 | ||
Maximum Operating Temperature +125°C | ||
Lead Diameter 1mm | ||
Terminal Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
