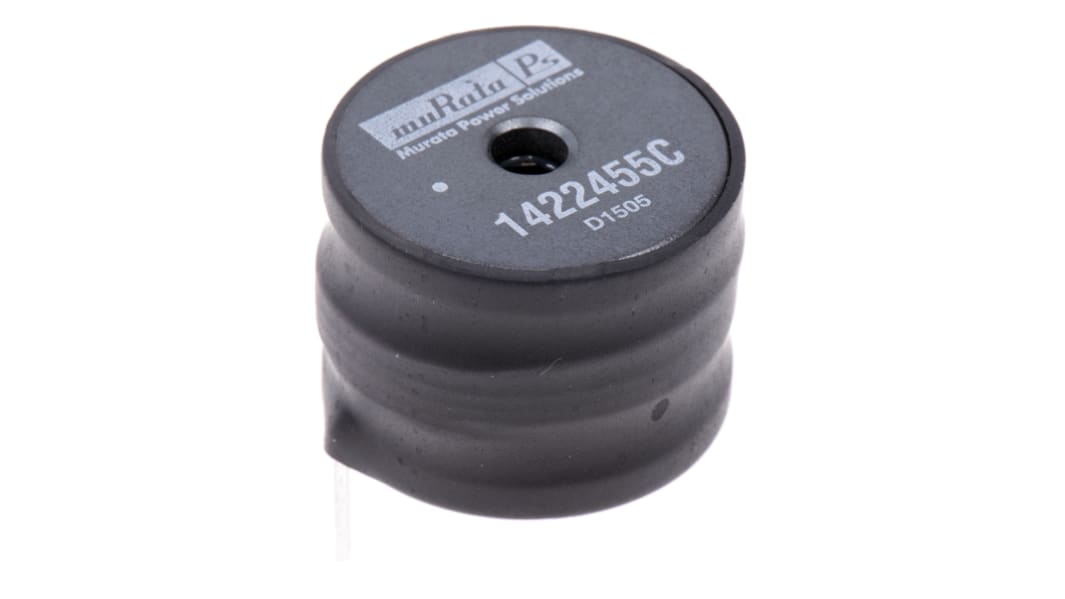

Murata 220 μH ±10% Bobbin Inductor, Max SRF:2.2MHz, Q:30, 5.5A Idc, 62mΩ Rdc, 1400
- RS Stock No.:
- 106-7740
- Mfr. Part No.:
- 1422455C
- Brand:
- Murata Power Solutions
Available to back order for despatch 02/07/2024
Added
Price Each (In a Box of 15)
£3.234
(exc. VAT)
£3.881
(inc. VAT)
| Units | Per unit | Per Box* |
| 15 - 135 | £3.234 | £48.51 |
| 150 - 360 | £2.978 | £44.67 |
| 375 - 735 | £2.787 | £41.805 |
| 750 - 1485 | £2.649 | £39.735 |
| 1500 + | £2.535 | £38.025 |
| *price indicative | ||
- RS Stock No.:
- 106-7740
- Mfr. Part No.:
- 1422455C
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
Product Details
Murata 1400 Series High Current Radial Inductors
Designed for use in power line applications such as switching regulators, filters and suppression circuits
Constructed from high saturation flux density material enabling use in high current applications
Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
Terminated with easy-strip pre-tinned enamelled copper leads
Lead length 10mm
Operating temperature: -40 → +85°C
Inductance Tolerance: ±10%
Constructed from high saturation flux density material enabling use in high current applications
Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
Terminated with easy-strip pre-tinned enamelled copper leads
Lead length 10mm
Operating temperature: -40 → +85°C
Inductance Tolerance: ±10%
Murata Leaded Inductors (Chokes)
Specifications
Attribute | Value |
|---|---|
| Inductance | 220 μH |
| Maximum DC Current | 5.5A |
| Mounting Type | Radial |
| Maximum DC Resistance | 62mΩ |
| Tolerance | ±10% |
| Diameter | 29.8mm |
| Length | 32.1mm |
| Depth | 29.8mm |
| Height | 21.8mm |
| Dimensions | 29.8 (Dia.) x 21.8mm |
| Maximum Self Resonant Frequency | 2.2MHz |
| Lead Pitch | 29.1mm |
| Series | 1400 |
| Lead Diameter | 1.14mm |
| Terminal Type | Radial Leaded |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Minimum Quality Factor | 30 |
