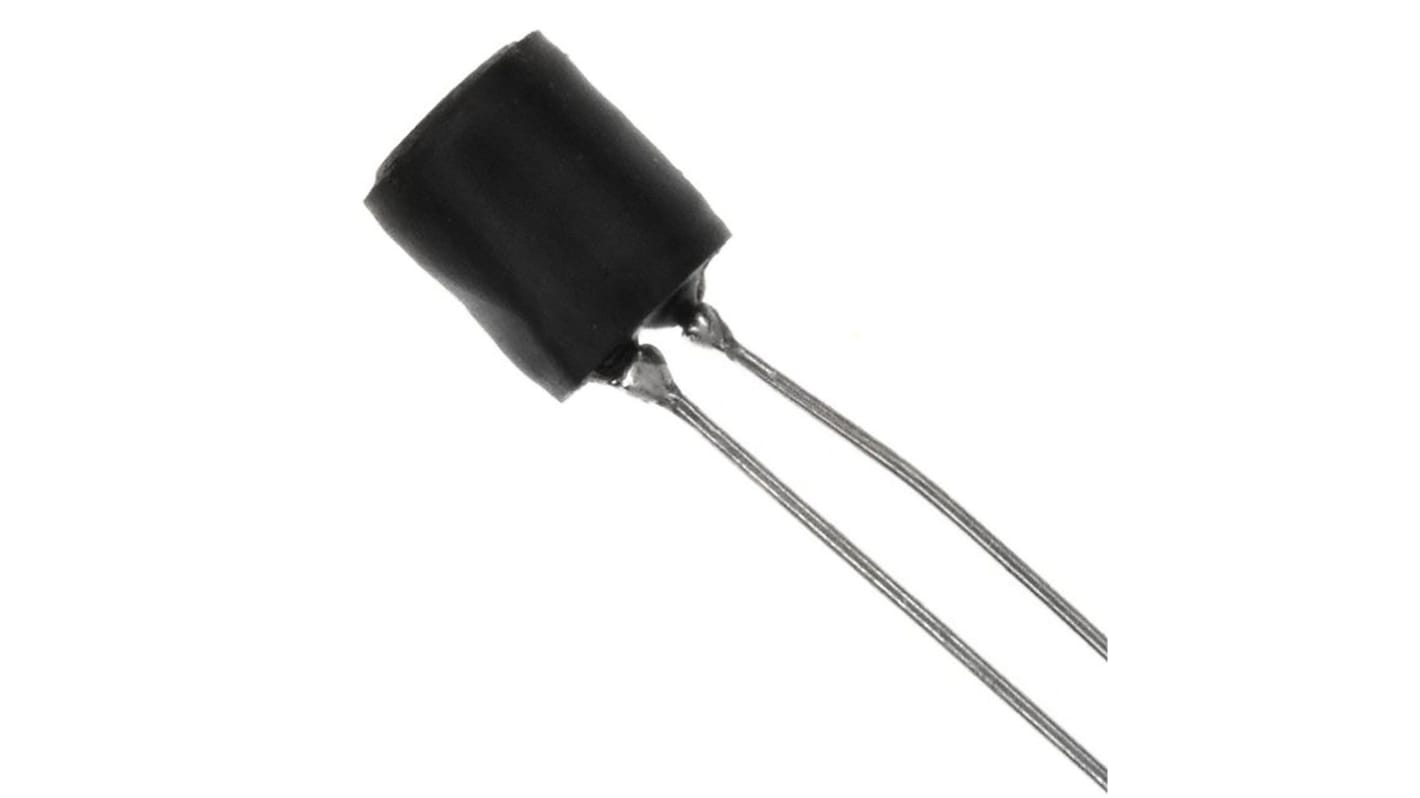

Murata 22 μH ±10% Radial Inductor, Max SRF:17MHz, Q:50, 1.08A Idc, 90mΩ Rdc, 2200R
- RS Stock No.:
- 240-602
- Mfr. Part No.:
- 22R223C
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 pack of 10 units)*
£4.97
(exc. VAT)
£5.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 770 unit(s) ready to ship
- Plus 50 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 40 | £0.497 | £4.97 |
50 - 90 | £0.467 | £4.67 |
100 - 190 | £0.444 | £4.44 |
200 - 490 | £0.402 | £4.02 |
500 + | £0.388 | £3.88 |
*price indicative
- RS Stock No.:
- 240-602
- Mfr. Part No.:
- 22R223C
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Murata Power Solutions | |
Inductance | 22 μH | |
Maximum DC Current | 1.08A | |
Mounting Type | Radial | |
Maximum DC Resistance | 90mΩ | |
Tolerance | ±10% | |
Diameter | 6.5mm | |
Length | 45mm | |
Height | 10.5mm | |
Dimensions | 6.5 (Dia) x 10.5mm | |
Maximum Self Resonant Frequency | 17MHz | |
Lead Pitch | 3mm | |
Series | 2200R | |
Maximum Operating Temperature | +70°C | |
Terminal Type | Radial Leaded | |
Minimum Quality Factor | 50 | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Murata Power Solutions | ||
Inductance 22 μH | ||
Maximum DC Current 1.08A | ||
Mounting Type Radial | ||
Maximum DC Resistance 90mΩ | ||
Tolerance ±10% | ||
Diameter 6.5mm | ||
Length 45mm | ||
Height 10.5mm | ||
Dimensions 6.5 (Dia) x 10.5mm | ||
Maximum Self Resonant Frequency 17MHz | ||
Lead Pitch 3mm | ||
Series 2200R | ||
Maximum Operating Temperature +70°C | ||
Terminal Type Radial Leaded | ||
Minimum Quality Factor 50 | ||
Minimum Operating Temperature -25°C | ||
Murata 22R Series Radial Inductor
Resin coated miniature general purpose radial wire ended RF inductors
Their small size makes them particularly suitable for d.c. supply line filtering and low power switching regulator applications
Operating temperature: -25 → +70°C
Height 45mm, Dia. 7.2mm, Lead Dia. 0.6mm
Their small size makes them particularly suitable for d.c. supply line filtering and low power switching regulator applications
Operating temperature: -25 → +70°C
Height 45mm, Dia. 7.2mm, Lead Dia. 0.6mm
