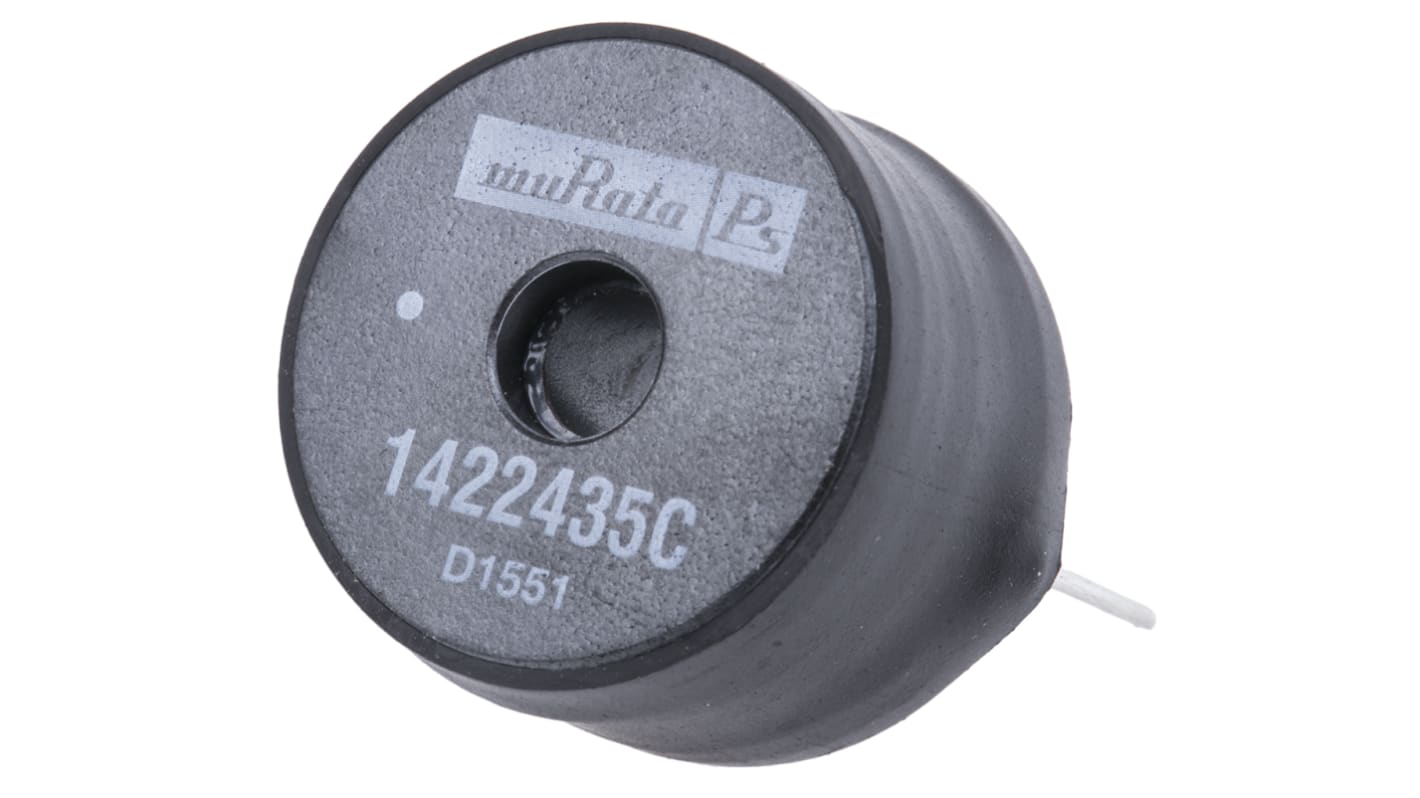

Murata 220 μH ±10% Leaded Inductor, Max SRF:2.8MHz, Q:22, 3.5A Idc, 96mΩ Rdc, 1400
- RS Stock No.:
- 228-422
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 unit)*
£2.10
(exc. VAT)
£2.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 129 unit(s) ready to ship
- Plus 78 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £2.10 |
| 25 - 49 | £1.98 |
| 50 - 99 | £1.87 |
| 100 - 249 | £1.72 |
| 250 + | £1.68 |
*price indicative
- RS Stock No.:
- 228-422
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Inductance | 220 μH | |
| Maximum DC Current | 3.5A | |
| Mounting Type | Axial | |
| Maximum DC Resistance | 96mΩ | |
| Tolerance | ±10% | |
| Length | 27.6mm | |
| Depth | 25.9mm | |
| Height | 15.5mm | |
| Dimensions | 27.6 x 25.9 x 15.5mm | |
| Maximum Self Resonant Frequency | 2.8MHz | |
| Lead Pitch | 23.5mm | |
| Series | 1400 | |
| Maximum Operating Temperature | +85°C | |
| Minimum Quality Factor | 22 | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Inductance 220 μH | ||
Maximum DC Current 3.5A | ||
Mounting Type Axial | ||
Maximum DC Resistance 96mΩ | ||
Tolerance ±10% | ||
Length 27.6mm | ||
Depth 25.9mm | ||
Height 15.5mm | ||
Dimensions 27.6 x 25.9 x 15.5mm | ||
Maximum Self Resonant Frequency 2.8MHz | ||
Lead Pitch 23.5mm | ||
Series 1400 | ||
Maximum Operating Temperature +85°C | ||
Minimum Quality Factor 22 | ||
Minimum Operating Temperature -40°C | ||
Murata 1400 Series High Current Radial Inductors
Designed for use in power line applications such as switching regulators, filters and suppression circuits
Constructed from high saturation flux density material enabling use in high current applications
Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
Terminated with easy-strip pre-tinned enamelled copper leads
Lead length 10mm
Operating temperature: -40 → +85°C
Inductance Tolerance: ±10%
Constructed from high saturation flux density material enabling use in high current applications
Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
Terminated with easy-strip pre-tinned enamelled copper leads
Lead length 10mm
Operating temperature: -40 → +85°C
Inductance Tolerance: ±10%
