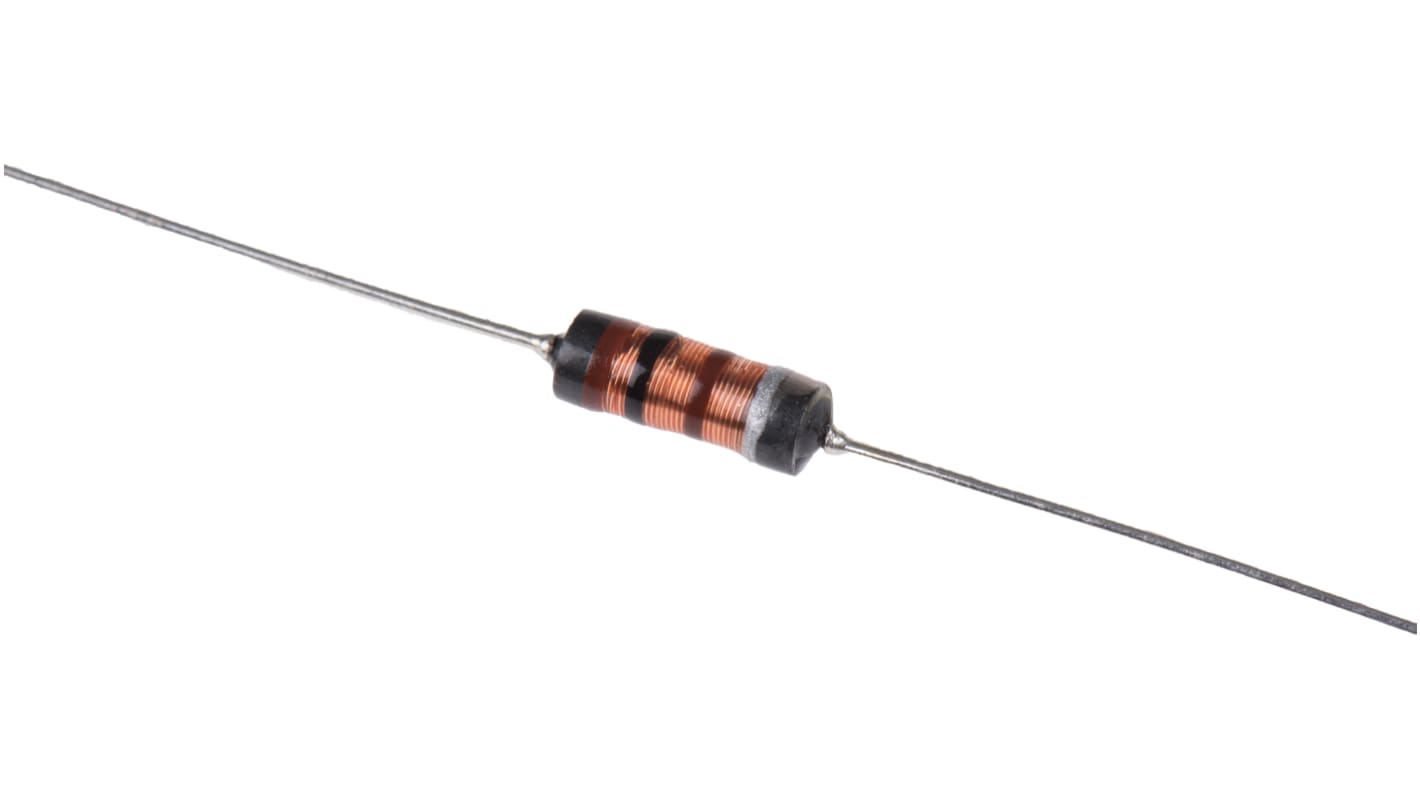

RS PRO 100 μH Ferrite Leaded Inductor, 550mA Idc, 0.67Ω Rdc
- RS Stock No.:
- 228-179
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 228-179
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inductance | 100 μH | |
| Maximum DC Current | 550mA | |
| Mounting Type | Axial | |
| Maximum DC Resistance | 0.67Ω | |
| Diameter | 3.3mm | |
| Length | 67.54mm | |
| Height | 9.14mm | |
| Dimensions | 3.3 (Dia.) x 9.14mm | |
| Core Material | Ferrite | |
| Series | APIE0309 | |
| Terminal Type | Axial Leaded | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Lead Diameter | 0.51mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Inductance 100 μH | ||
Maximum DC Current 550mA | ||
Mounting Type Axial | ||
Maximum DC Resistance 0.67Ω | ||
Diameter 3.3mm | ||
Length 67.54mm | ||
Height 9.14mm | ||
Dimensions 3.3 (Dia.) x 9.14mm | ||
Core Material Ferrite | ||
Series APIE0309 | ||
Terminal Type Axial Leaded | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Lead Diameter 0.51mm | ||
- COO (Country of Origin):
- CN
RS PRO 100 μH Ferrite Leaded Inductor, 550 mA IDC
Use this high-performance inductor from RS PRO for a variety of functions, including suppressing electromagnetic interference (EMI) and power conversion. This component features a ferrite core that increases its inductance to 100 μH for improved performance. This core also reduces the eddy current losses on the inductor.
This inductor has a wire terminal that makes it easy to link to circuits. The component serves a dual purpose of storing charge and resisting the flow of electricity, which means fewer components are needed to build your circuits. Its operating temperature range is between -40°C to +105°C, so you can count on it to last in a wide range of environments and work without fail. It's versatile in its application, from low-frequency power transformers to switching circuits and pi filters.
This inductor has a wire terminal that makes it easy to link to circuits. The component serves a dual purpose of storing charge and resisting the flow of electricity, which means fewer components are needed to build your circuits. Its operating temperature range is between -40°C to +105°C, so you can count on it to last in a wide range of environments and work without fail. It's versatile in its application, from low-frequency power transformers to switching circuits and pi filters.
Features and Benefits
• Ferrite core material
• Diameter of 3.3 mm
• Inductance of 100 μH
• Lead diameter of 0.51 mm
• Case length of 9.14 mm
• Maximum DC current of 550 mA
• Axial mounting
• Wire terminal
• Operating temperature range of -40°C to +105°C
• Diameter of 3.3 mm
• Inductance of 100 μH
• Lead diameter of 0.51 mm
• Case length of 9.14 mm
• Maximum DC current of 550 mA
• Axial mounting
• Wire terminal
• Operating temperature range of -40°C to +105°C
