Keysight Technologies LCR Meter Accessory for Use with E4980A/AL, E4981A, E4990A
- RS Stock No.:
- 245-5599
- Mfr. Part No.:
- 16089B
- Brand:
- Keysight Technologies
Subtotal (1 unit)*
£1,244.32
(exc. VAT)
£1,493.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,244.32 |
*price indicative
- RS Stock No.:
- 245-5599
- Mfr. Part No.:
- 16089B
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Keysight Technologies | |
Accessory Type | odd-shaped components | |
For Use With | E4980A/AL, E4981A, E4990A | |
Select all | ||
---|---|---|
Brand Keysight Technologies | ||
Accessory Type odd-shaped components | ||
For Use With E4980A/AL, E4981A, E4990A | ||
- COO (Country of Origin):
- MY

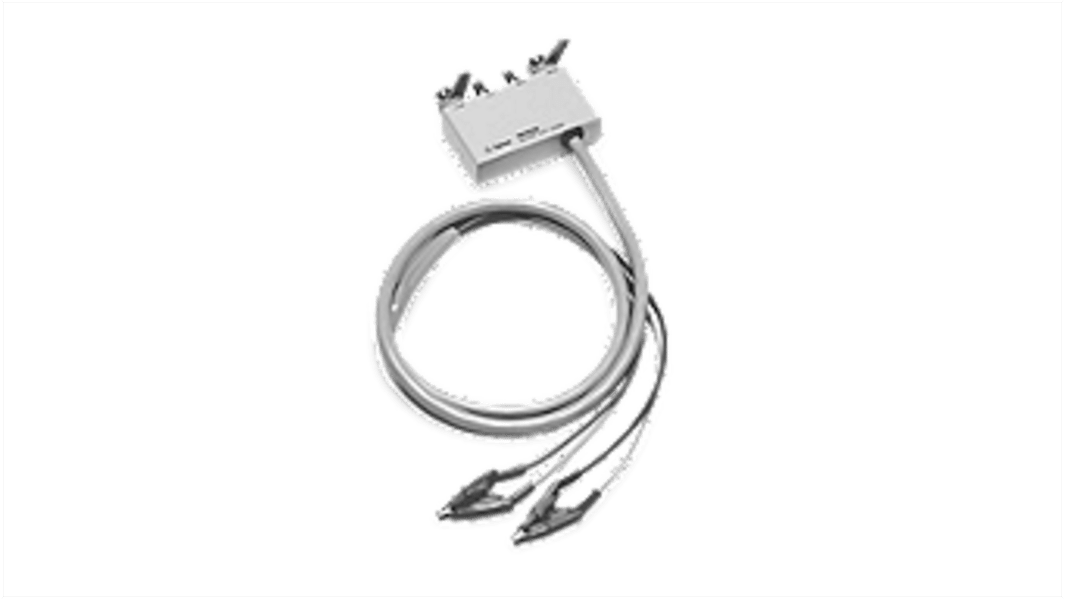

The Keysight Technologies 16089B this test fixture makes it possible to measure odd-shaped components that cannot be measured with conventional fixtures. It is equipped with two insulated Kelvin clips.
Open and short compensations are recommended before measurement
For open compensation, do not connect the Kelvin clips to anything
Short compensation is performed by connecting the Kelvin clips together
After performing open and short compensations, the DUT is held with the Kelvin clips
For open compensation, do not connect the Kelvin clips to anything
Short compensation is performed by connecting the Kelvin clips together
After performing open and short compensations, the DUT is held with the Kelvin clips
Note
Manufacturers Warranty
