Keysight Technologies LCR Meter Accessory for Use with E4980A/AL, E4990A, E4981A
- RS Stock No.:
- 245-5592
- Distrelec Article No.:
- 302-25-113
- Mfr. Part No.:
- 16047A
- Brand:
- Keysight Technologies
Subtotal (1 unit)*
£835.21
(exc. VAT)
£1,002.25
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £835.21 |
*price indicative
- RS Stock No.:
- 245-5592
- Distrelec Article No.:
- 302-25-113
- Mfr. Part No.:
- 16047A
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Product Type | LCR Meter Accessory | |
| Accessory Type | Lead | |
| For Use With | E4980A/AL, E4990A, E4981A | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Product Type LCR Meter Accessory | ||
Accessory Type Lead | ||
For Use With E4980A/AL, E4990A, E4981A | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- MY

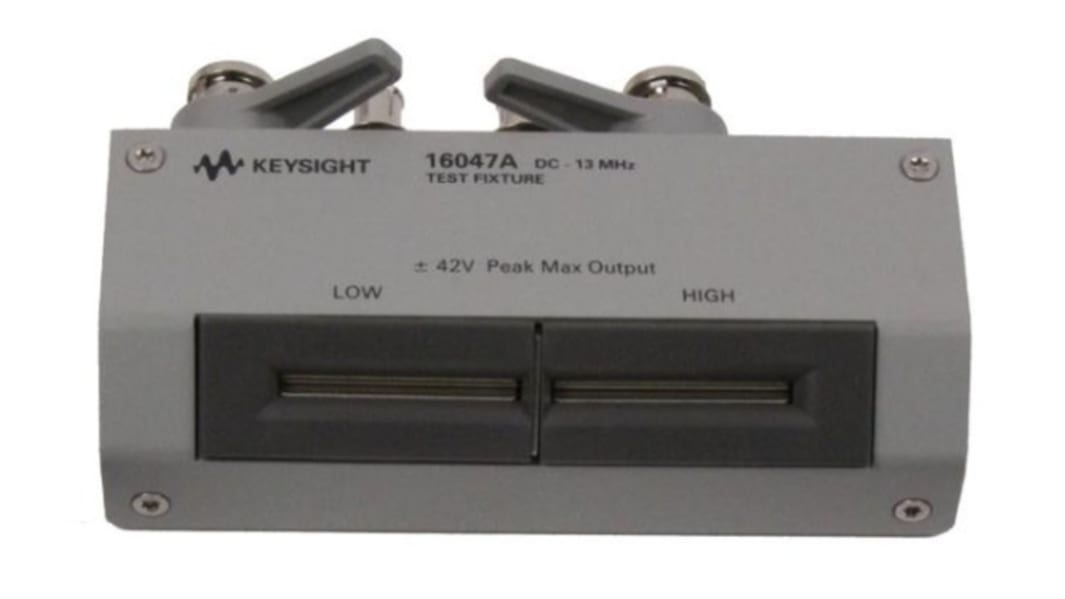

The Keysight Technologies 16047A is designed for impedance evaluation of axial/radial lead type devices. The 16047A employs Kelvin contacts which realize a wide impedance measurement range. The contact tip can be changed according to the device shape.
These modules suitable for the DUT’s shape
Open and short compensations are recommended before measurement
Short compensation is performed by shorting the contacts of the test fixture with a shorting plate
After performing open and short compensations, the DUT is connected to the test fixture
Note
Manufacturer’s Warranty
