AZ DISPLAYS INC ACM1602B-FL-GBS ACM1602B Alphanumeric LCD Display, Blue, Green, Grey, Yellow on Blue, Green, White,

View all LCD Monochrome Displays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
904-9051
Mfr. Part No.:
ACM1602B-FL-GBS
Brand:
AZ DISPLAYS INC
Find similar products by selecting one or more attributes.
Select all

Brand

AZ DISPLAYS INC

Display Type

Alphanumeric

Character Matrix

2 Rows by 16 Characters

Character Rows

2

Characters per Row

16

Viewing Area Width

64.5mm

Viewing Area Height

16.4mm

Viewing Area Dimensions

66 x 16mm

External Depth

13.5mm

Illumination Colour

Blue, Green, Grey, Yellow

Background Colour

Blue, Green, White, Yellow

Backlight Type

LED

External Width

84mm

External Height

44mm

External Dimensions

84 x 44 x 13.5mm

Controller Type

KS0066

Display Mode

Transflective

Display Matrix Technology

STN, TN

Minimum Operating Temperature

0 (Standard) °C, -20 (Wide) °C

Maximum Operating Temperature

+50 (Standard) °C, +70 (Wide) °C

Voltage Rating

5V

Series

ACM1602B

Operating Temperature Range

0 → +50 (Standard) °C, -20 → +70 (Wide) °C

Driver Mounting

Panel Mount

Current Rating

300mA

Non Compliant

COO (Country of Origin):
CN

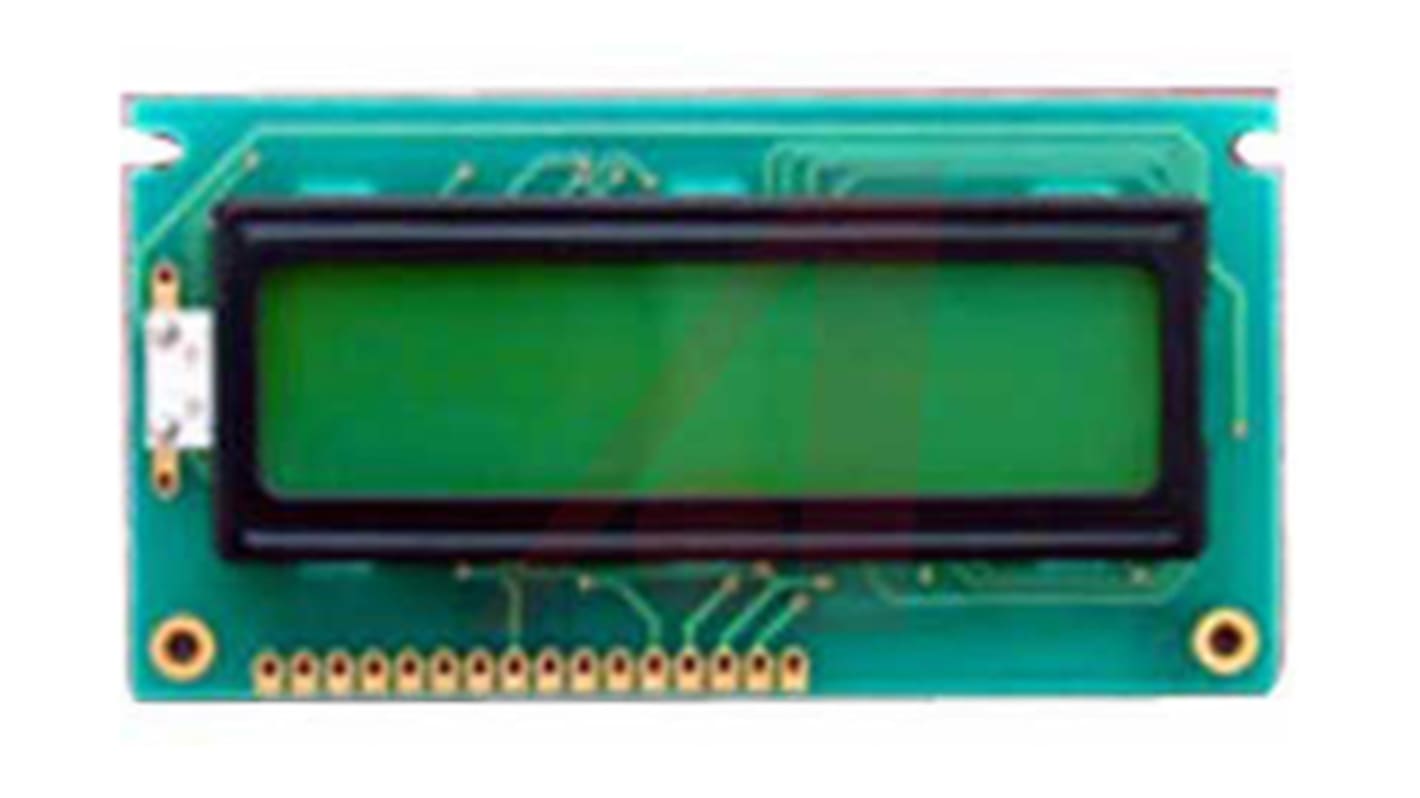

ACM1602B Series LCD Module


The ACM1602B series LCD module from AZ Displays Inc. Standard LCD character display module with LED backlighting.

16 Characters x 2 Lines
Transflective
Grey Mode STN


LCD Displays, AZ Displays Inc
