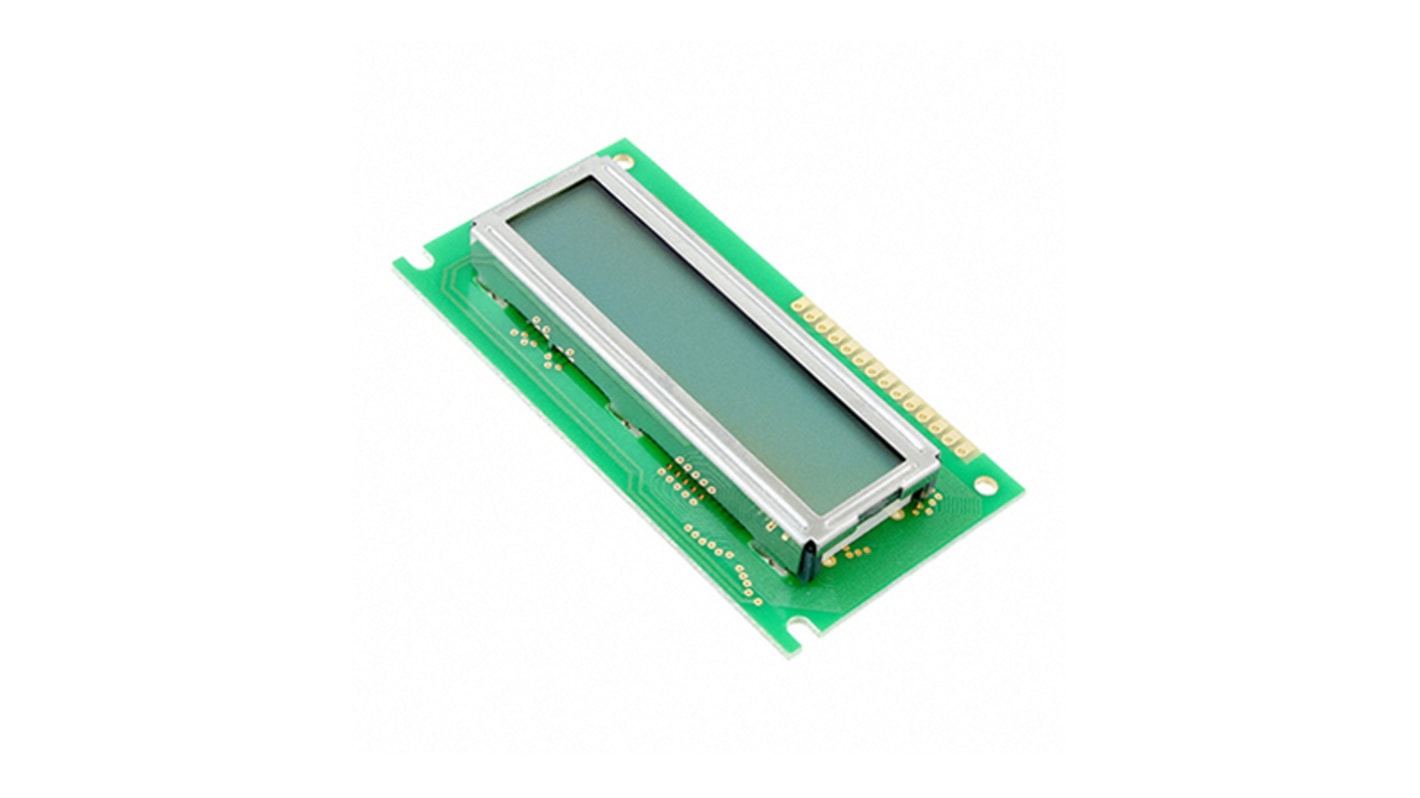

Lumex LCM-S01602DSF/B Alphanumeric LCD Display, 2 Rows by 16 Characters, Transflective
- RS Stock No.:
- 888-5676
- Mfr. Part No.:
- LCM-S01602DSF/B
- Brand:
- Lumex
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 888-5676
- Mfr. Part No.:
- LCM-S01602DSF/B
- Brand:
- Lumex
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumex | |
| Display Type | Alphanumeric | |
| Character Matrix | 2 Rows by 16 Characters | |
| Characters per Row | 16 | |
| Character Rows | 2 | |
| Character Width | 3mm | |
| Character Height | 5.6mm | |
| Viewing Area Width | 66mm | |
| Viewing Area Dimensions | 66 x 16mm | |
| Viewing Area Height | 16mm | |
| Interface Type | Parallel | |
| External Depth | 12.7mm | |
| Backlight Type | LED | |
| External Width | 84mm | |
| External Dimensions | 84 x 44 x 12.7mm | |
| External Height | 44mm | |
| Controller Type | LSI | |
| Display Matrix Technology | STN | |
| Display Mode | Transflective | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Voltage Rating | 4.6V | |
| Current Rating | 160mA | |
| Power Dissipation | 656mW | |
| Operating Temperature Range | 0 → +50°C | |
