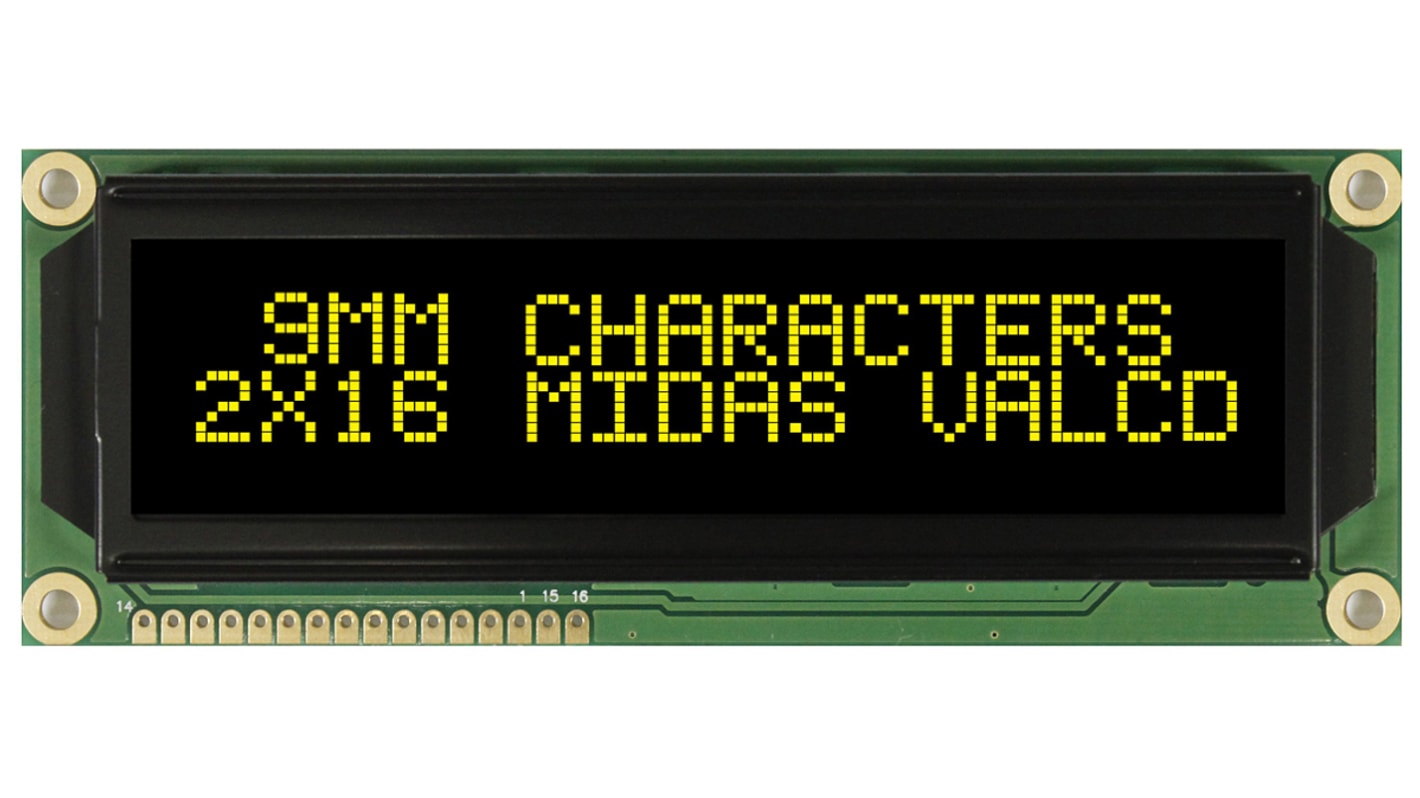

Midas MC21609A12W-VNMLY MC21609 Alphanumeric LCD Display Black, 2 Rows by 16 Characters, Transmissive

  • RS Stock No. 880-8518
  • Mfr. Part No. MC21609A12W-VNMLY
  • Brand Midas
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Midas Character COB LCD Displays

This series of character LCD displays, from Midas Displays, have chip-on-board (COB) mechanical construction. The LCD displays are available in 16, 20 and 40 character options with super twisted nematic (STN) or film compensated super twisted nematic (FSTN) technologies. Alternative appearances are created with positive and negative modes available in the COB LCD displays. The majority of character LCD controllers come with conventional interface equivalent to HD44780 and include standard on board character sets. In order to meet the demands of customer applications the COB LCD displays are available with a viewing angle of 6 o'clock.

Chip-on-board (COB) LCD display
Parallel interface
Operational temperature -20 to +70 °C
STN and FSTN display options

Midas Alphanumeric Displays

Specifications
Attribute Value
Display Type Alphanumeric
Character Matrix 2 Rows by 16 Characters
Character Rows 2
Characters per Row 16
Character Height 9.2mm
Character Width 4.8mm
Viewing Area Width 99mm
Viewing Area Dimensions 99 x 24mm
Viewing Area Height 24mm
External Depth 13.6mm
Background Colour Black
Backlight Type LED
External Width 122mm
External Height 44mm
External Dimensions 122 x 44 x 13.6mm
Display Mode Transmissive
Display Matrix Technology VATN
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Voltage Rating 5.5V
Current Rating 1.5mA
Series MC21609
Driver Mounting COB
Operating Temperature Range -20 → +70°C
14 In stock for FREE next working day delivery
Price Each
£ 12.01
(exc. VAT)
£ 14.41
(inc. VAT)
Units
Per unit
1 +
£12.01
