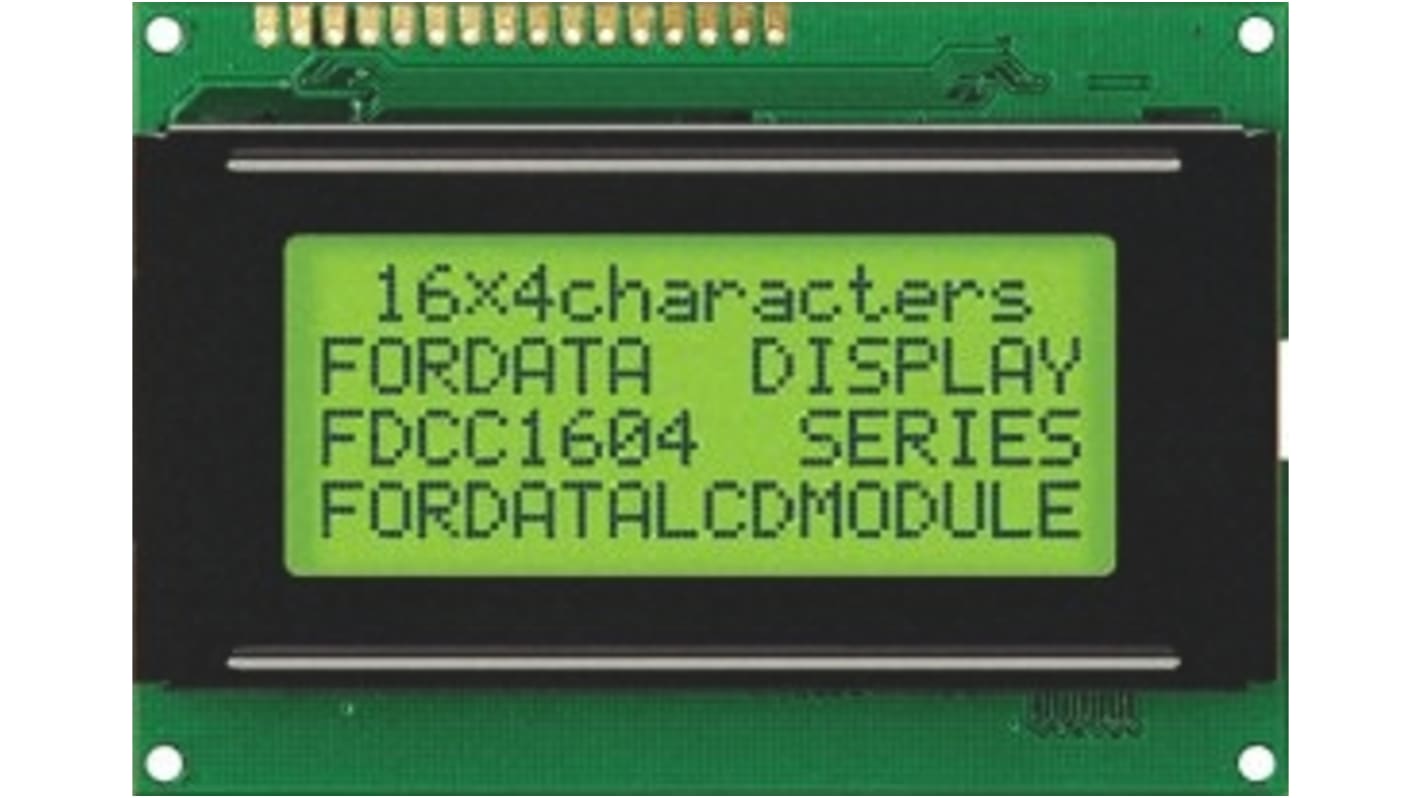

Fordata FDCC1604A-FLYYBW-51SE Alphanumeric LCD Display, Yellow on Green, 4 Rows by 16 Characters, Transflective
- RS Stock No.:
- 720-0216
- Mfr. Part No.:
- FDCC1604A-FLYYBW-51SE
- Brand:
- Fordata
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 720-0216
- Mfr. Part No.:
- FDCC1604A-FLYYBW-51SE
- Brand:
- Fordata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fordata | |
| Display Type | Alphanumeric | |
| Character Matrix | 4 Rows by 16 Characters | |
| Characters per Row | 16 | |
| Character Rows | 4 | |
| Character Width | 3mm | |
| Character Height | 4.8mm | |
| Viewing Area Dimensions | 61.8 x 25.2mm | |
| Viewing Area Height | 25.2mm | |
| Viewing Area Width | 61.8mm | |
| Illumination Colour | Yellow | |
| Background Colour | Green | |
| Backlight Type | LED | |
| External Width | 87mm | |
| External Height | 60mm | |
| External Dimensions | 60 x 87mm | |
| Controller Type | SPLC780D | |
| Display Mode | Transflective | |
| Display Matrix Technology | STN | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -20°C | |
| Voltage Rating | 5V | |
| Operating Temperature Range | -20 → +70°C | |
| Current Rating | 5mA | |
Select all | ||
|---|---|---|
Brand Fordata | ||
Display Type Alphanumeric | ||
Character Matrix 4 Rows by 16 Characters | ||
Characters per Row 16 | ||
Character Rows 4 | ||
Character Width 3mm | ||
Character Height 4.8mm | ||
Viewing Area Dimensions 61.8 x 25.2mm | ||
Viewing Area Height 25.2mm | ||
Viewing Area Width 61.8mm | ||
Illumination Colour Yellow | ||
Background Colour Green | ||
Backlight Type LED | ||
External Width 87mm | ||
External Height 60mm | ||
External Dimensions 60 x 87mm | ||
Controller Type SPLC780D | ||
Display Mode Transflective | ||
Display Matrix Technology STN | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Voltage Rating 5V | ||
Operating Temperature Range -20 → +70°C | ||
Current Rating 5mA | ||
- COO (Country of Origin):
- CH
Fordata Transflective Alphanumeric LCD Display STN
The transflective Fordata display series boasts an LED backlit LCD screen presenting crisp and clear text over a green background with a yellow illumination. Its STN display matrix technology enables the screen to function at less power and runs at just 5 V. The monochrome passive-matrix display has superior characteristics against its TN predecessor with a 180° to 270° twisted display molecule over the 90° twist in standard TN displays.
5 x 8 dots with cursor
Build-in controller
Power supply +5 V
1/16 duty cycle
Build-in controller
Power supply +5 V
1/16 duty cycle
Note
Reverse voltage polarity connection causes irreparable damage.
Caution
Observe ANTI-STATIC precautions when storing or handling these LCD modules.
