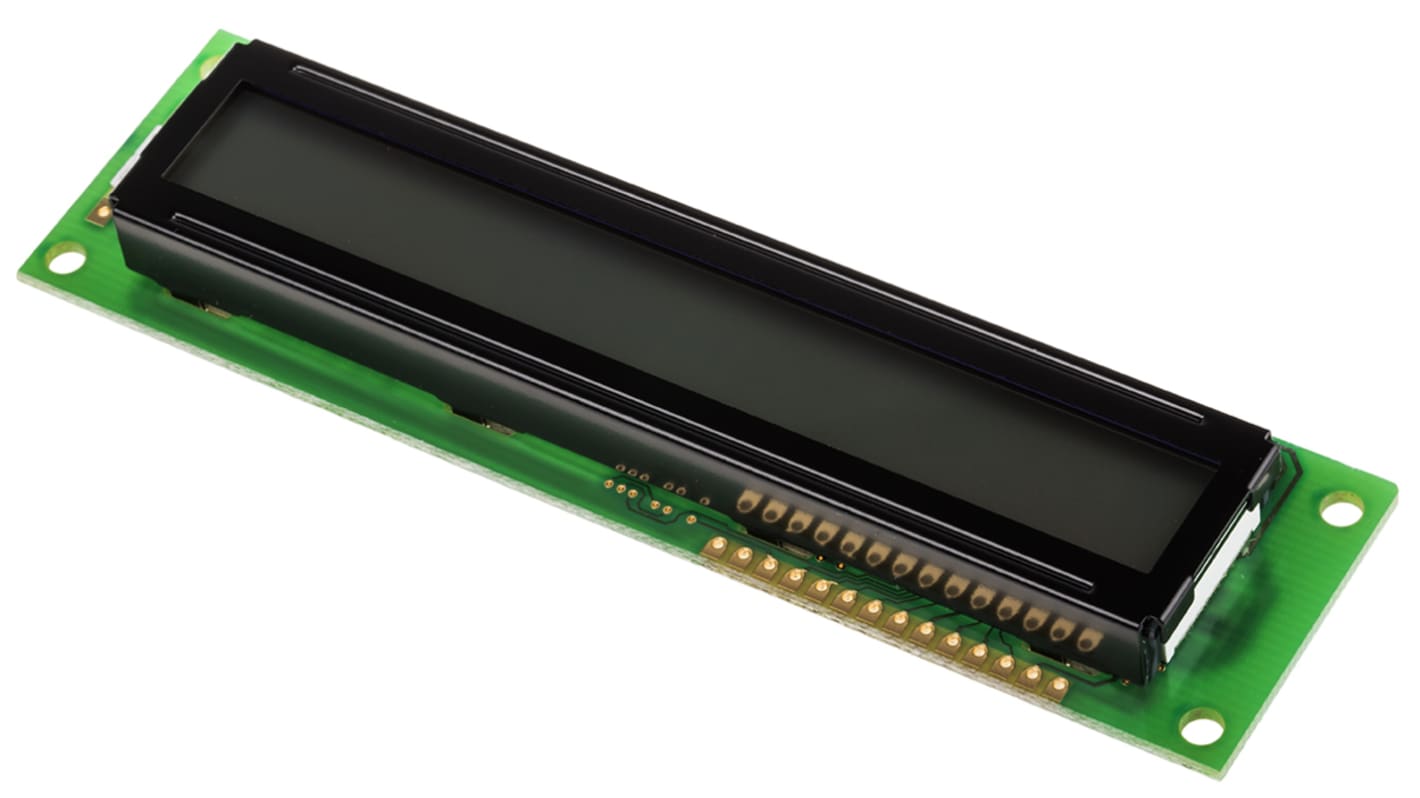

Powertip PC1601LRSL Alphanumeric LCD Display, 1 Row by 16 Characters, Transflective
- RS Stock No.:
- 294-8796
- Mfr. Part No.:
- PC1601LRSL
- Brand:
- Powertip
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£35.07
(exc. VAT)
£42.08
(inc. VAT)
- RS Stock No.:
- 294-8796
- Mfr. Part No.:
- PC1601LRSL
- Brand:
- Powertip
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Powertip | |
| Display Type | Alphanumeric | |
| Character Matrix | 1 Row by 16 Characters | |
| Character Rows | 1 | |
| Characters per Row | 16 | |
| Character Height | 4.8mm | |
| Character Width | 8.1mm | |
| Viewing Area Dimensions | 99 x 13mm | |
| Viewing Area Height | 99mm | |
| Viewing Area Width | 13mm | |
| Interface Type | 8-bit | |
| External Depth | 13.5mm | |
| Backlight Type | LED | |
| External Height | 122mm | |
| External Width | 33mm | |
| External Dimensions | 33 x 13.5 x 122mm | |
| Controller Type | ST7066U | |
| Display Mode | Transflective | |
| Display Matrix Technology | FSTN, STN, TN | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | 0°C | |
| Operating Temperature Range | 0 → +50°C | |
| Driver Mounting | COB | |
Select all | ||
|---|---|---|
Brand Powertip | ||
Display Type Alphanumeric | ||
Character Matrix 1 Row by 16 Characters | ||
Character Rows 1 | ||
Characters per Row 16 | ||
Character Height 4.8mm | ||
Character Width 8.1mm | ||
Viewing Area Dimensions 99 x 13mm | ||
Viewing Area Height 99mm | ||
Viewing Area Width 13mm | ||
Interface Type 8-bit | ||
External Depth 13.5mm | ||
Backlight Type LED | ||
External Height 122mm | ||
External Width 33mm | ||
External Dimensions 33 x 13.5 x 122mm | ||
Controller Type ST7066U | ||
Display Mode Transflective | ||
Display Matrix Technology FSTN, STN, TN | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature 0°C | ||
Operating Temperature Range 0 → +50°C | ||
Driver Mounting COB | ||
- COO (Country of Origin):
- CN
Powertip Transflective backlit LCD STN
Transflective (dark character on a light background) alphanumeric STN and TN dot matrix modules with integral green LED backlight and LCD display drivers
5x7 dot matrix format (except 16x1, which uses 5x10, and 20x4 and 40x4, which use 5x8) with cursor
160 characters and symbols
Wide viewing angle
Single +5V supply
CMOS controller and driver
Parallel interface to 4 or 8-bit microprocessor
Display commands: clear, shift, on/off, read, write
Cursor commands: home, address set
Operating temperature range 0°C to 50°C
160 characters and symbols
Wide viewing angle
Single +5V supply
CMOS controller and driver
Parallel interface to 4 or 8-bit microprocessor
Display commands: clear, shift, on/off, read, write
Cursor commands: home, address set
Operating temperature range 0°C to 50°C
Note
Reverse polarity connection to the module will cause irreparable damage.
Caution
Observe ANTISTATIC precautions when storing or handling these modules.
