Powertip PC2004LRS-A Alphanumeric LCD Display, 4 Rows by 20 Characters, Transflective
- RS Stock No.:
- 214-3553
- Mfr. Part No.:
- PC2004LRS-A
- Brand:
- Powertip
Discontinued
- RS Stock No.:
- 214-3553
- Mfr. Part No.:
- PC2004LRS-A
- Brand:
- Powertip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Powertip | |
| Display Type | Alphanumeric | |
| Character Matrix | 4 Rows by 20 Characters | |
| Character Rows | 4 | |
| Characters per Row | 20 | |
| Character Height | 3mm | |
| Character Width | 4.8mm | |
| Viewing Area Dimensions | 76 x 25mm | |
| Viewing Area Width | 25.2mm | |
| Viewing Area Height | 76mm | |
| Interface Type | 8-bit | |
| External Depth | 14mm | |
| Backlight Type | LED | |
| External Width | 98mm | |
| External Dimensions | 98 x 14 x 60mm | |
| External Height | 60mm | |
| Controller Type | ST7066U | |
| Display Matrix Technology | FSTN, STN, TN | |
| Display Mode | Transflective | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | 0°C | |
| Driver Mounting | COB | |
| Operating Temperature Range | 0 → +50°C | |
Select all | ||
|---|---|---|
Brand Powertip | ||
Display Type Alphanumeric | ||
Character Matrix 4 Rows by 20 Characters | ||
Character Rows 4 | ||
Characters per Row 20 | ||
Character Height 3mm | ||
Character Width 4.8mm | ||
Viewing Area Dimensions 76 x 25mm | ||
Viewing Area Width 25.2mm | ||
Viewing Area Height 76mm | ||
Interface Type 8-bit | ||
External Depth 14mm | ||
Backlight Type LED | ||
External Width 98mm | ||
External Dimensions 98 x 14 x 60mm | ||
External Height 60mm | ||
Controller Type ST7066U | ||
Display Matrix Technology FSTN, STN, TN | ||
Display Mode Transflective | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature 0°C | ||
Driver Mounting COB | ||
Operating Temperature Range 0 → +50°C | ||
- COO (Country of Origin):
- CN
Powertip Alphanumeric LCD

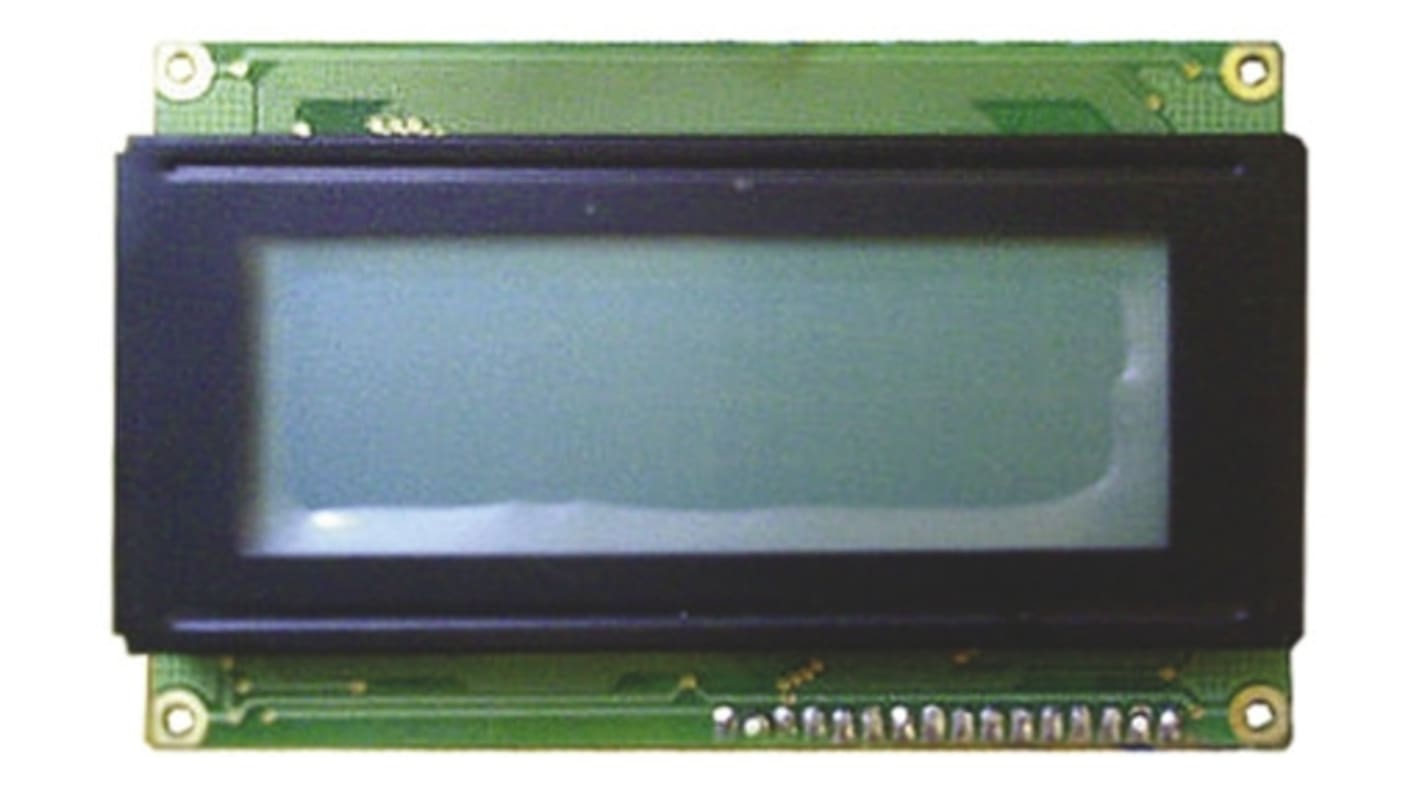

The Powertip alphanumeric LCD has a character matrix of 4 rows by 20 characters and transflective display mode. The viewing area for this display is 76mm of height and 25.2mm of width.
Note:
Reverse polarity connection to the module will cause irreparable damage.
Caution:
Observe anti-static precautions when storing or handling these LCD modules.
Note:
Reverse polarity connection to the module will cause irreparable damage.
Caution:
Observe anti-static precautions when storing or handling these LCD modules.
Features and Benefits
5 x 7 dot matrix format with cursor
160 characters and symbols
Display matrix technology is FSTN, STN, TN
Cursor commands are home, ON/OFF, shift and set direction
Display commands are clear, shift, ON/OFF, read and write
Parallel Interface to 4-bit or 8-bit microprocessor
Power supply is 5V
ST7066U controller
Wide viewing angle
Operating temperature is between 0°C and 50°C
160 characters and symbols
Display matrix technology is FSTN, STN, TN
Cursor commands are home, ON/OFF, shift and set direction
Display commands are clear, shift, ON/OFF, read and write
Parallel Interface to 4-bit or 8-bit microprocessor
Power supply is 5V
ST7066U controller
Wide viewing angle
Operating temperature is between 0°C and 50°C
